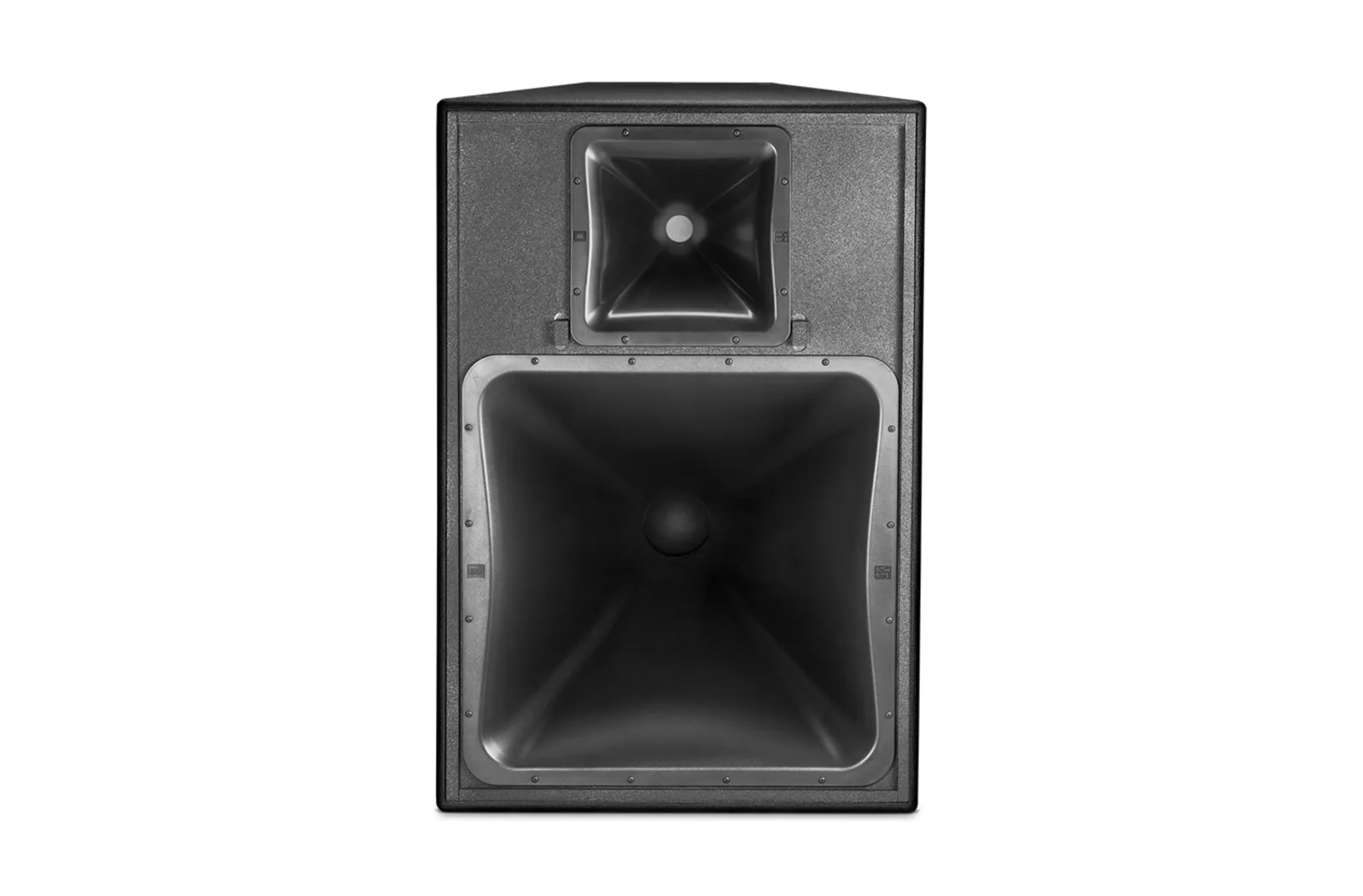

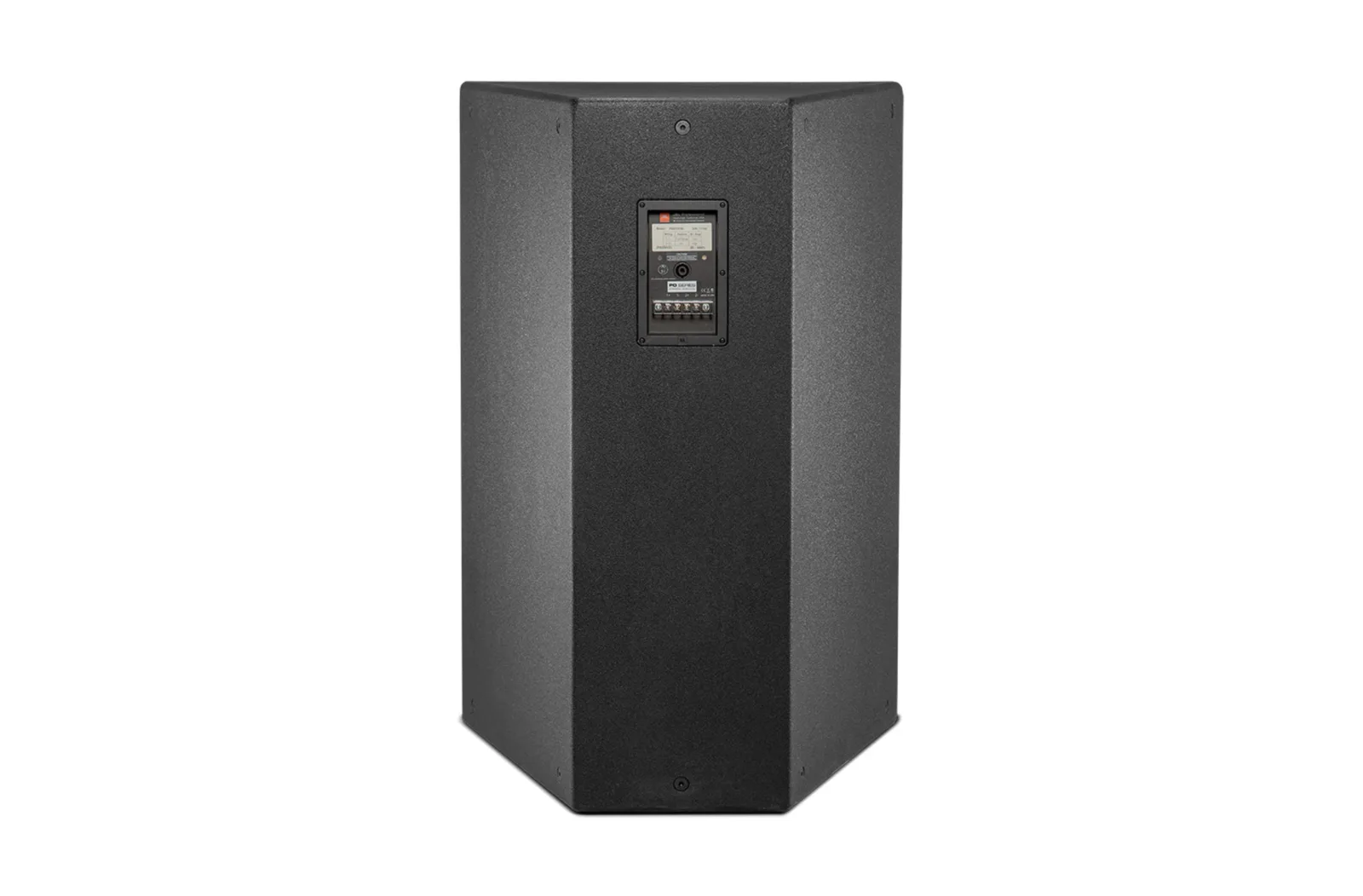

| Model | PD6212/66 |
|---|
| Frequency Range (-10dB) | 80 Hz to 18 kHz |
|---|
| Frequency Response (±3 dB) | 90 Hz to 16 kHz |
|---|
| Coverage Pattern | /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50° |
|---|
| Crossover Modes | Bi-amp / Passive switchable |
|---|
| Passive Crossover | 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz |
|---|
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs |
|---|
| System Power Rating | Passive Mode: 300 W (1200 W peak), 100 hrs |
|---|
| Maximum SPL (1m) | LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak) |
|---|
| System Sensitivity (1w @ 1m) | Passive Mode: 107 dB-SPL |
|---|
| LF Driver | M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil |
|---|
| HF Driver | 2453H, 38 mm (1.5 in) exit compression driver with 100 mm (4 in) voice coil |
|---|
| Nominal Impedance | 8 ohms |
|---|
| Enclosure | Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior |
|---|
| Suspension Attachment | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware |
|---|
| Finish | Black DuraFlex finish. White (-WH) available upon request. |
|---|
| Optional Weather Resistant Versions | WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. |
|---|
| Grille | Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam |
|---|
