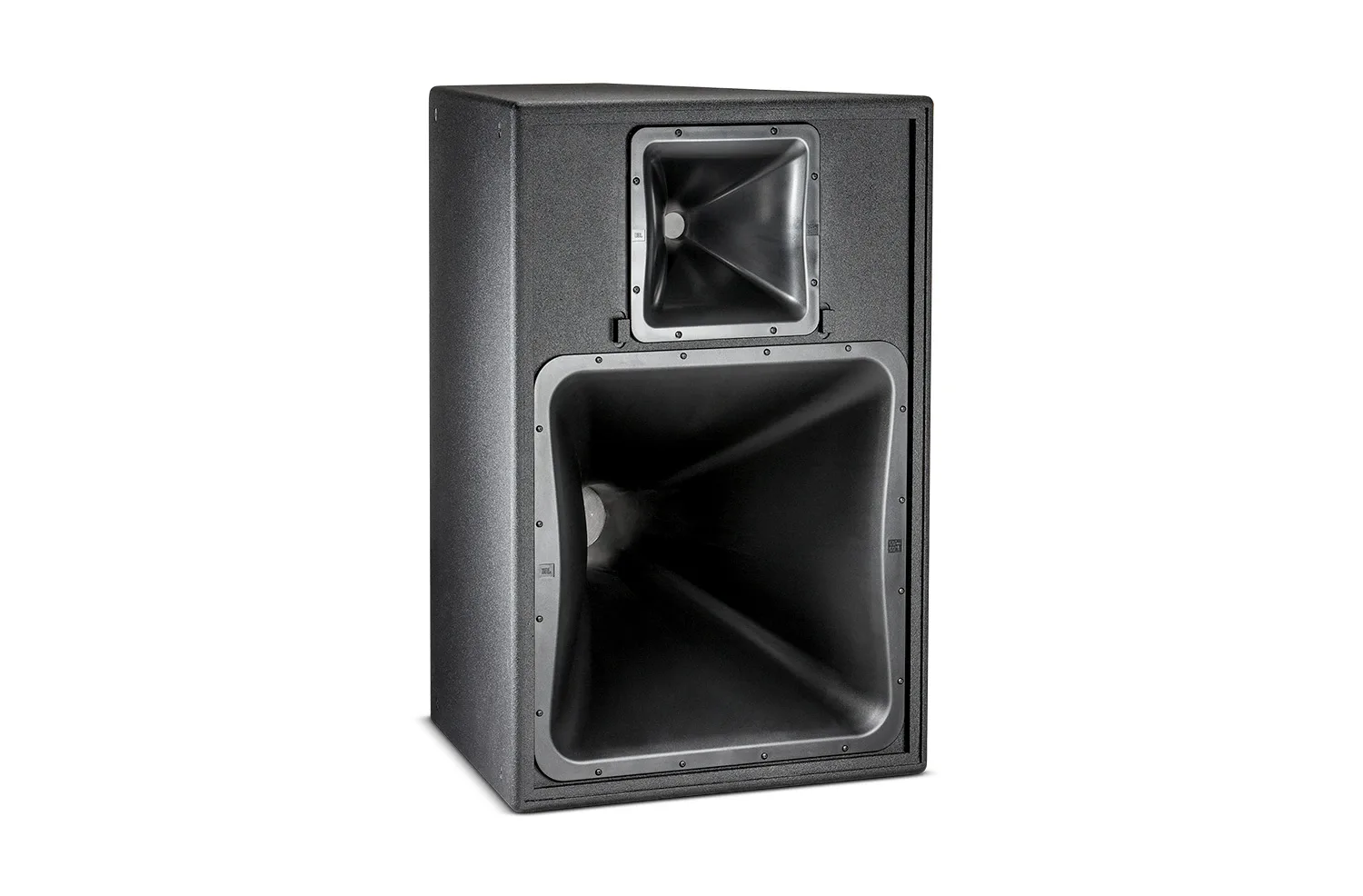

| Model | PD6200/64 |
|---|
| Frequency Range (-10dB) | 200 Hz to 18 kHz |
|---|
| Frequency Response (±3 dB) | 240 Hz to 16 kHz |
|---|
| Coverage Pattern | /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50° |
|---|
| Crossover Modes | Bi-amp / Passive switchable |
|---|
| Passive Crossover | 6th order (36 dB / oct) Linkwitz-Riley HP & LP, 1.7 kHz |
|---|
| Transducer Power Rating (AES) | MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs (AES rated) |
|---|
| System Power Rating | Passive Mode: 300 W (1200 W peak), 100 hrs. (IEC rated) |
|---|
| Maximum SPL (1m) | "Bi-amp mode: MF: 135 dB-SPL cont avg (141 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 135 dB-SPL cont avg (141 dB peak)" |
|---|
| System Sensitivity (1w @ 1m) | Passive Mode: 110 dB SPL |
|---|
| MF Driver | CMCD–82H cone mid-range compression driver with integral 200 mm (8 in) diameter Neodymium Differential Drive NDD dual voice coil driver |
|---|
| HF Driver | 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil |
|---|
| Nominal Impedance | 8 ohms |
|---|
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood |
|---|
| Suspension Attachment | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories). |
|---|
| Finish | Black DuraFlex finish. White (-WH) available upon request. |
|---|
| Optional Weather Resistant Versions | WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. |
|---|
