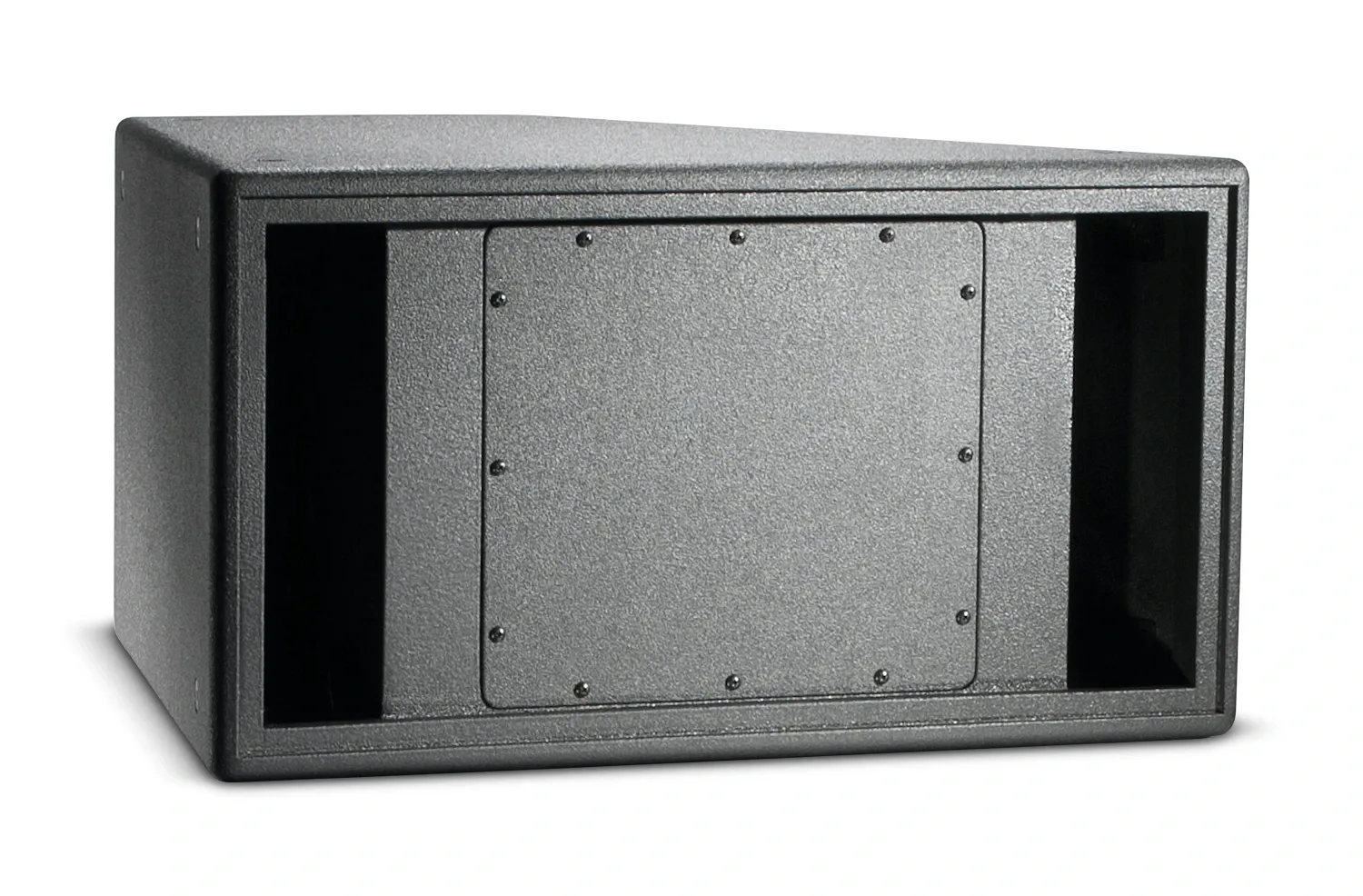

| Model | PD5122 |
|---|
| Frequency Range (-10dB) | 41 Hz to 1 kHz |
|---|
| Frequency Response (±3 dB) | 49 Hz to 300 Hz |
|---|
| Transducer Power Rating (AES) | 1600W (6400 W peak) 2 hrs |
|---|
| System Power Rating | P1200 W (4800 W peak), 100 hrs |
|---|
| Maximum SPL (1m) | 128 dB-SPL cont avg (134 peak) |
|---|
| Input Modes | Drivers Parallel / Drivers Discrete |
|---|
| Nominal Impedance | 4 ohms in parallel-drive mode |
|---|
| Sensitivity | 116 dB-SPL |
|---|
| LF Driver | 2 x JBL 2206H 300 mm (12 in) VGC drivers with 100 mm (4 in) voice coil with minimal power compression and low distortion |
|---|
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply |
|---|
| Waveguides | MF: PT-N64MF 600 x 600 mm (24 x 24 in) HF: PT-H64HF 300 x 300 mm (12 x 12 in) |
|---|
| Suspension Attachment | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories). |
|---|
| Finish | Black DuraFlex finish. White (-WH) available upon request. |
|---|
| Optional Weather Resistant Versions | WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments. |
|---|
| Grille | Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units) |
|---|
| Input Connectors | Neutrik Speakon NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through. |
|---|
