Features

JBL Digital Directivity Synthesis (DDS) Beam Shaping technology enables unrivaled vertical beam control with unlimited coverage possibilities

Superb speech intelligibility and music reproduction

Delivers high SPL output for sound reinforcement in large, expansive outdoor or indoor environments

Dual-redundant Dante audio connectivity plus analog line inputs

Integrated DSP with volume control, delay, eight-band parametric EQ, eight user-definable presets, compression, and automatic gain control

Built-in ambient sensing microphone

IP connectivity for control and management

Built-in redundancy and system monitoring features including automatic input switchover and pilot tone detection

Free WinControl software for setup, control, and monitoring

Simulation available with JBL DDA (Digital Directivity Analysis), as well as CATT-Acoustic, ODEON, and EASE

IP55 rated for weather-resistant installation

Attribute

Value

Model

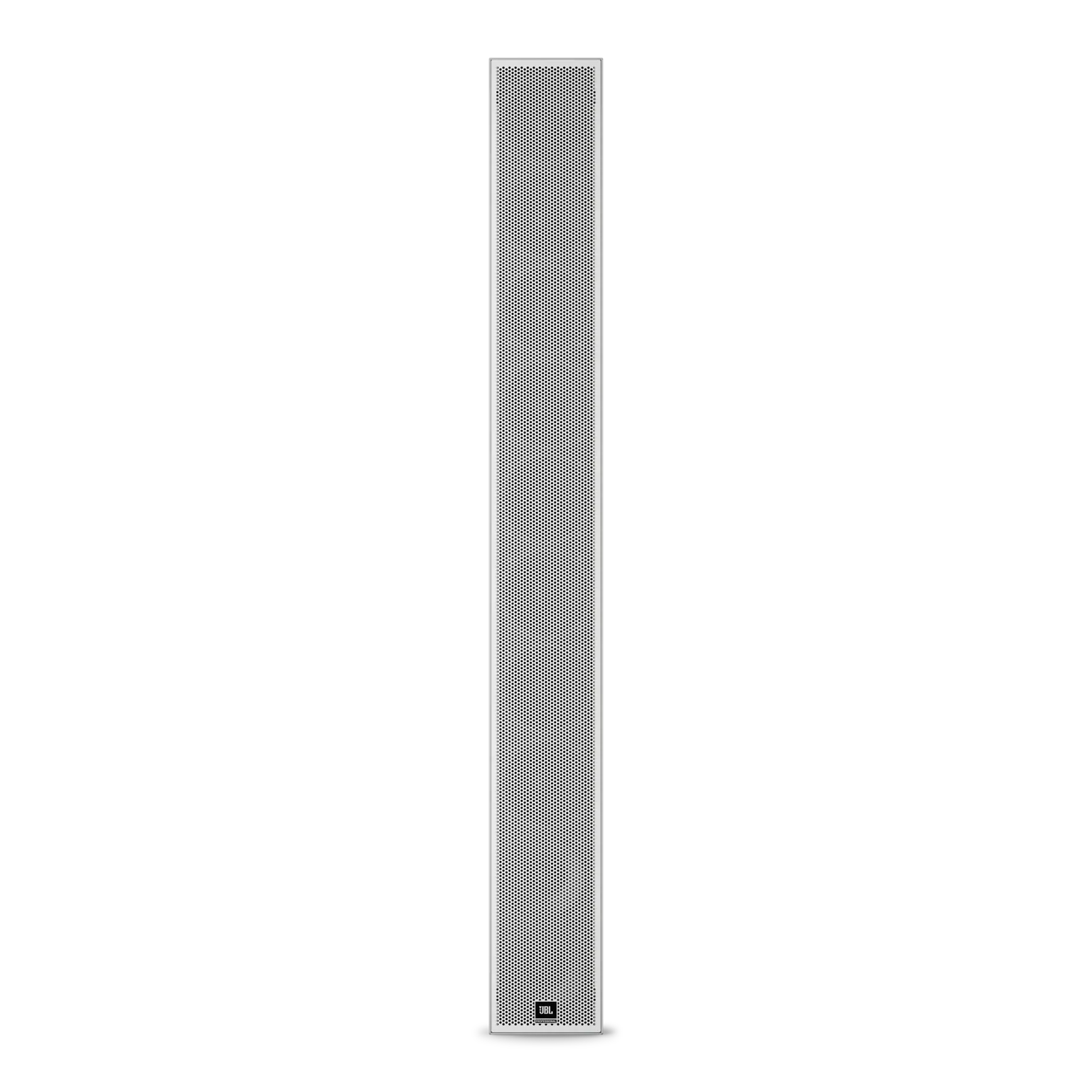

Intellivox HP-DS170D

Typical Maximum Throw

10-25 m / 33-82 ft

Maximum SPL (30m)

Continuous : 97 dB SPL Peak : 105 dB SPL

Frequency Response (+/-3 dB)

140Hz - 18kHz

Coverage Angle

Vertical beam shaping (via software) Horizontal: 100°

Drivers

10 x 6.5” full range 2 x 10 mm compression drivers

Digital Input

Dante

Analog Input

Balanced Line Level

Fault Monitoring

Failure Relay SPDT 100mA / 24V

AC Power

115V to 230V

Power Draw (Idle)

35VA

Power Draw (Full Load)

650VA

Dimensions

Height- 1698 mm / 66.9" Width- 198mm / 7.8" Depth- 189mm / 7.4" Weight- 56 kg / 123 lbs

Color

Enclosure and grill : RAL 9010 (white) Speaker baffle : RAL 9011 (black)
