Features

Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent.
Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and six (6) 165 mm (6-1/2”) high-excursion LF drivers arranged coaxially.
Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out of coverage lobing.
Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing.
Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room.
Single-speaker room coverage at high SPL, with little over-splash and strong bass response down to below 40 Hz.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Swivel (pan)/tilt wall bracket included.

Specifications

22 attributes

Attribute	Value
Model	CBT 1000
Drivers	Six (6) 165 mm (6.5 in) LF drivers Twenty-four (24) 25 mm (1 in) HF drivers
Frequency Range (-10dB)	45 Hz – 20 kHz
Sensitivity	102 dB (at highest sensitivity setting: “Point” pattern up, “Point” pattern down, “Speech” voicing, in free space); 95 dB (at lowest sensitivity setting: “Medium” pattern up,“Downfill” pattern down, “Music” voicing in free space)
Impedance	4 ohms (4 ohms above 1 kHz; 8 ohms below 800 Hz)
Power Capacity	1500 W (6000 W peak), 2 hrs; 900 W (3600 W peak), 100 hrs
Maximum Input Voltage	65.0 Volts RMS (2 hrs), 130.0 Volts Peak
Maximum SPL (1m)	Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Speech” voicing: 131 dB continuous average pink noise, 134 dB continuous program, 137 dB Peak
Coverage Angle	Vertical: Separate four top and four bottom selections, Horizontal: tapered 100° to 160°. Consult spec sheet for details
Recommended High-Pass	35Hz, 24 dB/oct or greater
Low Frequency Drivers	6 pcs, 165 mm (6.5 in) drivers, lightweight neodymium motors, 50 mm (2.0 in) diameter voice coils, copper-capped pole tips to minimize flux modulation and linearize inductance, 16 mm (0.63 in) long coil for high linear drive and high power handling, damped blended textile surround, coated cones for moisture, UV and salt resistance. Magnetically shielded.
High Frequency Drivers	24 pcs, 25 mm (1 in) drivers, neodymium, encased magnet and coated diaphragm for moisture, UV, and salt resistance.
Enclosure	Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille
Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 cover. ASTM G85 for acid-air/salt-spray (200 hrs.).

More Column Speakers

JBL Professional

JBL ADC-H90 Mark II

View details →

JBL Professional

JBL ADC-V90 Mark II

View details →

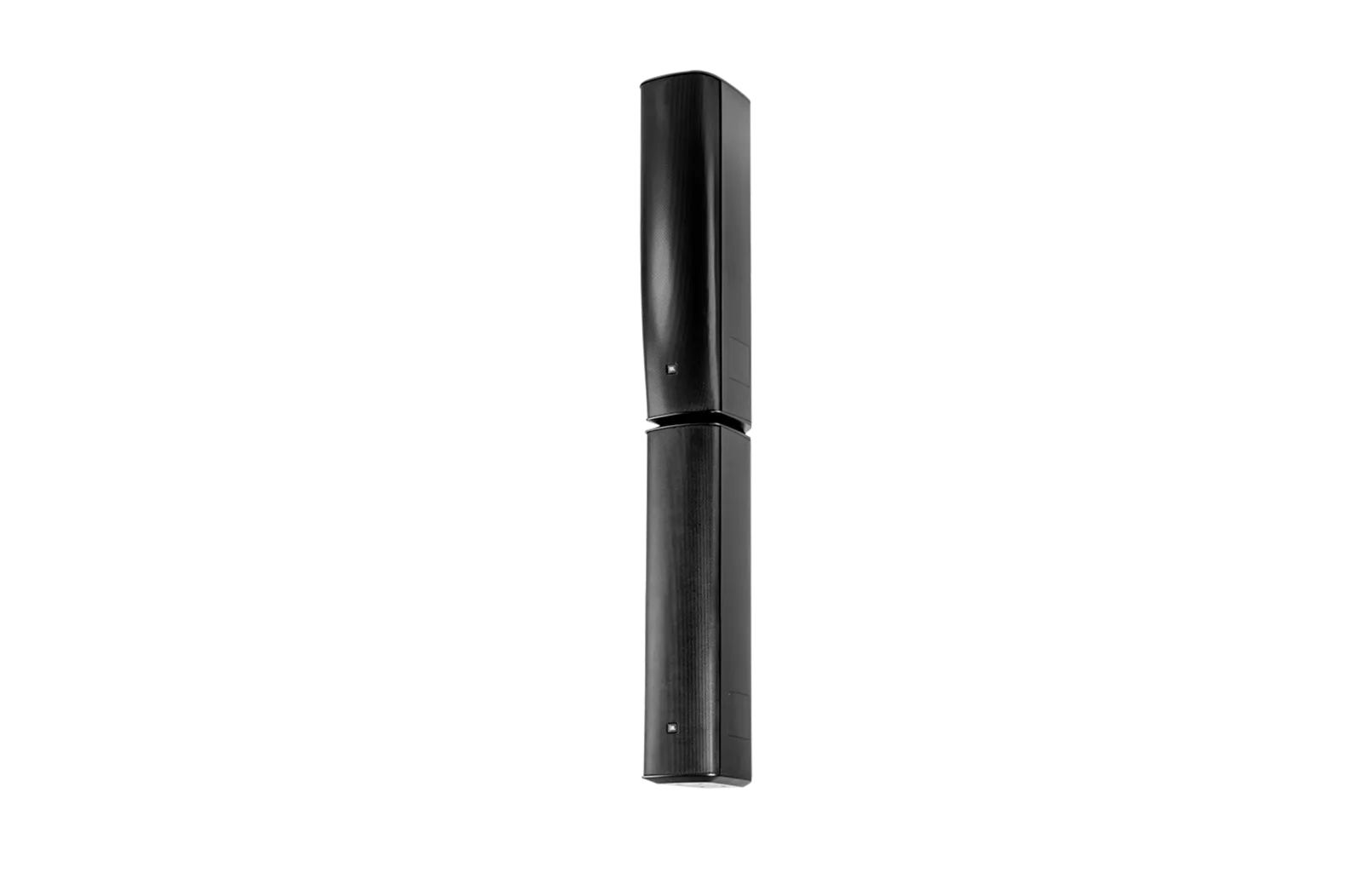

JBL CBT 1000 + CBT 1000E System — official product photo

More from JBL Professional

JBL Professional

JBL 8124

View details →

JBL Professional

JBL 8128

View details →

JBL Professional

Insert Points	14 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), forged-shoulder steel eyebolts, swivel rings, and after-market third-party brackets, plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps.

Mounting

Included two-part swivel (pan)/tilt wall bracket provides continuously variable +/- 45 degree left-right swivel aiming (at no up/down tilt – see Bracket Guide for maximum swivel range at various up/down tilt angles), +/- 15 degree tilt in 1 degree fixed increment points. Fourteen (14) threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount and other compatible third-party brackets. Four (4) threaded mount points on the top end-cap and four (4) on the bottom end-cap. Threaded mounting points can be utilized for suspension. (Always use multiple mounting points.)

Optional Accessories

MTC-PC2 terminal panel cover CBT1K-ACC1 Accessory kit includes: 2 pcs MTC-CBT-FM3 flush-mount brackets 1 pc MTC-CBT-OS3 offset bracket (for CBT 1000+1000E array – works in conjunction with CBT 1000E’s included Coupler Plate for locating CBT 1000E extension cabinet above CBT 1000 instead of below it) MTC-CBT-SUS3 CBT Series suspension bracket kit (2 pcs included to provide top and bottom attachment points)
