Features

JBL Digital Directivity Synthesis (DDS) Beam Shaping technology enables unrivaled vertical beam control with unlimited coverage possibilities

Superb speech intelligibility and high-fidelity music reproduction

Dual-redundant Dante audio connectivity plus analog line inputs

Integrated DSP with volume control, delay, eight-band parametric EQ, eight user-definable presets, compression, and automatic gain control

Built-in ambient sensing microphone

IP connectivity for control and management

Built-in redundancy and system monitoring features including automatic input switchover and pilot tone detection

Free WinControl software for setup, control, and monitoring

Simulation available with JBL DDA (Digital Directivity Analysis), as well as CATT-Acoustic, ODEON, and EASE

Attribute

Value

Model

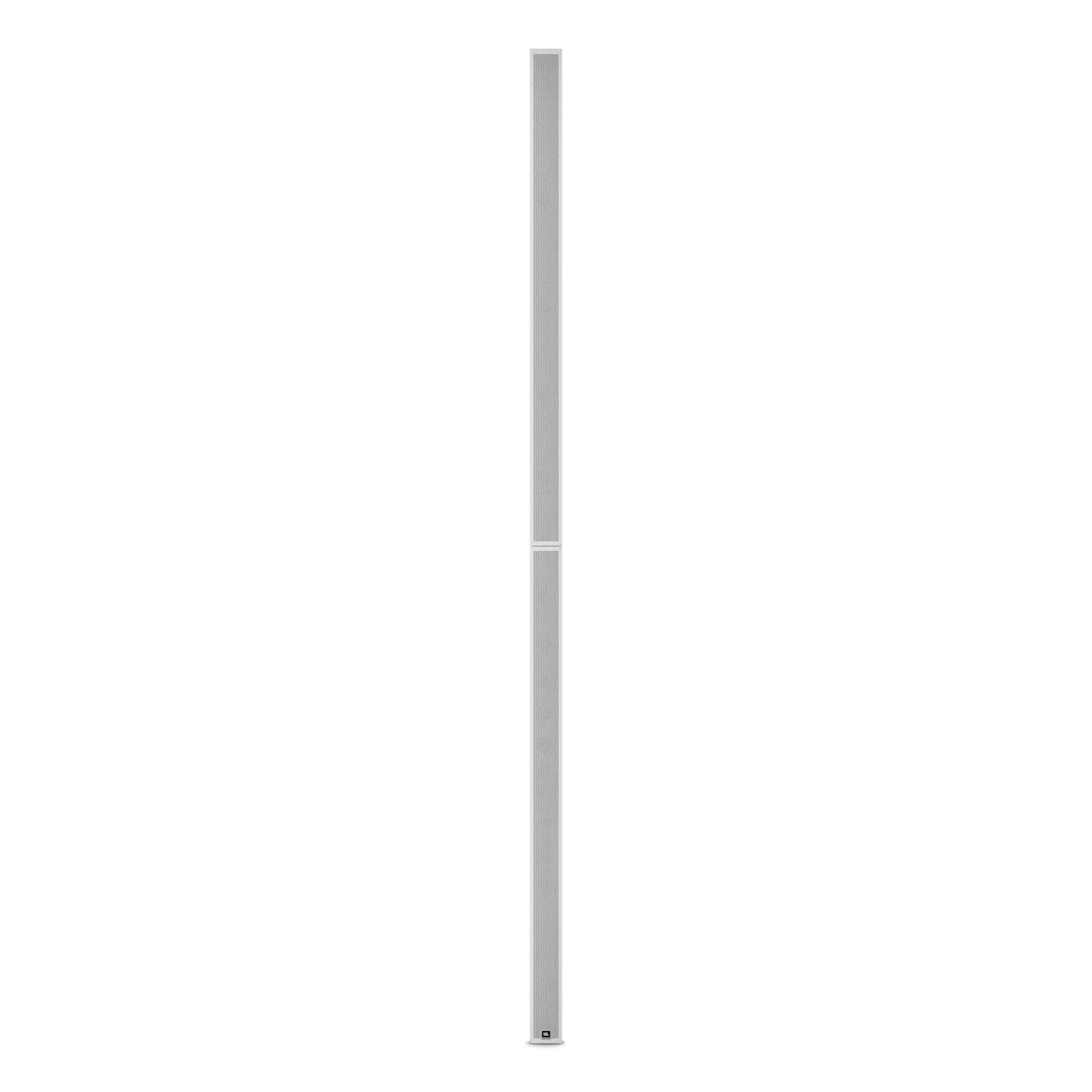

Intellivox DSX430D

Typical Maximum Throw

40-55 m / 131-181 ft

Maximum SPL (30m)

Continuous : 91 dB SPL Peak : 94 dB SPL

Frequency Response (+/-3 dB)

130Hz - 18kHz

Coverage Angle

Vertical beam shaping (via software) Horizontal: 130°

Drivers

13 x 4” full range 8 x 10 mm tweeter

Digital Input

Dante

Analog Input

Balanced Line Level

Fault Monitoring

Failure Relay SPDT 100mA / 24V

AC Power

115V to 230V

Power Draw (Idle)

84VA

Power Draw (Full Load)

75VA

Dimensions

Height- 4350mm / 171.3" Width- 134mm / 5.3" Depth- 92mm / 3.6" Weight- 37 kg / 81.5 lbs

Color

Enclosure and grill : RAL 9010 (white) Speaker baffle : RAL 9011 (black)
