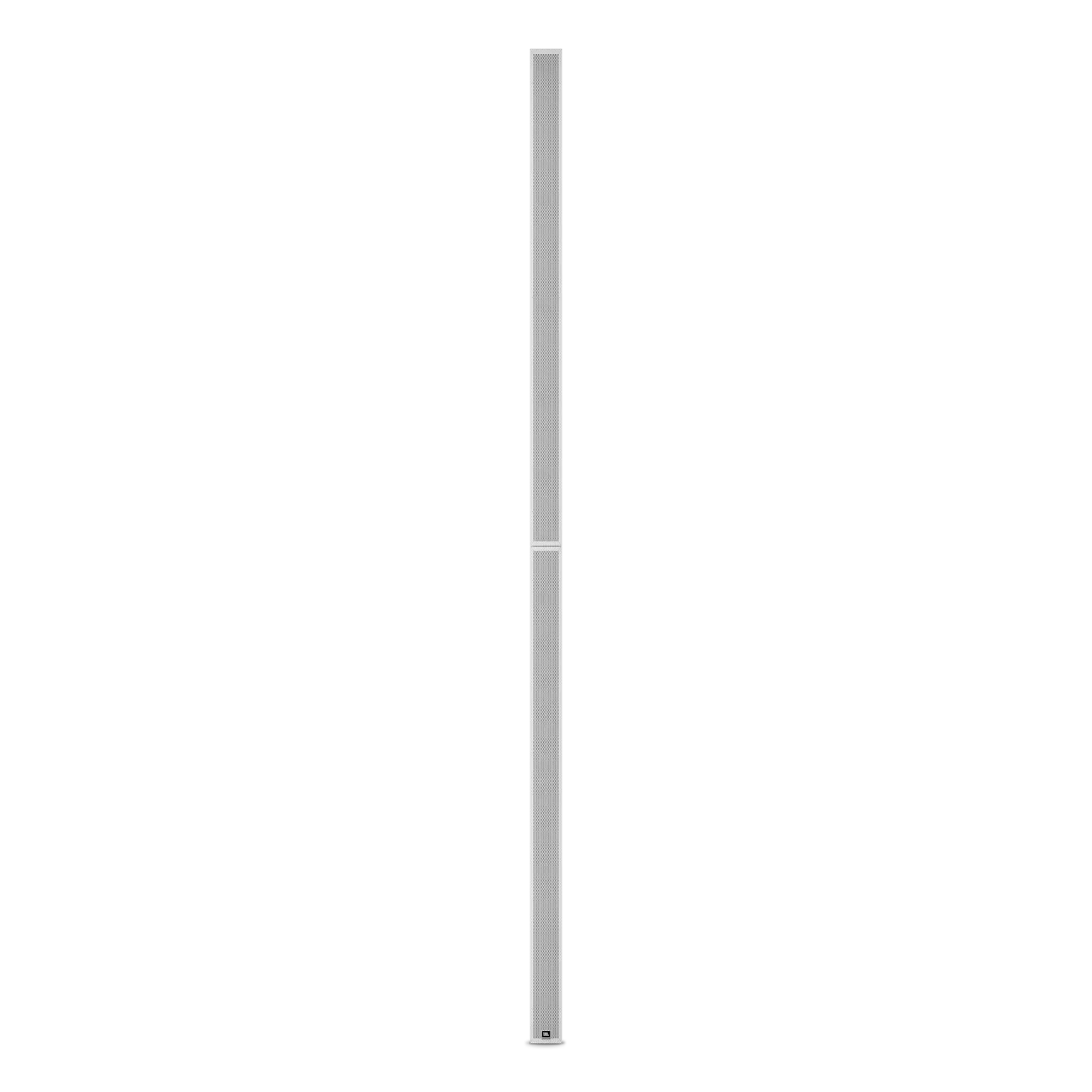

JBL Intellivox DS430D 4.30m Active Digital Beam Shaping Column Loudspeaker Array | Sai Enterprises AV Solutions

Features

JBL Digital Directivity Synthesis (DDS) Beam Shaping technology enables unrivaled vertical beam control with unlimited coverage possibilities
Superb speech intelligibility
Dual-redundant Dante audio connectivity plus analog line inputs
Integrated DSP with volume control, delay, eight-band parametric EQ, eight user-definable presets, compression, and automatic gain control
Built-in ambient sensing microphone
IP connectivity for control and management
Built-in redundancy and system monitoring features including automatic input switchover and pilot tone detection
Free WinControl software for setup, control, and monitoring
Simulation available with JBL DDA (Digital Directivity Analysis), as well as CATT-Acoustic, ODEON, and EASE

Specifications

14 attributes

Attribute	Value
Model	Intellivox DS430D
Typical Maximum Throw	40-55 m / 131-181 ft
Maximum SPL (30m)	Continuous : 92 dB SPL Peak : 95 dB SPL
Frequency Response (+/-3 dB)	130Hz - 10kHz
Coverage Angle	Vertical beam shaping (via software) Horizontal: 130°
Drivers	17 x 4” full range
Digital Input	Dante
Analog Input	Balanced Line Level
Fault Monitoring	Failure Relay SPDT 100mA / 24V
AC Power	115V to 230V
Power Draw (Idle)	84VA
Power Draw (Full Load)	750VA
Dimensions	Height- 4350mm / 171.3" Width- 134mm / 5.3" Depth- 92mm / 3.6" Weight- 37 kg / 81.5 lbs
Color	Enclosure and grill : RAL 9010 (white) Speaker baffle : RAL 9011 (black)
