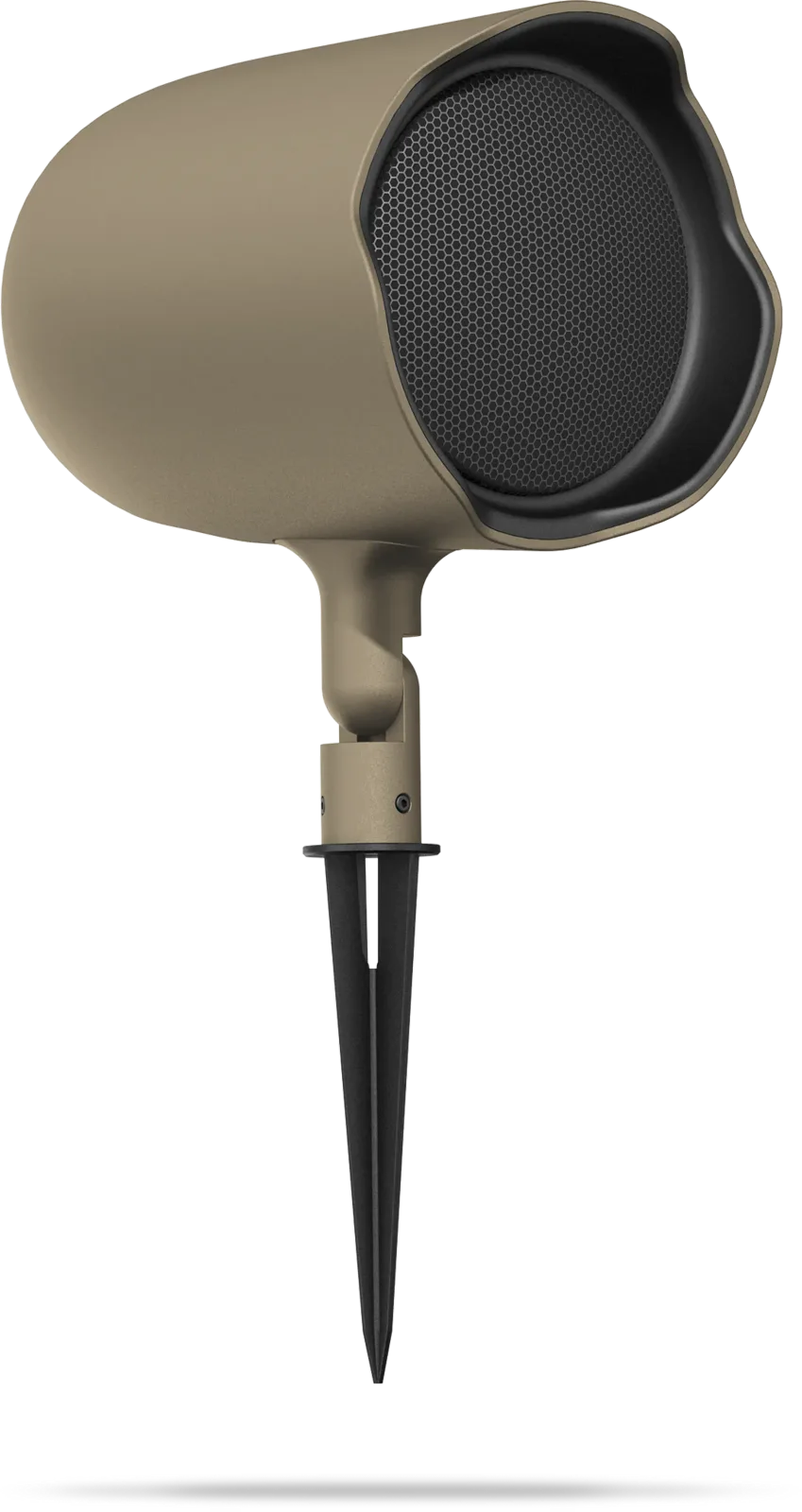

View larger image of JBL GSF6 — official product photo
16 attributes
| Attribute | Value |
|---|---|
| Model | GSF6 |
| Frequency Range (-10dB) | 65 Hz – 20 kHz |
| Frequency Response (+/-3 dB) | 90 Hz - 18 kHz |
| Power Rating | 100 W Continuous Program (2 hrs) 50 W (200 W Peak), Continuous Pink Noise (2 hrs) 30 W (120 W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 87 dB (ave. 300 kHz – 12 kHz) |
| Maximum SPL | 110 dB peak (104 dB continuous, 2 hr) @ 1m |
| Coverage Pattern | 70° conical |
| Nominal Impedance | 8 Ω (at 8Ω tap) |
| Transformer Taps | 70V: 30 W, 15 W, 7.5 W 100V: 30W, 15 W |
| Drivers | 165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminum voice coil former 25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton voice coil former |
| Terminals | Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Pine Green RAL 6028, or Beige Grey RAL 7006 |
| Dimensions | Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in). Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 (21.5 in) with ground stake base. |
| Net Weight | 3.5 kg (7.7 lbs) |
| Included Accessories | (1) Ground Stake Bracket; (1) L-Bracket |
