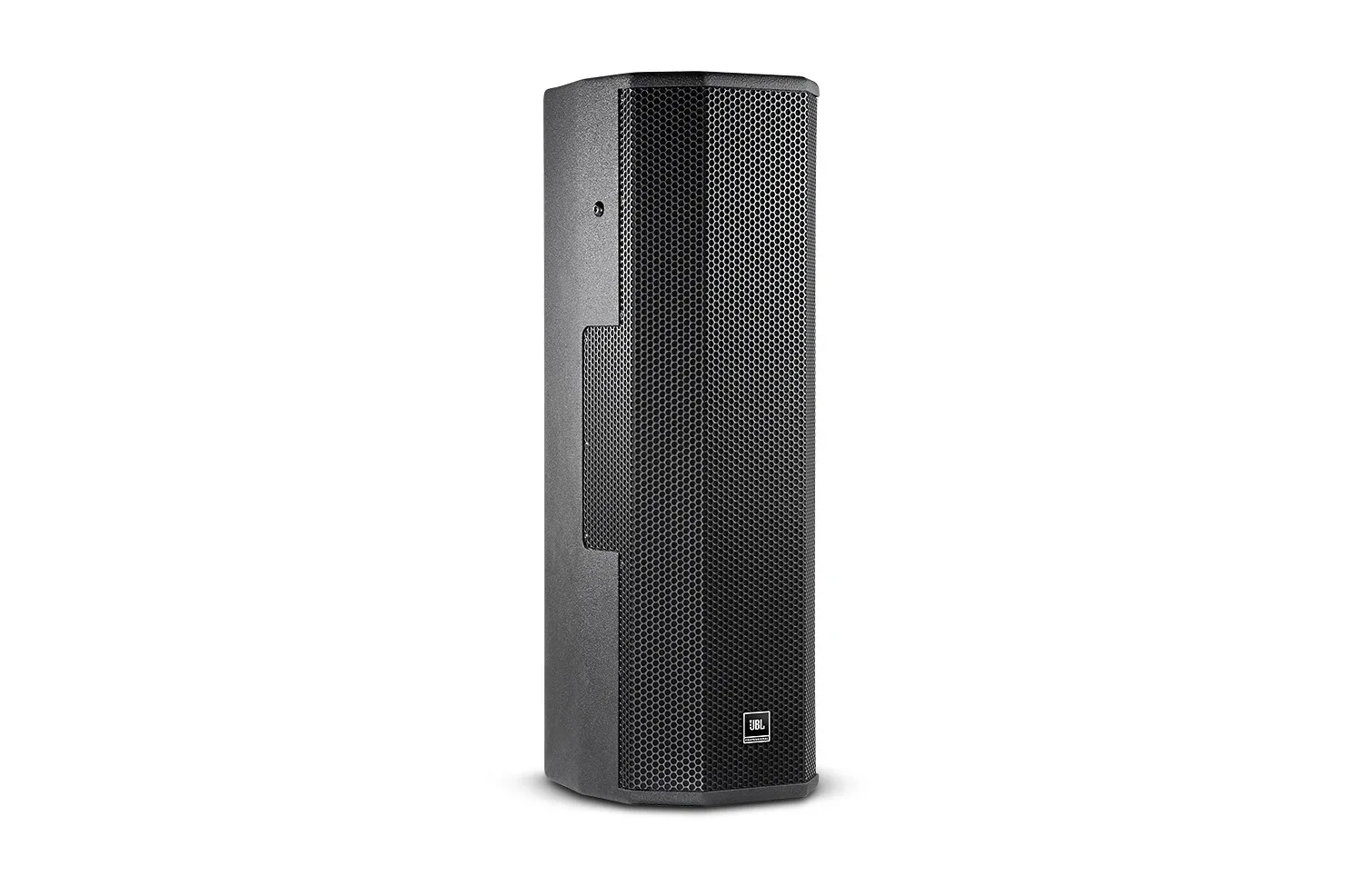

View larger image of JBL CWT128 — official product photo
23 attributes
| Attribute | Value |
|---|---|
| Model | CWT128 |
| System Format | Extremely Wide Angle Coverage Dual 8" 2-Way Loudspeaker System |
| Frequency Range (-10dB) | 71 Hz - 20 kHz |
| Frequency Response (±3 dB) | 96 Hz - 19 kHz |
| Coverage Pattern | 160° x 60° |
| Maximum SPL (1m) | 129 dB |
| System Nominal Impedance | 8 Ohms |
| Long-Term System Power Rating | 450W (1800W Peak) |
| System Power Rating | 850W/1700W/3400W Continuous/Program/Peak |
| Crossover | 1.5 kHz |
| LF Driver | 2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil |
| HF Driver | 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil |
| High-Frequency Waveguide | Crossfired Waveguide |
| Finish | Black DuraFlex finish. White (-WH) available upon request |
| Dimensions (w x h x d) | 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in) |
| Net Weight (each) | 18.6 kg (40.9 lb) |
| Crossover Modes | Passive |
| System Sensitivity (1w @ 1m) | 94 dB SPL |
| Nominal LF Driver Impedance | 8 Ohms |
| Transformer Taps | 70V: 110W, 55W, *28W 100V: 110W & 55W |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M10 (1 x M10 points, one top, one bottom, plus 1 x M10 point on each side panel.) 4 x M8 rear for MultiMount MM-120-BT |
|---|
| Environmental | Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX. |
|---|
