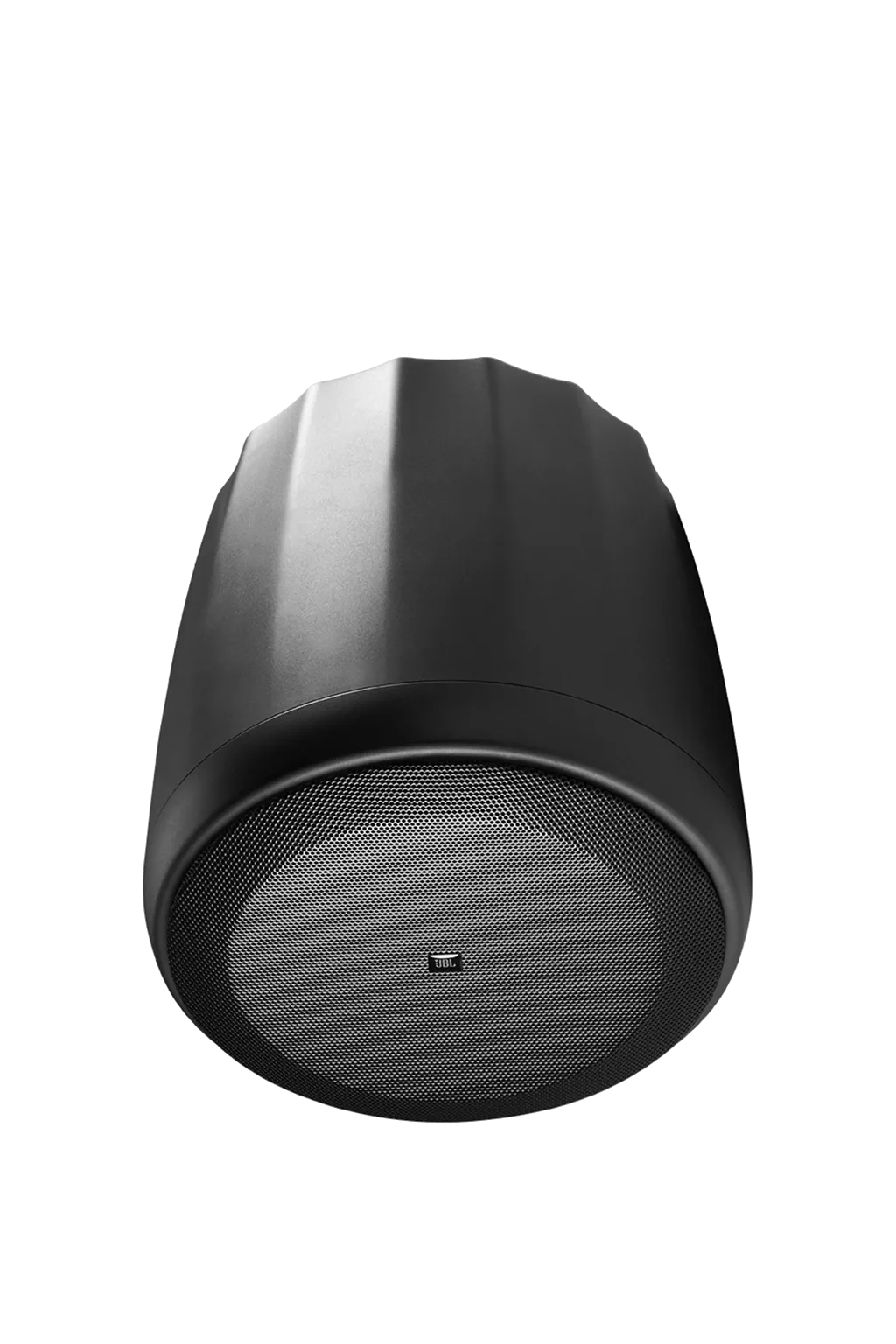

View larger image of JBL Control 68HP — official product photo
19 attributes
| Attribute | Value |
|---|---|
| Model | Control 68HP |
| Frequency Range (-10dB) | 52 Hz - 17 kHz |
| Frequency Response (+/-3 dB) | 72 Hz - 16 kHz |
| Power Rating | 150 Watts Continuous Pink Noise Power (600 Watts peak, 100 hrs) 250 Watts Continuous Pink Noise Power (1000 Watts peak, 2 hrs) 500 Watts Continuous Program Power (2 hr) |
| Sensitivity | 90 dB |
| Maximum SPL | 114 dB continuous pink noise, 120 dB peak |
| Coverage Angle | 110° conical |
| Directivity Factor (Q) | 7.8 |
| Directivity Index (DI) | 8.9 dB |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70V: 68W, 34W, 17W, & 8.5W 100V: 68W, 34W, 17W |
| Drivers | 209 mm (8 in) Kevlar(tm) reinforced cone, 50 mm (2 in) CCAW voice coil on fiberglass voice coil former 25 mm (1.0 in) compression driver, titanium dome, ferrite magnet assembly, Kapton(tm) voice coil former, CCAW voice coil on fiberglass voice coil former |
| Terminals | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Enclosure Material | High impact polystyrene |
| Color | Black or white |
| Dimensions | 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket |
| Net Weight | 7.5 kg (16.5 lbs) |
| Shipping Weight | 17.2 kg (38.0 lbs) |
| Included Accessories |
|---|
| Two suspension cable systems, two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. |
