Features

Components: 165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround. 25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.

High-slope crossover for natural midrange sound.

Extended bandwidth performance of 38 Hz – 20 kHz.

50W continuous (100W program, 200W peak) power handling (126W).

Attribute

Value

Model

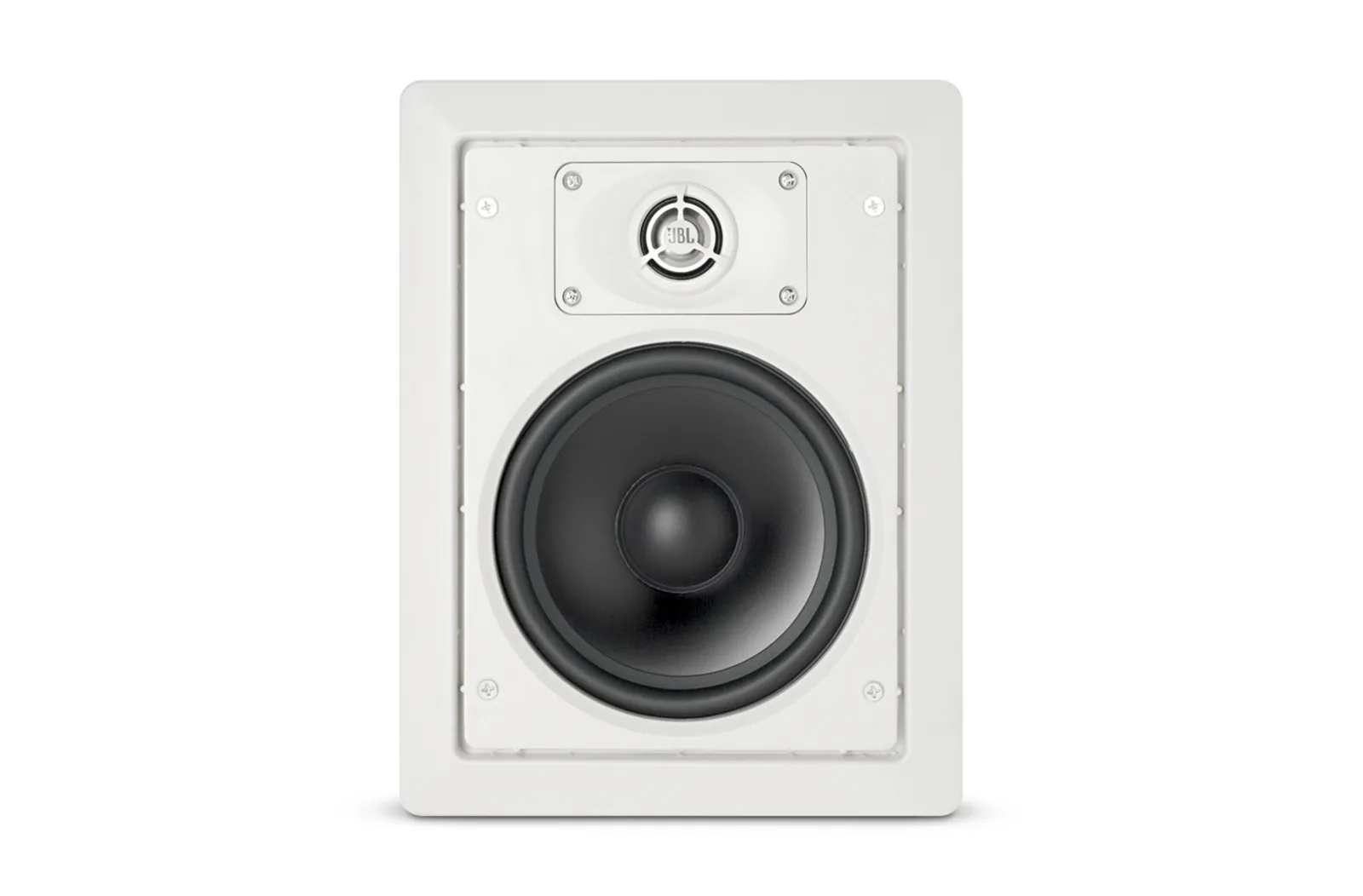

Control 126 WT

Frequency Range

38 Hz - 20 kHz (-10 dB)

Power Rating

200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise

Transformer Taps

70 V: 30 W, 15 W, 7.5 W & 3.7 W taps

Sensitivity

88 dB SPL

Coverage Angle

180°H x 160°V

Impedance

8 ohms

Drivers

LF: 165 mm (6.5 in) polymer-coated aluminum cone. HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.

Input Connectors

Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2

Crossover Network

3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.

Optimum Air Cavity Behind Speaker

20 to 40 liters (0.7 to 1.4 cu ft)

Outside Dimensions (H x W x D)

280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.

Maximum Wall Thickness

2 mm (1.25 in)

Cutout Size (H x W)

246 x 181 mm (9.7 x 7.2 in),
