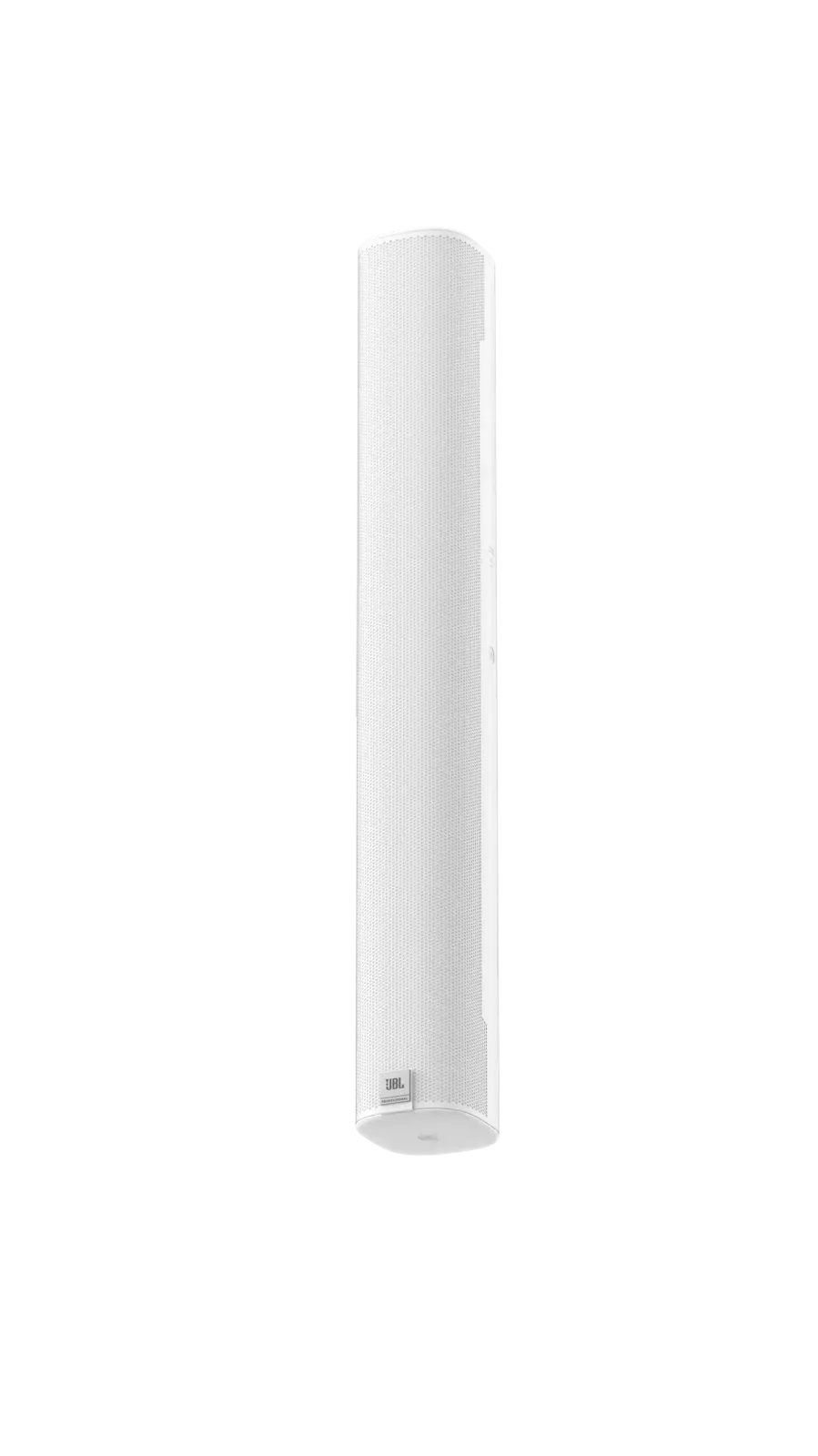

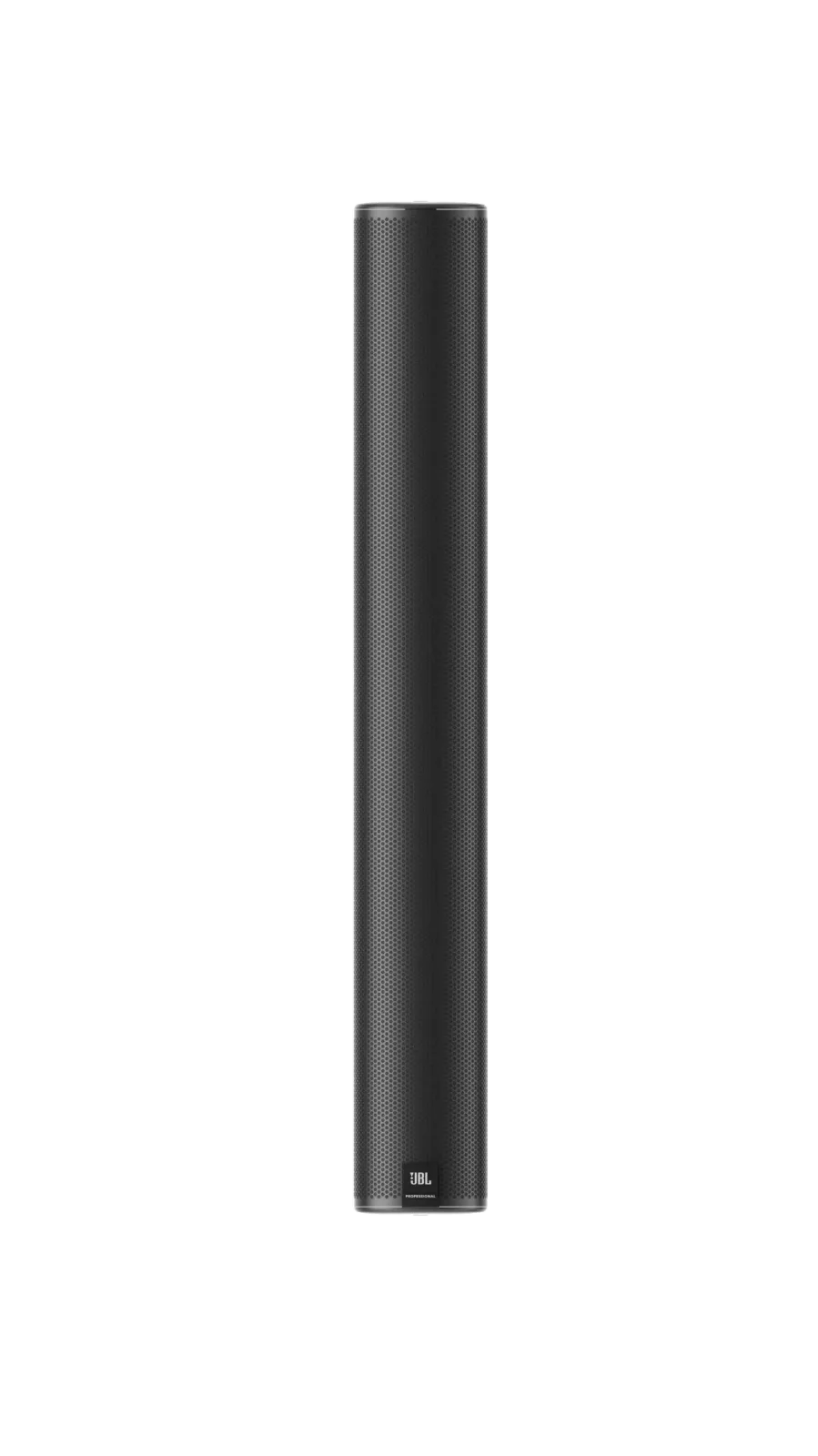

JBL COL600 COL600 Slim Column Loudspeaker | Sai Enterprises AV Solutions

Features

Two 5 x 2.25 inch racetrack woofers & one 1 inch tweeter
24 inch tall with shallow 3.7 inch cabinet depth
Wide 160° horizontal and focused 110° vertical coverage
10° downward tilt to aim for covering most listening areas without requiring physical down- tilting of the cabinet
80W continuous pink noise power handling (320W peak)
70 Hz – 20 kHz frequency range
Built-in 20W 70V/100V multi-tap transformer, plus 8 ohm direct input.
111 dB peak SPL (105 dB continuous), 2 hrs
Tweeter near top of column for unobstructed coverage of listening space
Versatile mounting brackets included – both

Specifications

28 attributes

Attribute	Value
Model	COL600
Frequency Range (-10 dB)¹	70 Hz – 20 kHz
Frequency Response (+/-3 dB)	105 Hz – 20 kHz
Power Rating (8Ω setting)2	160W Continuous Program (2 hrs) 80W (320W peak) Continuous Pink Noise (2 hrs) 60W (240W peak) Continuous Pink Noise (100 hrs)
Sensitivity (2.83V @ 1m)	86 dB
Coverage Pattern	Vertical 110° [1kHz-4 kHz average]; 10° down-tilt to aiming access for+45°/-65° coverage in relation to physical cabinet aim Horizontal 160° [1kHz – 4 kHz average]
Directivity (Q)	7.8
Directivity Index (DI)	8.9 dB
Rated Maximum SPL	105 dB Continuous (111 dB peak) @ 1m
Nominal Impedance	8Ω (in Thru/direct mode)
Minimum Impedance	7.0 Ω@ 275 Hz
Transformer Taps	20W, 10W, 5W @ both 70V & 100V (plus 2.5W @ 70V), and 8Ω thru, selectable via switch
Transformer Insertion Loss	Less than 1 dB for all taps
Maximum Input Voltage	21 V RMS (2 hrs), 42 V peak
Recommended Protective High-Pass	70 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (20W, 10W, 5W and 2.5W).
Drivers	Two 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers One 25 mm (1 in.) tweeter (tweeter located at top of array for better coverage of listening space)
Enclosure Material	PC + ABS, UL94-V0 flammability rating
Grille	Plated SPCC with polyester powder coat finish

More Column Speakers

JBL Professional

JBL ADC-H90 Mark II

View details →

JBL Professional

JBL ADC-V90 Mark II

View details →

More from JBL Professional

JBL Professional

JBL 8124

View details →

JBL Professional

JBL 8128

View details →

JBL Professional

Environmental Rating	IP-54 rated per IEC60529, dust and water protected when installed with included rain cover for input terminal compartment and no physical up-tilt cabinet aiming. UV resistant. [Cycle 1 per ISO 4892.3-2006]

Insert Points

Back Panel : 2 threaded insert points for WALL BRACKET ; attaches via included M6 x 20 mm bolts, flat washers, & lock washers; plus 1 threaded insert point for secondary safety cable, M6 threaded x 20 mm deep. Top & Bottom Caps : 1 threaded insert point on each cap (top & bottom, 2 insert points total) for L-BRACKETS ; attach via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points AND remove pre-installed bolts holding end cap in place.) [Note: For installer-specified attachment to these threaded insert points (without L-bracket), threaded insert is M6 x 28 mm deep.] Side Panels : 1 threaded insert point on each side (left and right, for 2 insert points total) for L-BRACKETS ; attach via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points.) [Note: For installer-specified attachment to these threaded insert points (without L-bracket), insert is M6 x 22 mm deep.]

Mounting

Multiple mounting methods (see Installation Guide for more details): Included Swivel (Pan) / Tilt WALL BRACKET provides continuously variable ±95° degree Horizontal left-right swivel (pan) aiming (at 0° down-tilt); continuously adjustable +0°/-10° Vertical tilt (when no interference to wall); WALL and SPEAKER sections of WALL BRACKET ASSEMBLY attach together via included M6 x 12 mm bolts, flat washers, and lock washers. Two included L-brackets that can be positioned on either top & bottom insert points or side-side insert points. Top, bottom, and 2 side threaded insert points can be interfaced by installer for installer-supplied mounting methods. Installer responsible for safety of mounting method.
