| Model | AWC62 |
|---|
| Frequency Range (-10dB) | 70 Hz – 18 kHz |
|---|
| Frequency Response (±3 dB) | 100 Hz – 16 kHz |
|---|
| Coverage Pattern | 110º x 110º |
|---|
| Directivity Factor (Q) | 7.2 (1 k – 16 kHz) |
|---|
| Directivity Index (DI) | 7.9 dB (1 k – 16 kHz) |
|---|
| System Power Rating | 175 W 2 hrs. 120 W 100 hrs (IEC rated) |
|---|
| Sensitivity (2.83V @ 1m) | 92 dB (Ave. 100 Hz – 18 kHz) |
|---|
| Maximum SPL (1m) | Direct 8Ω: 114 dB (peaks of 120 dB)120 W Tap: 112 dB |
|---|
| Crossover Network | 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF |
|---|
| Nominal Impedance | 8 ohms |
|---|
| Transformer Taps | 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W |
|---|

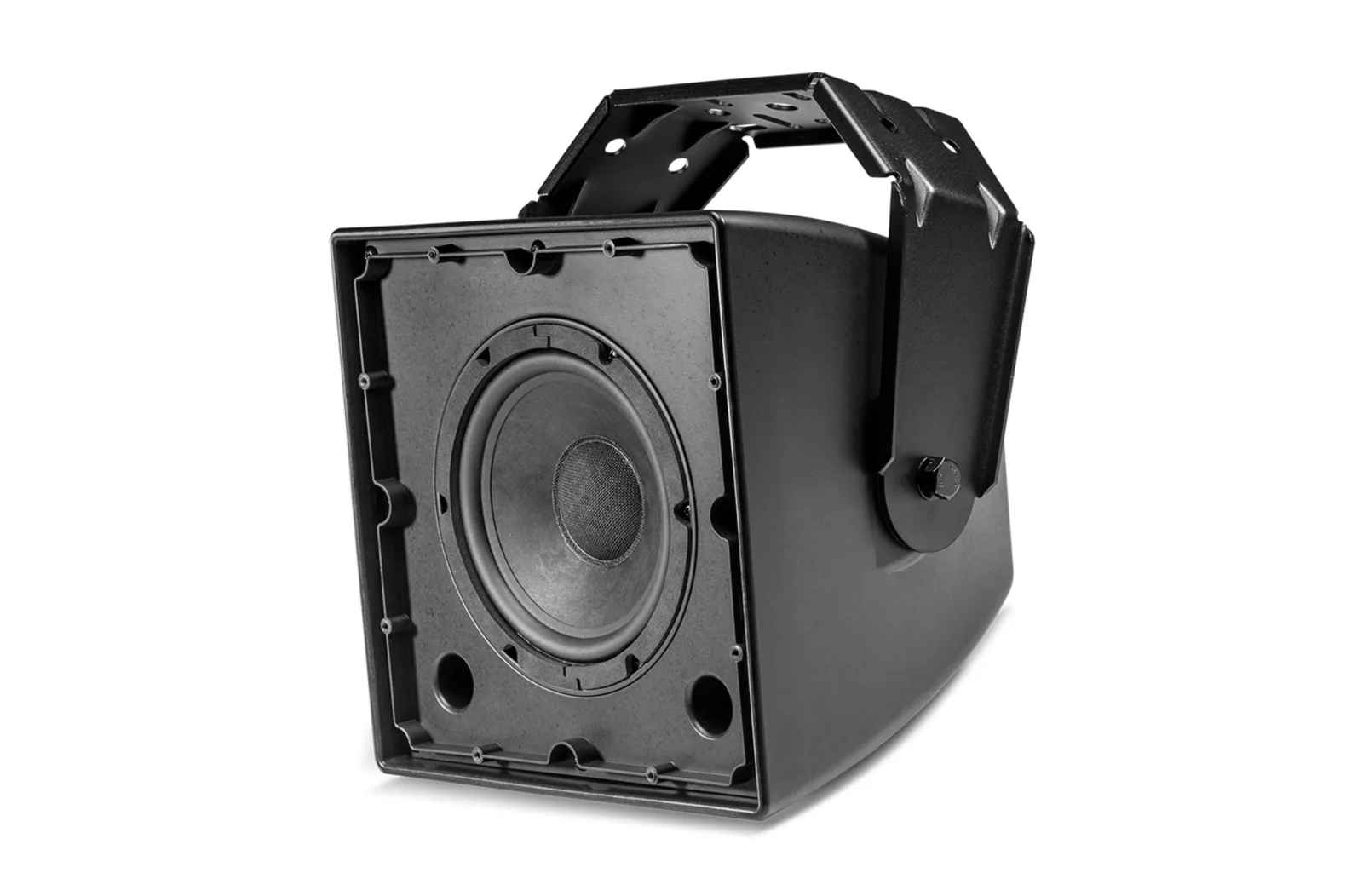

| LF Driver | Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil. |
|---|
| HF Driver | 25 mm (1 in) diaphragm and voice coil diameter |
|---|
| HF Driver Protection | Minimum audibility SonicGuard HF overload protection |
|---|
| Enclosure | ABS with Glass enclosure |
|---|

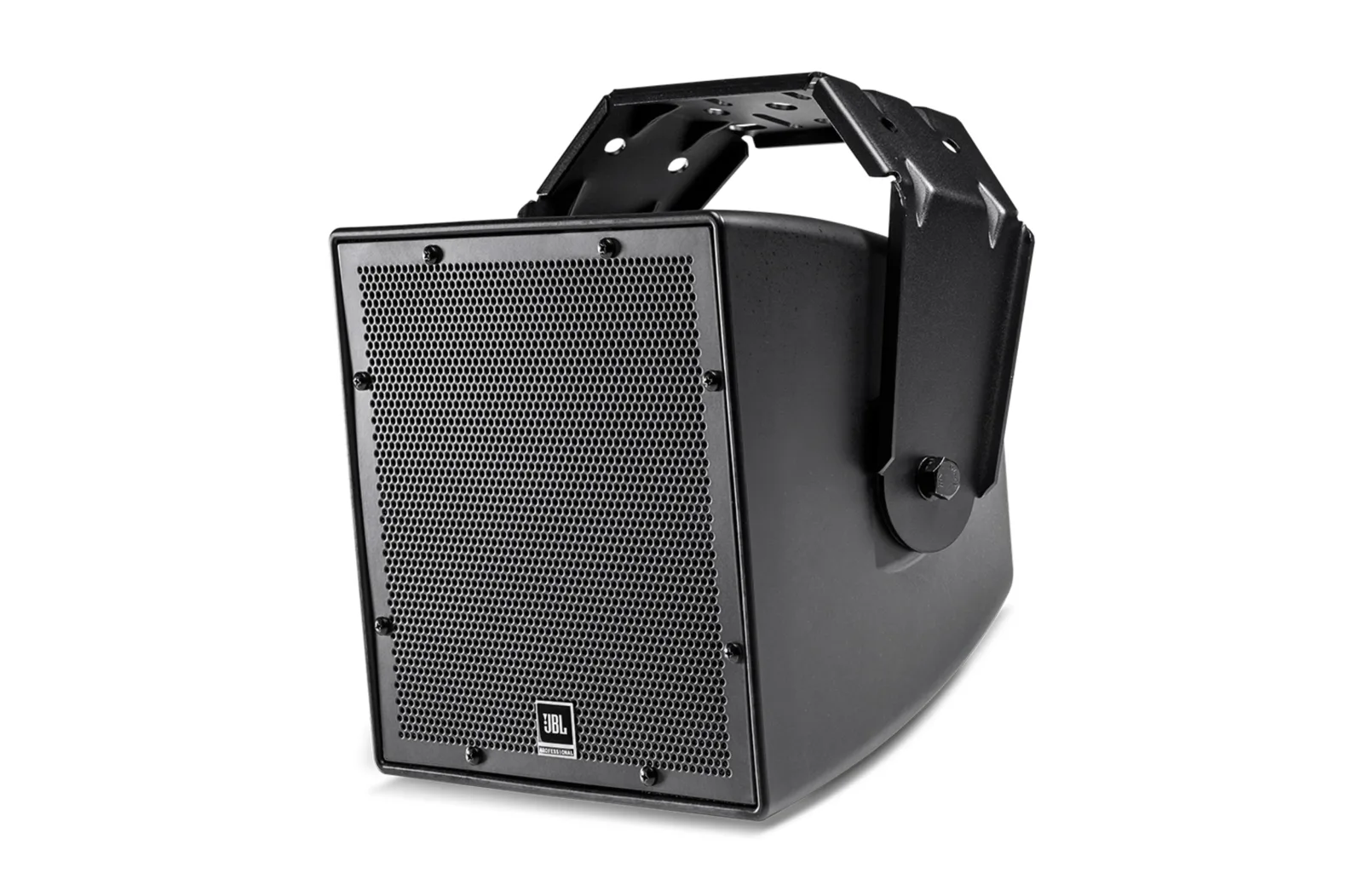

| Attachment | Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
|---|
| Grille | Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. |
|---|

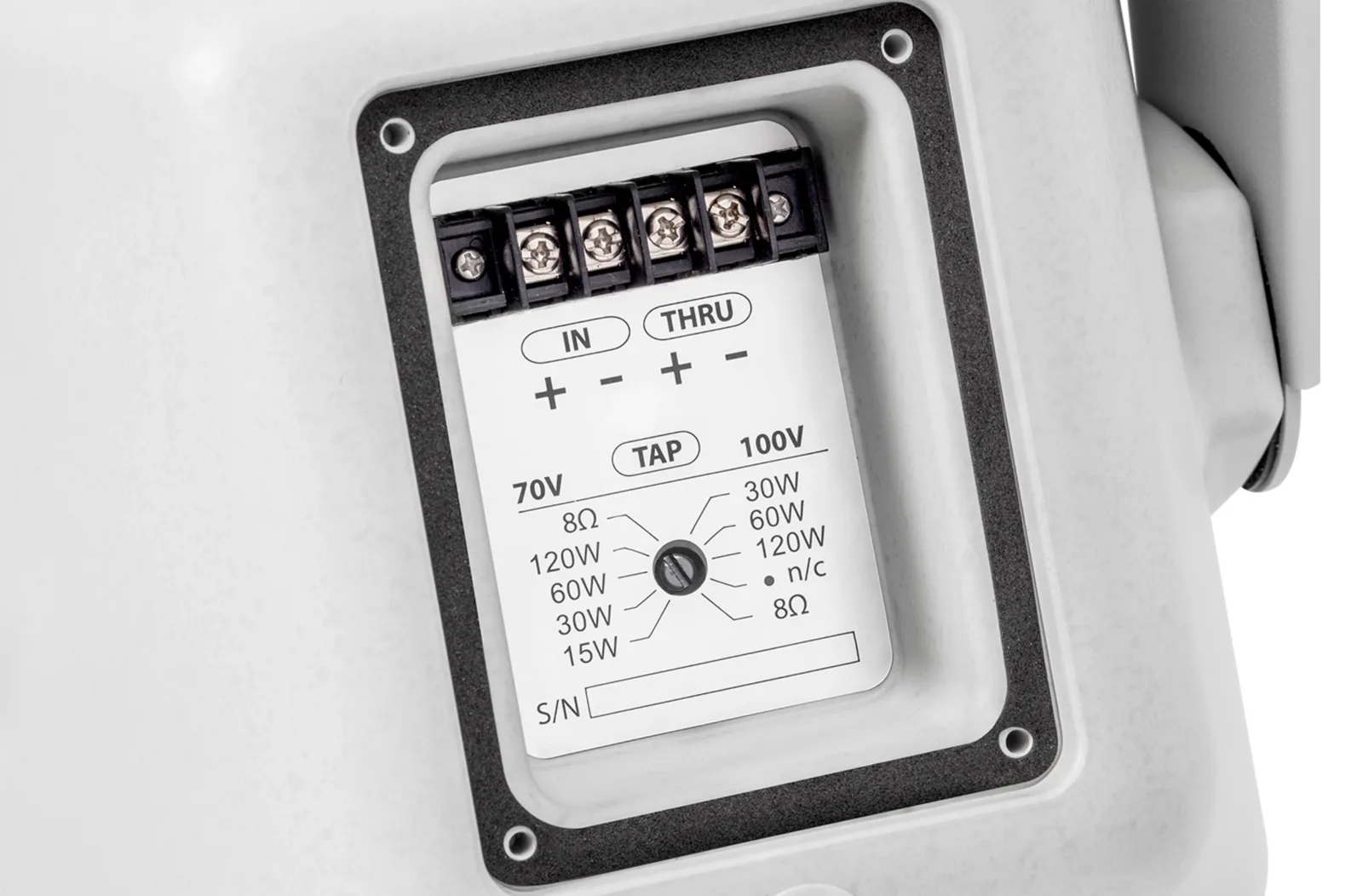

| Input Connection | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”). |
|---|
