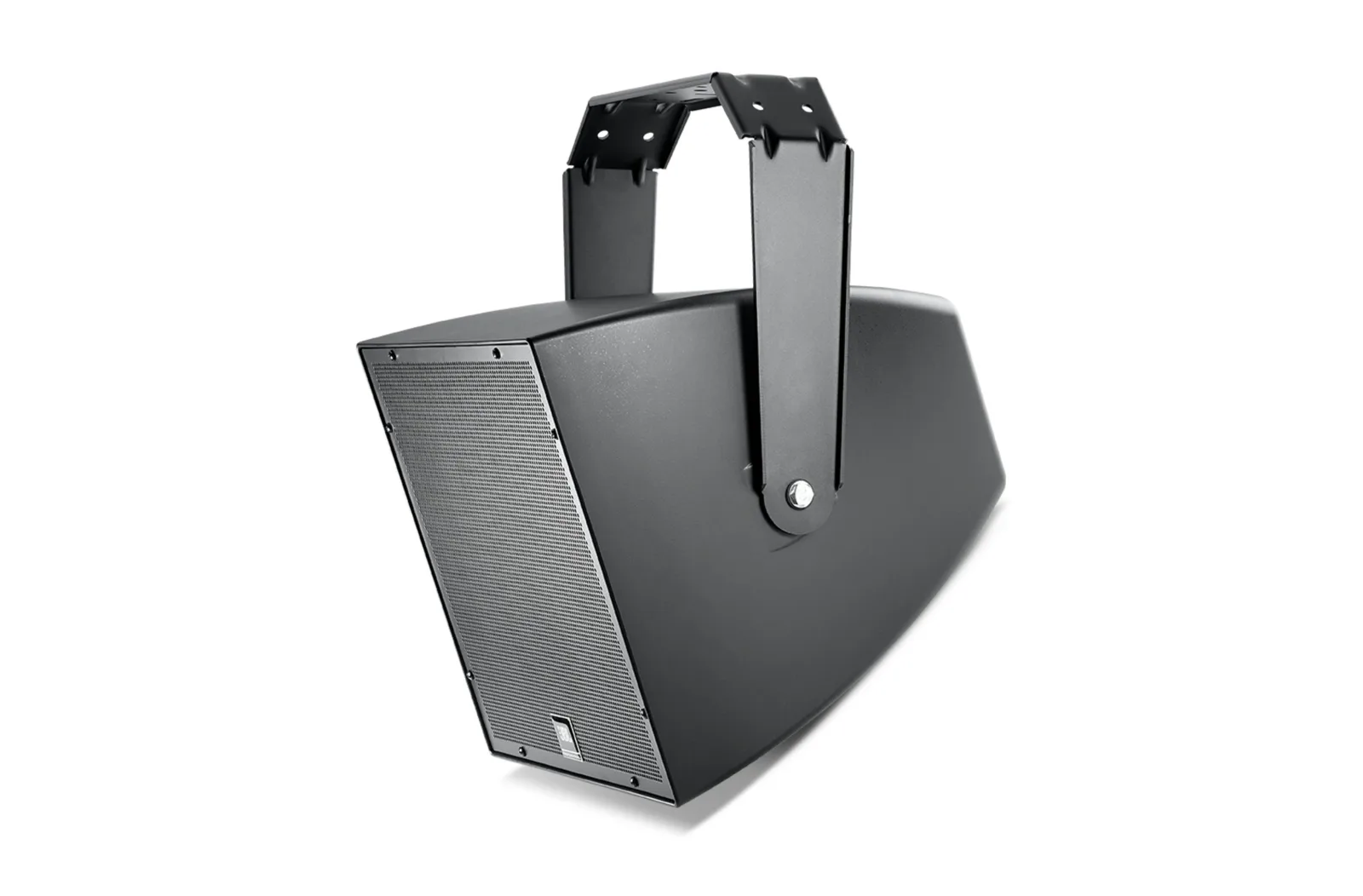

| Model | AWC159 |
|---|
| Frequency Range (-10dB) | 52 Hz – 20 kHz |
|---|
| Frequency Response (±3 dB) | 80 Hz – 20 kHz |
|---|
| Coverage Pattern | 90° x 90° |
|---|
| Directivity Factor (Q) | 11.1 (1 kHz – 16 kHz) |
|---|
| Directivity Index (DI) | 9.7 dB (1 kHz – 16 kHz) |
|---|
| System Power Rating | 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs |
|---|
| Sensitivity (2.83V @ 1m) | 98 dB (Ave. 80 Hz – 20 kHz) |
|---|
| Maximum SPL (1m) | Direct 8Ω: 125 dB (peaks of 131 dB) 300 W Tap: 123 dB (peaks of 129 dB) |
|---|
| Crossover Network | 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF |
|---|
| Nominal Impedance | 8 ohms |
|---|
| Transformer Taps | 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W |
|---|

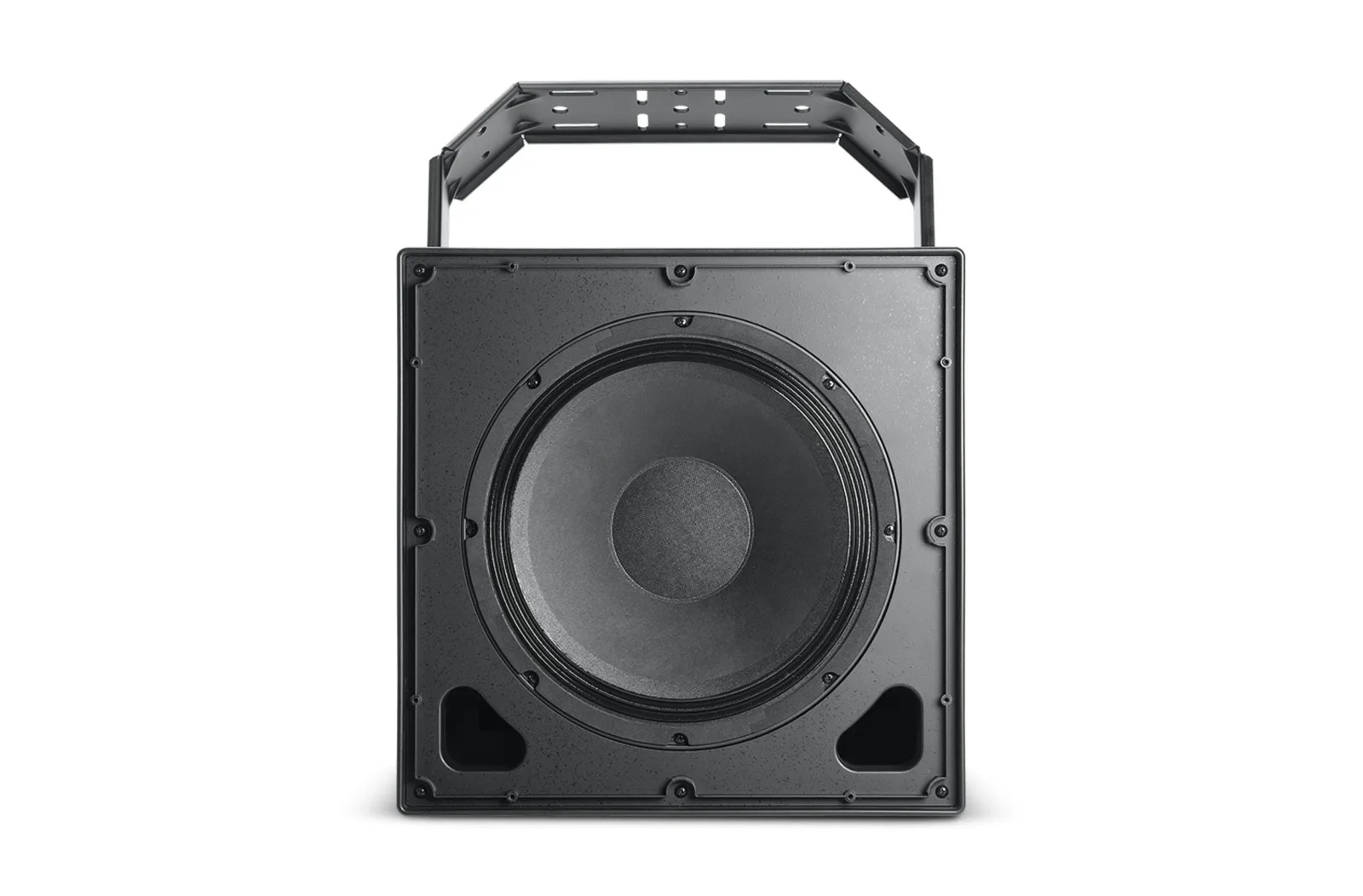

| LF Driver | Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil. |
|---|
| HF Driver | 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled. |
|---|
| Enclosure | ABS with Glass enclosure, heavily braced |
|---|
| Attachment | Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
|---|

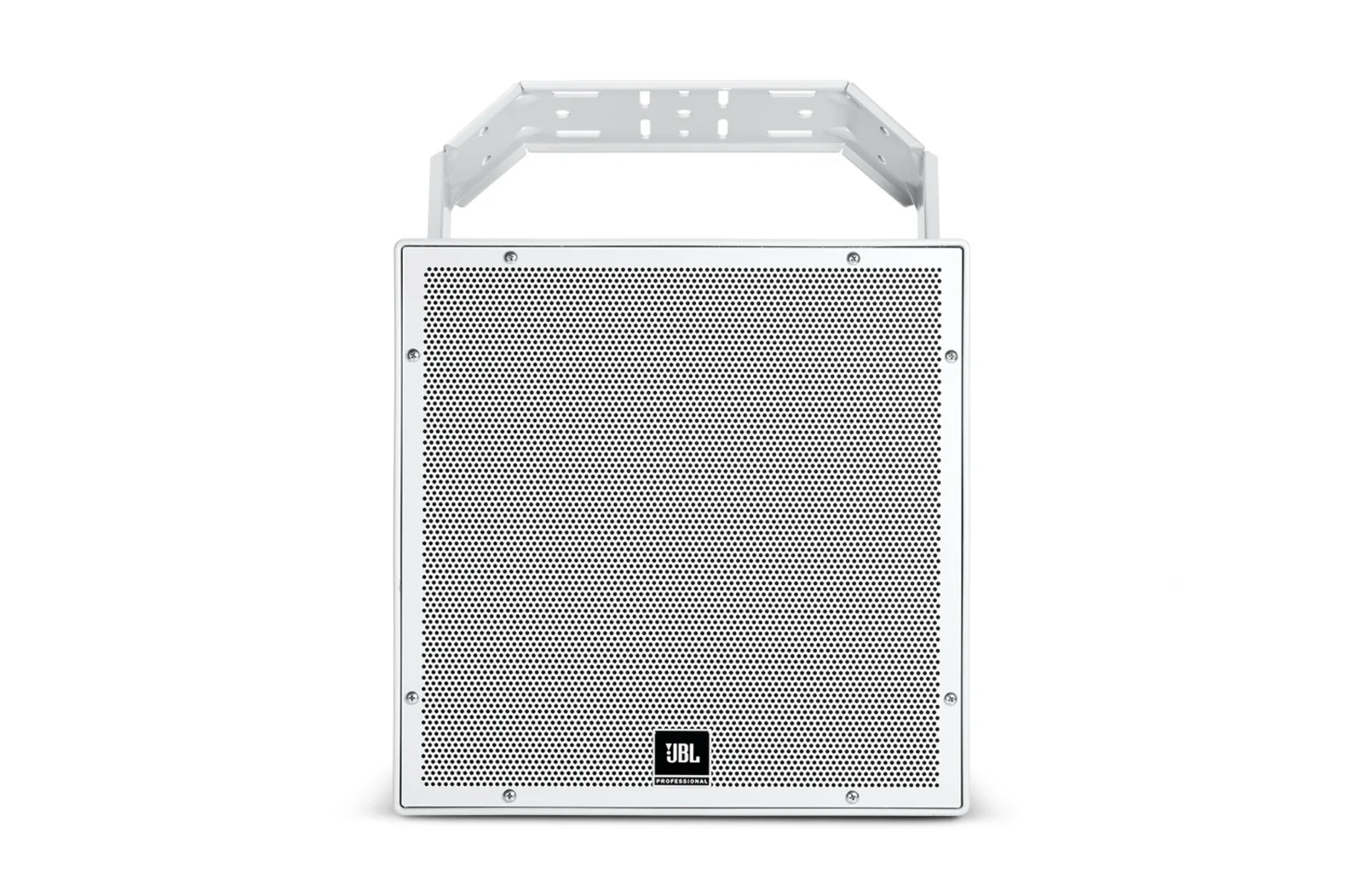

| Grille | Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. |
|---|
| Input Connection | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36") |
|---|
