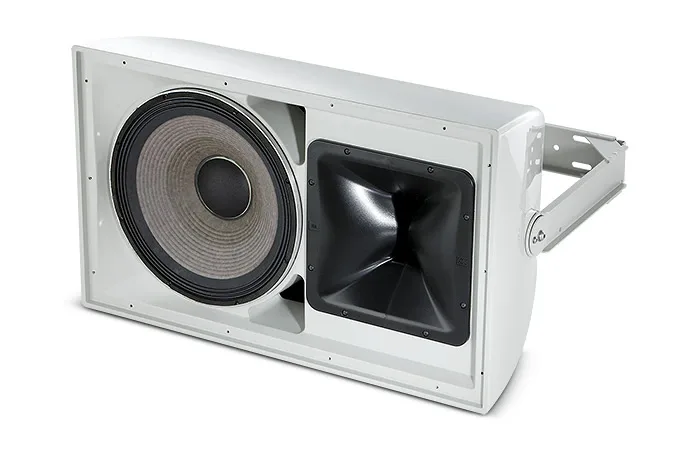

| Model | AW566-LS |
|---|
| Frequency Range (-10dB) | 42 Hz – 20 kHz |
|---|
| Frequency Response (±3 dB) | 89 Hz – 18 kHz |
|---|
| Coverage Pattern | 60° x 60°, rotatable waveguide |
|---|
| Directivity Factor (Q) | 15.8 |
|---|
| Directivity Index (DI) | 12 dB |
|---|
| Crossover Frequency | 1.1 kHz |
|---|
| System Power Rating | 400 W (1600 W peak), 100 hrs |
|---|
| Maximum SPL (1m) | 127 dB-SPL cont avg (133 dB peak) |
|---|
| Maximum SPL (@ 4m) | 114.24 dB |
|---|
| System Sensitivity (1w @ 1m) | 100 dB SPL |
|---|
| Sensitivity (1W @ 4m) | 89.6 dB SPL |
|---|
| Transformer Taps | 70V: 400 W, 200 W, 100W100V: 400W, 200W |
|---|
| LF Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil |
|---|
| Nominal Impedance | 8 ohms |
|---|
| Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
|---|
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
|---|
| Sensitivity | 113 dB SPL |
|---|
| Waveguide | PT-H66HF-1 |
|---|
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK) |
|---|
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
|---|
