JBL AW566 Pendant Speakers

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn

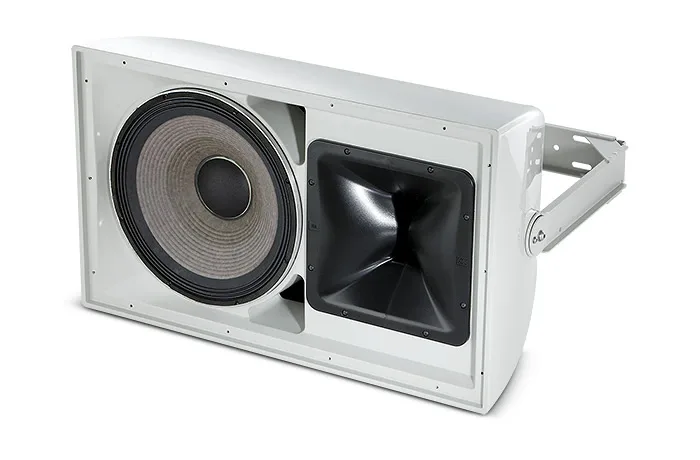

The AW566 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW566 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

Weather-Resistant, All Fiberglass Enclosure

60° x 60° Coverage

2265H-1 Differential Driver Low- Frequency Driver

2432H High Frequency Compression Driver

Large PT Progressive Transition waveguide for excellent pattern control and low distortion

Available in Gray and Black finish

400 W, 70/100V Transformer Included

U-type Mounting Bracket Included

Sports Facilities

Themed Entertainment Venues

Outdoor Entertainment Centers

Water Parks

Attribute

Value

Model

AW566

Frequency Range (-10dB)

35 Hz – 20 kHz

Frequency Response (±3 dB)

54 Hz – 18 kHz

Coverage Pattern

60° x 60°

Directivity Factor (Q)

15.8

Directivity Index (DI)

12 dB

Crossover Frequency

1.1 kHz

System Power Rating

600 W (2400 W peak), 100 hrs

Maximum SPL (1m)

128 dB-SPL cont avg (134 dB peak)

System Sensitivity (1w @ 1m)

100 dB SPL

Transformer Taps

70V: 400 W, 200 W, 100W100V: 400W, 200W

LF Driver

1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil

Nominal LF Driver Impedance

8 ohms

LFD Sensitivity (1W @ 1m, within operational band)

98 dB SPL

HF Driver

JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Nominal HF Driver Impedance

8 ohms

Sensitivity

113 dB SPL

Waveguide

PT-H66HF-1

Enclosure

Hand-Laminated Fiberglass, gray gelcoat (black available)

Suspension Attachment

2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

Grille

Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
