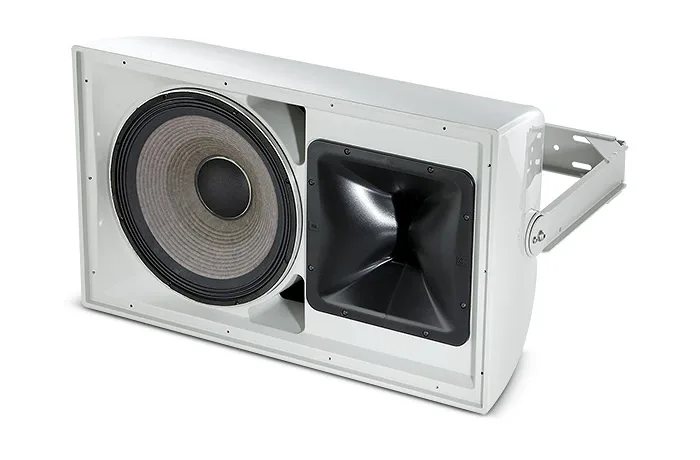

View larger image of JBL AW526-LS — official product photo
31 attributes
| Attribute | Value |
|---|---|
| Model | AW526-LS |
| Frequency Range (-10dB) | 39 Hz – 20 kHz |
| Frequency Response (±3 dB) | 86 Hz – 17 kHz |
| Coverage Pattern | 120° x 60°, rotatable waveguide |
| Coverage Angle | Frequency (kHz) Horizontal Coverage° Vertical Coverage° |
| 0.5 kHz | 135° 108° |
| 1 kHz | 98° 95° |
| 2 kHz | 115° 67° |
| 4 kHz | 108° 46° |
| Directivity Factor (Q) | 7.9 |
| Directivity Index (DI) | 9 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1m) | 127 dB-SPL cont avg (133 dB peak) |
| Maximum SPL (@ 4m) | 108 dB per EN54 Standard |
| System Sensitivity (1w @ 1m) | 100 dB |
| Sensitivity (1W @ 4m) | 86.98 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100W100V: 400W, 200W |
| LF Driver | 1 x JBL 2265H 380 mm (15 in.) Differential Drive driver with 75 mm (3 in) dual voice coil |
| Nominal Impedance | 8 ohms (6.2 ohms per EN54) |
| Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| Sensitivity | 113 dB SPL |
|---|
| Waveguide | PT-H126HF -1 |
|---|
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK) |
|---|
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
|---|
| Grille | Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh. |
|---|
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
|---|
| Environmental | IP55C per IEC 529 |
|---|
| Dimensions (H x W x D in horizontal cabinet orientation) | 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in) |
|---|
| Net Weight (each) | 28.3 kg (62.5 lb) |
|---|
