JBL AW295 Pendant Speakers

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn

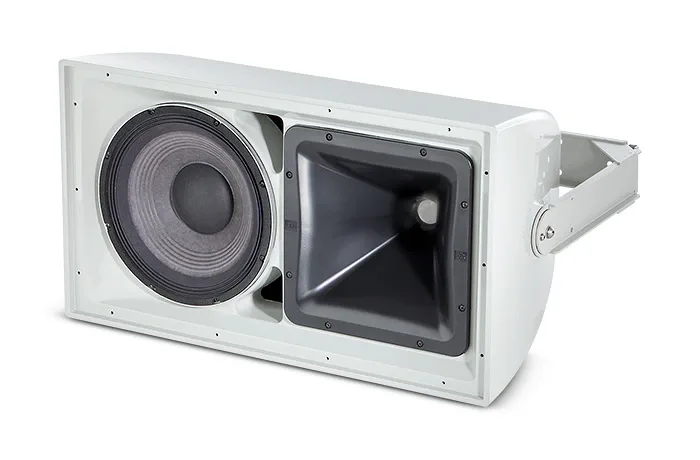

The AW295 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty weather treated U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW295 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

Weather-Resistant, All Fiberglass Enclosure

90° x 50° Coverage

2262H Differential Driver Low- Frequency Driver

2432H High Frequency Compression Driver

Large PT Progressive Transition waveguide for excellent pattern control and low distortion

Rotatable wave guide for vertical or horizontal orientation

Available in Gray and Black finish

400 W, 70/100V Transformer Included

U-type Mounting Bracket Included

Sports Facilities

Themed Entertainment Venues

Outdoor Entertainment Centers

Attribute

Value

Model

AW295

Frequency Range (-10dB)

43 Hz – 20 kHz

Frequency Response (±3 dB)

53 Hz – 18 kHz

Coverage Pattern

90° x 50°, rotatable waveguide

Directivity Factor (Q)

12.6

Directivity Index (DI)

11 dB

Crossover Frequency

1.3 kHz

System Power Rating

500 W (2000 W peak), 100 hrs

Maximum SPL (1m)

126 dB-SPL cont avg (132 dB peak)

System Sensitivity (1w @ 1m)

98 dB SPL

Transformer Taps

70V: 400 W, 200 W, 100W100V: 400W, 200W

LF Driver

1 x JBL 2262H 300 mm (12 in) Differential Drive driver with (3 in) dual voice coil

Nominal LF Driver Impedance

8 ohms

LFD Sensitivity (1W @ 1m, within operational band)

96 dB SPL

HF Driver

JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Nominal HF Driver Impedance

8 ohms

HFD Sensitivity (1W @ 1m)

113 dB SPL

Waveguide

PT-H95HF-1

Enclosure

Hand-Laminated Fiberglass, gray gelcoat (black available)

Suspension Attachment

2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
