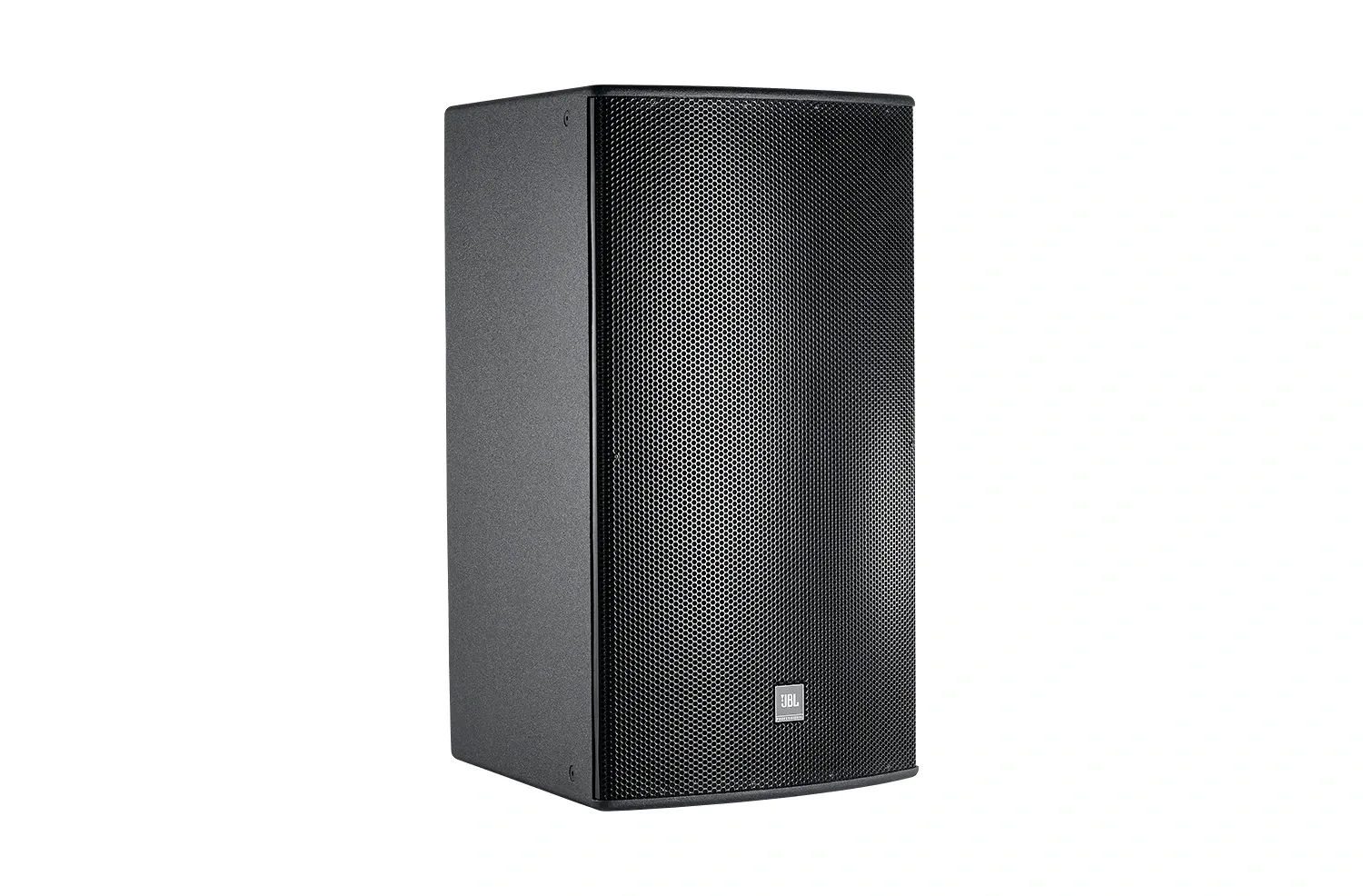

JBL AM7315/64 3-Way Loudspeaker with 60° x 40° Horn

AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features

2265H Differential Drive Low-Frequency Driver

CMCD Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.

2432H High-Frequency Compression Driver

PT Progressive Transition Waveguide for excellent pattern control with low distortion.

Bi-Amp/Tri-Amp Switchable.

Performing arts facilities

Theatrical sound design

Auditoriums

Houses of worship

Live clubs

Dance-clubs/discotheques

Sports facilities

Attribute

Value

Model

AM7315/64

Frequency Range (-10dB)

38 Hz – 20 kHz

Frequency Response (±3 dB)

45 Hz – 18 kHz

Coverage Pattern

/64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide

Directivity Index (DI)

13 dB

Crossover Modes

Tri-amp/Bi-amp switchable

Crossover Frequencies

300 Hz and 2.3 kHz

Transducer Power Rating (AES)

LF: 1000 W (4000 W peak), 2 hrs750 W (3000 W peak), 100 hrsMF: 350 W (1400 W peak), 2 hrsHF: 100 W (400 W peak), 2 hrs

System Power Rating

LF: 600 W (2400 W peak), 100 hrsMF/HF: 200 W (800 W peak), 100 hrs

Maximum SPL (1m)

LF: 127 dB-SPL cont avg (133 dB peak)Tri-amp mode:MF: 133 dB-SPL cont avg (139 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Bi-amp mode:MF/HF: 133 dB-SPL cont avg (139 dB peak)

System Sensitivity of Passive Sections (1W @ 1m)

MF/HF Section in Bi-amp mode: 108 dB SPL

Nominal Impedance

8 ohms

LF Driver

1 x JBL 2265H 380 mm (15 in ) Differential Drive driver with 75 mm (3 in)

Sensitivity (1W @ 1m) (Low Frequency)

97 dB SPL

MF Driver

JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive dual voice coil internal driver

Sensitivity (1W @ 1m) (Midrange)

108 dB SPL
