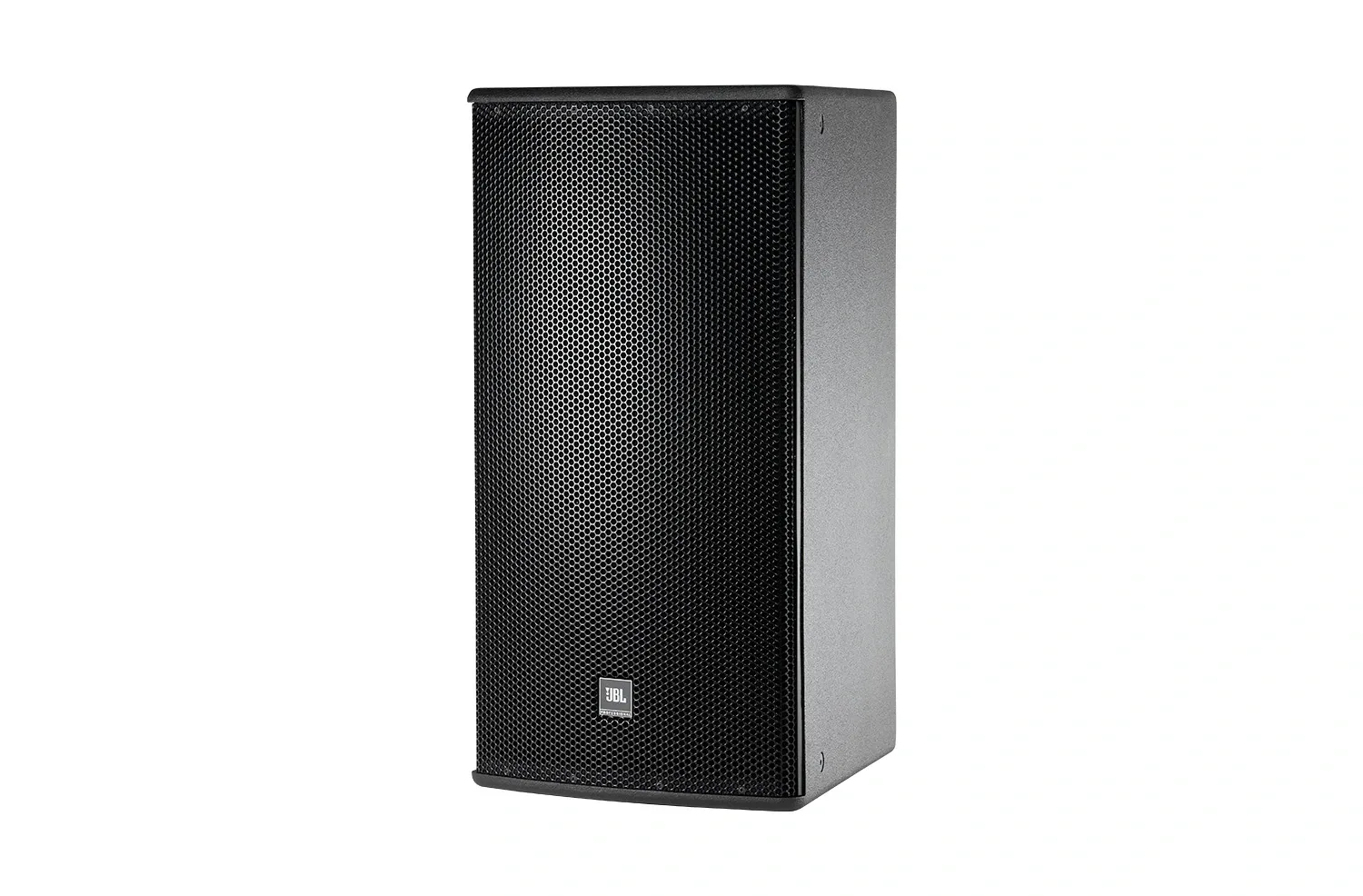

View larger image of JBL AM7215/26 — official product photo
21 attributes
| Attribute | Value |
|---|---|
| Model | AM7215/26 |
| Frequency Range (-10dB) | 34 Hz - 20 kHz |
| Frequency Response (±3 dB) | 40 Hz - 18 kHz |
| Coverage | /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60° |
| LF Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| System Type | 15" Two - Way, High Power, Full - Range |
| Dimensions (H x W x D) | 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in) |
| Net Weight (each) | 27.2 kg (60 lb) |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hr750 W (3000 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs |
| System Power Rating | Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated) |
| Maximum SPL (1m) | Bi-amp mode:LF: 128 dB-SPL cont avg (134 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:124 dB-SPL cont avg (130 dB peak) |
| System Sensitivity (1w @ 1m) | Passive mode: 96 dB SPL |
| Nominal Impedance | 8 ohms |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
|---|
| Environmental | Mil-Std 810; IP-x3 per IEC529. |
|---|
