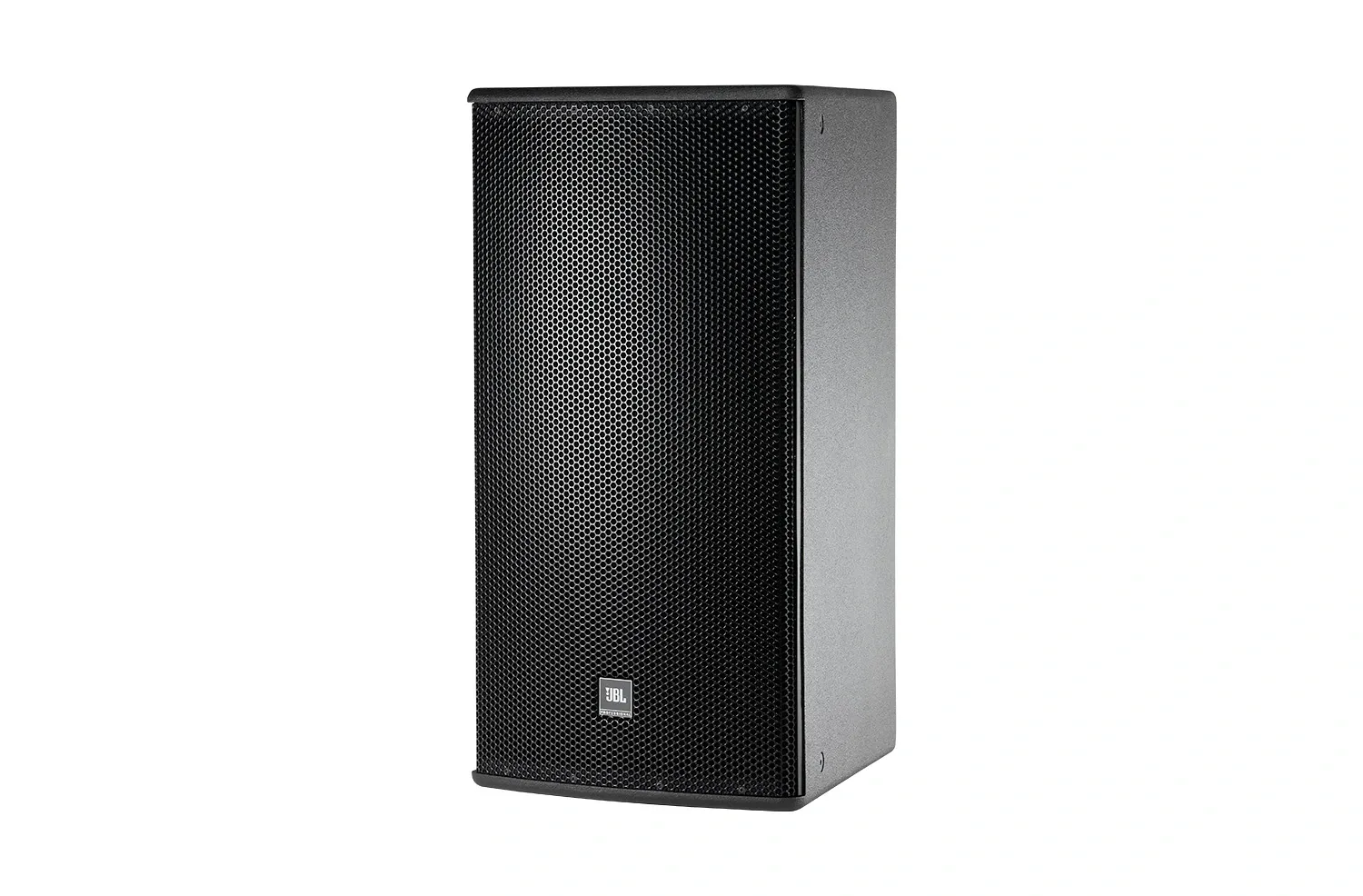

| Model | AM5215/26 |
|---|
| Frequency Range (-10dB) | 35 Hz - 20 kHz |
|---|
| Frequency Response (±3 dB) | 41 Hz – 18 kHz |
|---|
| Coverage Pattern | /64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60° |
|---|
| Directivity Factor (Q) | 14.5 |
|---|
| Directivity Index (DI) | 11.6 dB |
|---|
| Crossover Modes | Bi-amp/Passive switchable |
|---|
| Passive Crossover Frequency | 2 kHz |
|---|
| Transducer Power Rating (AES) | LF: 500 W (2000 W peak), 2 hrs350 W (1400 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs |
|---|
| System Power Rating | Passive mode: 350 W (1400 W peak), 100 hrs (IEC rated) |
|---|
| Maximum SPL (1m) | Bi-amp mode:LF: 125 dB-SPL cont avgHF: 131 dB-SPL cont avg. |
|---|
| System Sensitivity (1w @ 1m) | Passive mode: 98 dB SPL |
|---|
| LF Driver | 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil |
|---|
| Nominal Impedance | 8 ohms |
|---|
| Sensitivity (1W @ 1m, within operational band) | 99 dB SPL |
|---|
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
|---|
| Sensitivity | 115 dB SPL |
|---|
| Waveguide | PT-H66HF-1 |
|---|
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
|---|
| Suspension Attachment |
|---|
