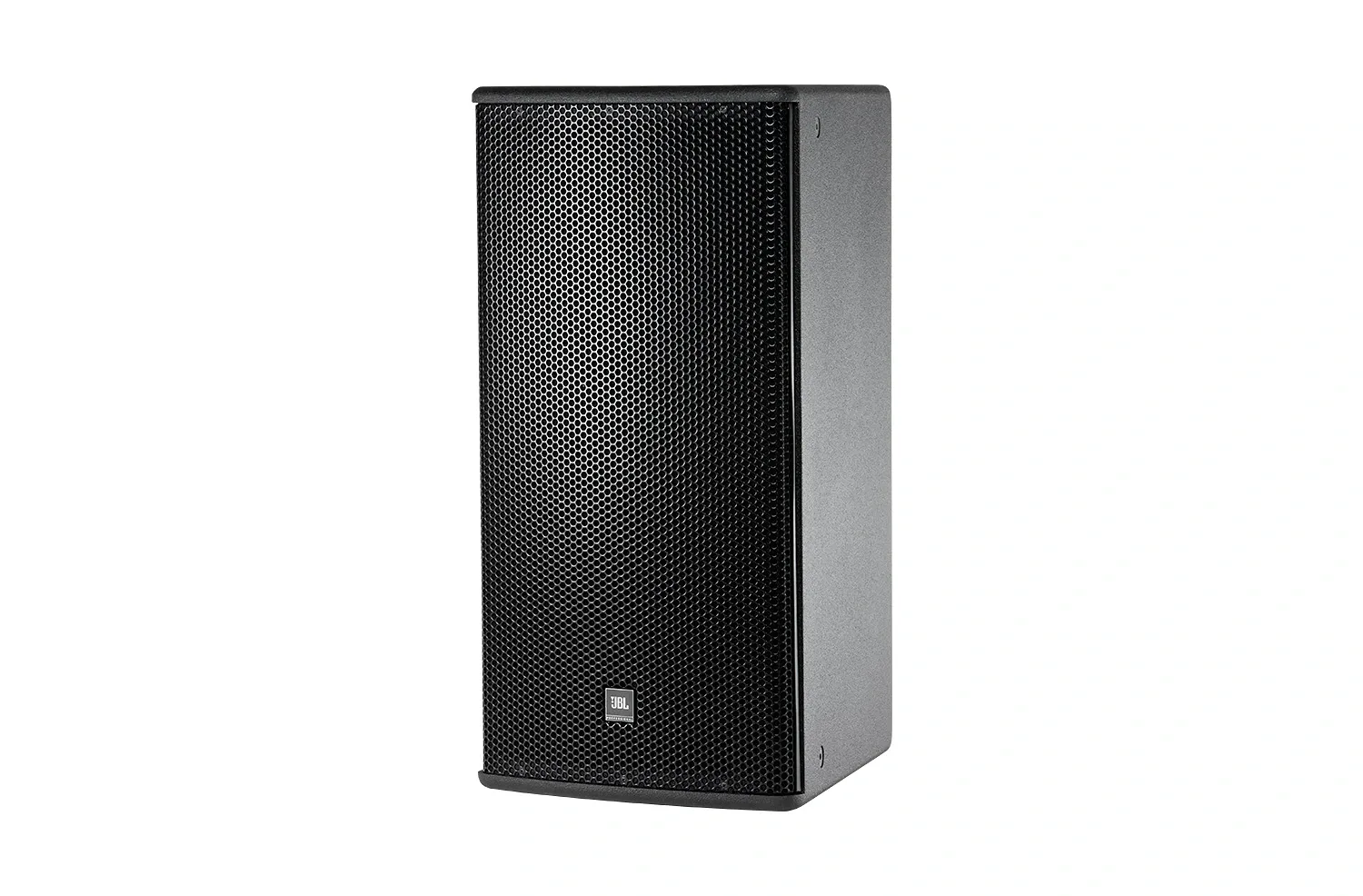

| Model | AM5212/26 |
|---|
| Frequency Range (-10dB) | 37 Hz – 20 kHz |
|---|
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
|---|
| Coverage Pattern | /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60° |
|---|
| Crossover Modes | Bi-amp/Passive switchable |
|---|
| Passive Crossover Frequency | 1.5 kHz |
|---|
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs300 W (1200 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs |
|---|
| System Power Rating | Passive mode: 300 W (1200 W peak), 100 hrs (IEC rated) |
|---|
| Maximum SPL (1m) | Bi-amp mode: LF: 122 dB HF: 131 dB |
|---|
| System Sensitivity (1w @ 1m) | Passive mode: 96 dB SPL |
|---|
| LF Driver | 1 x JBL 262H-1 300 mm (12 in ) driver with 50.8 mm (2 in) dual voice coil |
|---|
| Nominal Impedance | 8 ohms |
|---|
| Sensitivity (1W @ 1m, within operational band) | 97 dB SPL |
|---|
| HF Driver | JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil |
|---|
| Sensitivity | 113 dB SPL |
|---|
| Waveguide | PT-H126HF-1 |
|---|
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
|---|
| Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
|---|
| Finish | Black DuraFlex finish. White available upon request. |
|---|
