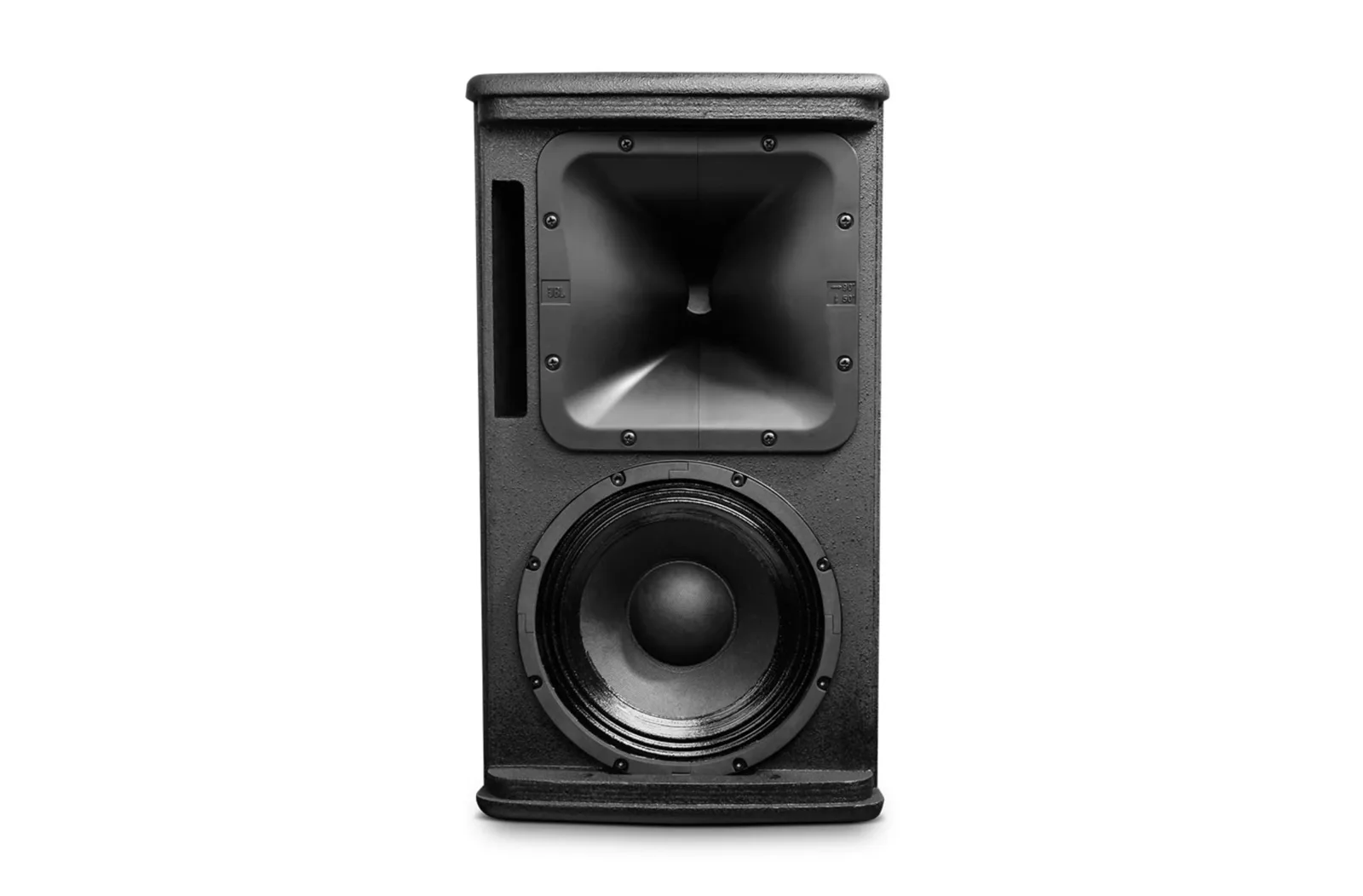

View larger image of JBL AC895 — official product photo
21 attributes
| Attribute | Value |
|---|---|
| Model | AC895 |
| Frequency Range (-10dB) | 70 Hz - 20 kHz |
| Frequency Response (±3 dB) | 90 Hz - 18 kHz |
| System Sensitivity (1w @ 1m) | 94 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 116 dB (122 dB peak) |
| System Power Rating | 250W (1000W peak), 2 hrs (AES rated) 150 W/300 W/600 W (Continuous/Program/Peak) (IEC rated) |
| Coverage Pattern | 90° x 50° (H x V) |
| Crossover | 2 kHz |
| LF Driver | 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil |
| HF Driver | 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. |
| Suspension Attachment | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket |
| Dimensions (H x W x D) | 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in |
| Net Weight (each) | 10.2 kg (22.4 lbs) |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance |
| 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
|---|
