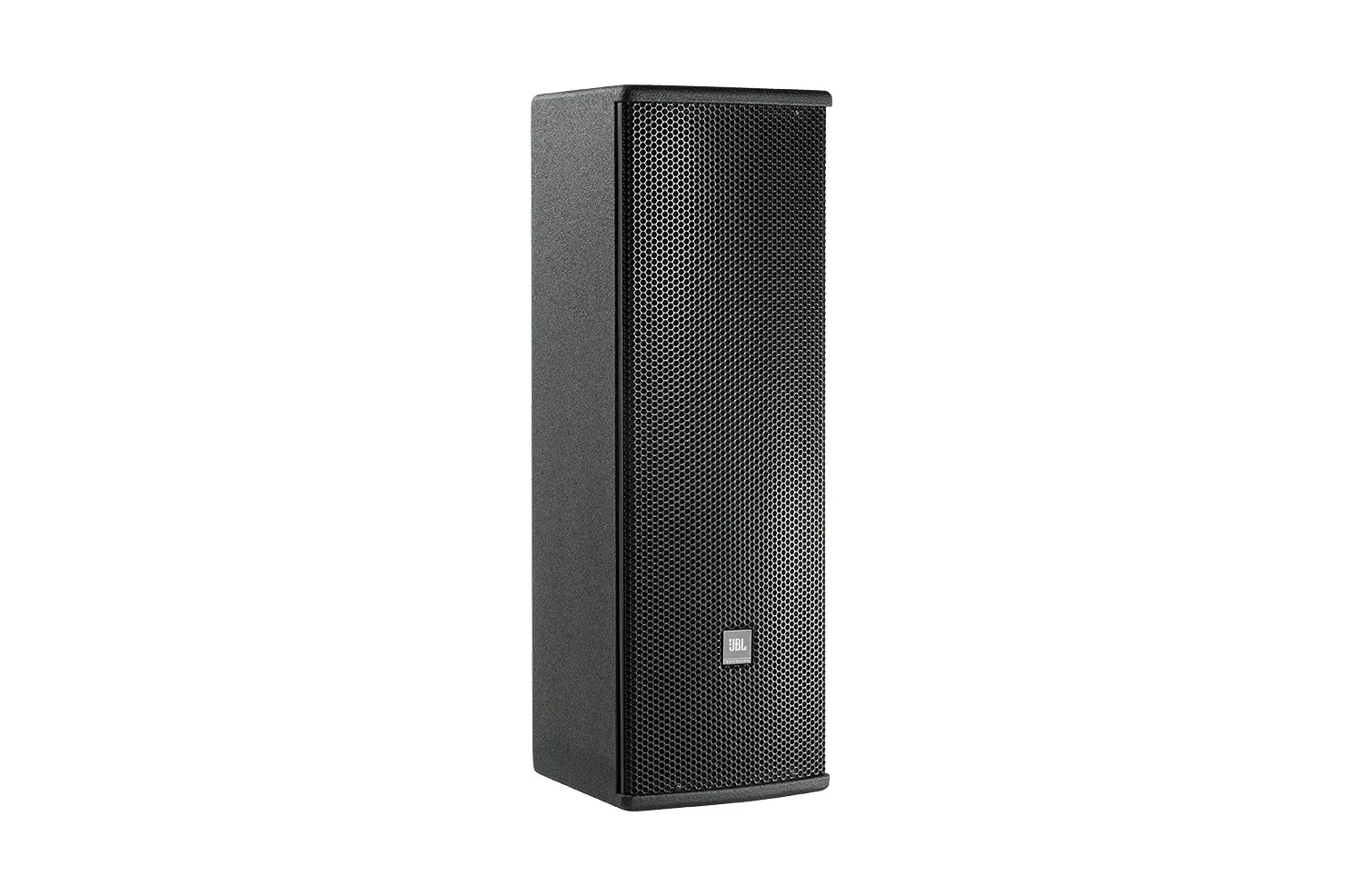

JBL AC28/26 Compact Dual 8-inch 2-way Loudspeaker with 120° x 60° Horn

An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.

Features

1” Exit Compression Driver with PT Waveguide

205 mm (8 in) LF transducer

Compact enclosure

750W Program

Dual Neutrik NL4 connectors plus screw terminal

FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality

Attachment points for optional U-bracket, third part OmniMount type bracket and stand mount accessory

Performing Arts Facilities

Theatrical Sound Design

Auditoriums

Worship Facilities

Live Clubs

Attribute

Value

Model

AC28/26

Frequency Range (-10dB)

53 Hz - 20 kHz

Frequency Response (±3 dB)

65 Hz – 20 kHz

System Power Rating

700 W (AES rated) 375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)

Impedance

8 ohms

Coverage Pattern

/26: 120° x 60°/95: 90° x 50°

Dimensions (H x W x D)

679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)

Net Weight (each)

18.6 kg (40.9 lb)

Crossover Modes

Passive

Maximum SPL (1m)

120 dB

System Sensitivity (1w @ 1m)

94 dB SPL

LF Driver

2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil

Nominal LF Driver Impedance

8 Ohms

HF Driver

1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil

Enclosure

12 mm and 15 mm exterior grade multi-ply hardwood plywood

Suspension Attachment

6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M8 rear for MultiMount MM-120-BT.

Environmental

Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
