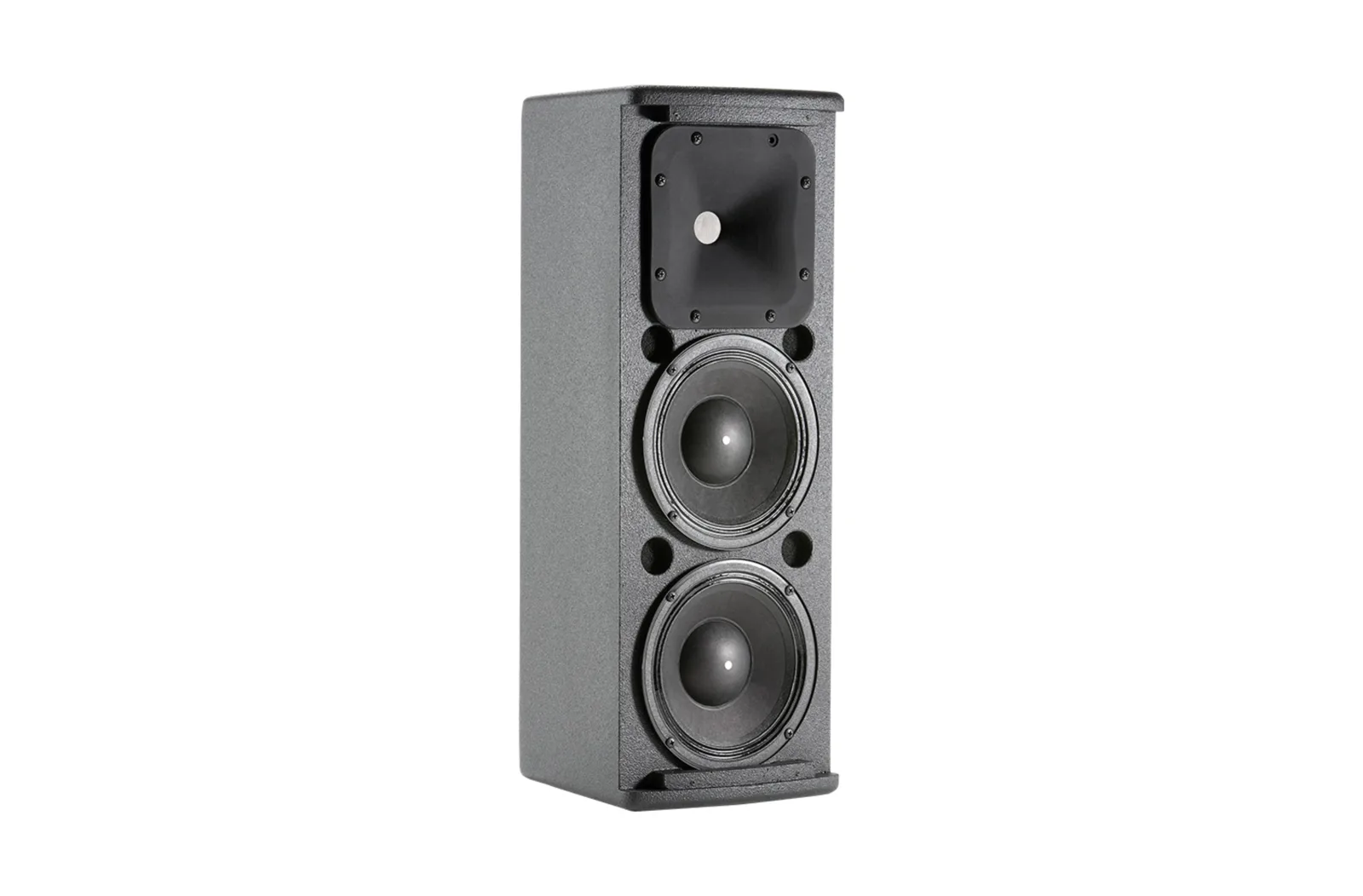

JBL AC26 Ultra Compact 6-inch 2-way Loudspeaker

Brand: JBL ProfessionalModel: AC26

An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.

Request a quote WhatsApp

Compare with similar

Features

1” Exit Compression Driver with 90° x 90° Coverage PT Waveguide
165 mm (6.5 in) LF transducer
Ultra compact enclosure
360W Program
Dual Neutrik NL4 connectors plus screw terminal
Attachment points for optional U-bracket, third part OmniMount type bracket and stand mount accessory
Performing Arts Facilities
Theatrical Sound Design
Auditoriums
Worship Facilities
Live Clubs
Dance Clubs

Specifications

16 attributes

Attribute	Value
Model	AC26
Frequency Range (-10dB)	55 Hz -20 kHz
Frequency Response (±3 dB)	70 Hz -18 kHz
System Power Rating	350 W (AES rated) 180 W / 360 W / 720 W (Continuous/Program/Peak) (IEC rated)
Impedance	8 ohms
Coverage Pattern	90° x 90°
Dimensions (H x W x D)	539.8 x 199.4 x 226.1mm (21.3 x 7.8 x 8.9in)
Net Weight (each)	11.0 kg (24.3 lb)
Maximum SPL (1m)	117 dB
System Sensitivity (1w @ 1m)	92 dB SPL
LF Driver	2 x JBL 226J, 165 mm (6.5 in) SFG driver with 50 mm (2 in) edge wound voice coil
Nominal LF Driver Impedance	8 Ohms
HF Driver	1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
Enclosure	12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment	6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount 30.0 or MultiMount MM-022-BT, MM-024-BT, MM-020-CM.
Environmental	Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
