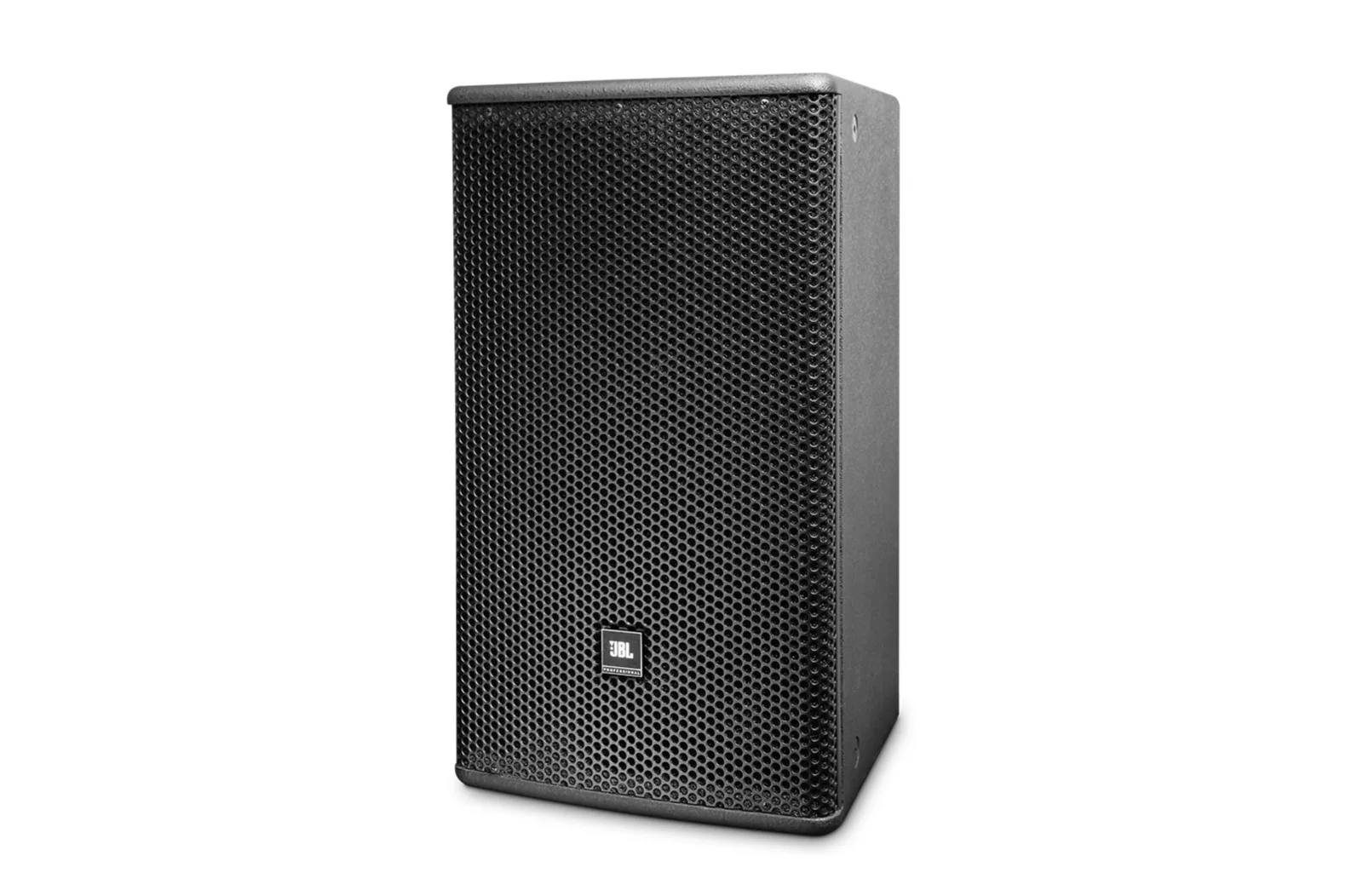

View larger image of JBL AC195 — official product photo
20 attributes
| Attribute | Value |
|---|---|
| Model | AC195 |
| Frequency Range (-10dB) | 68 Hz - 20 kHz |
| Frequency Response (±3 dB) | 85 Hz - 18kHz |
| System Sensitivity (1w @ 1m) | 95 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 118 dB (124 dB peak) |
| System Power Rating | 300W (1200W peak), 2 hrs (AES rated) |
| Coverage Pattern | 90° x 50° (H x V) |
| Crossover | 1.8 kHz |
| LF Driver | 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil |
| HF Driver | 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. |
| Suspension Attachment | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket |
| Dimensions (H x W x D) | 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in |
| Net Weight (each) | 13.1 kg (28.8 lbs) |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance |
| 8 ohms |
