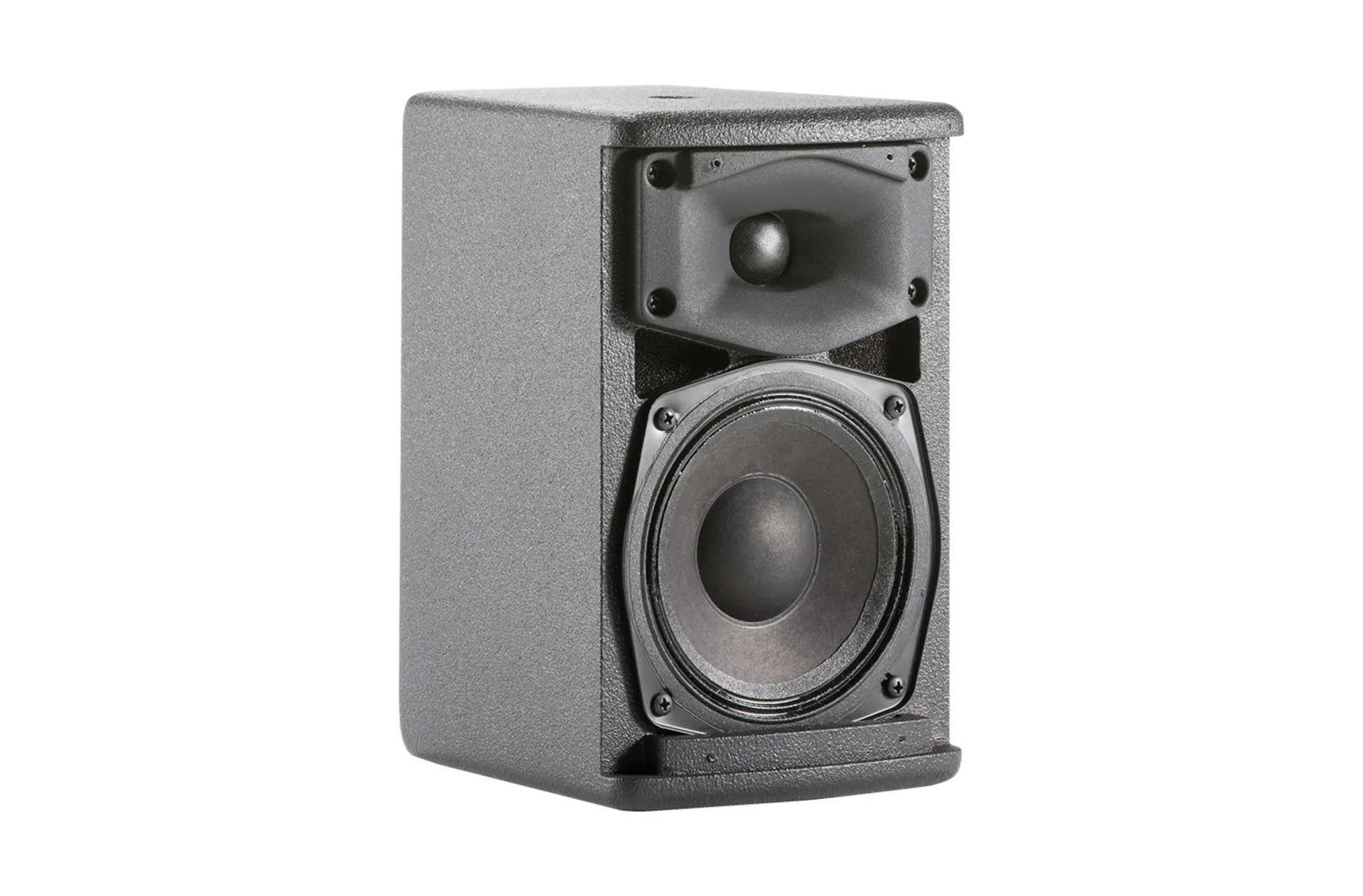

JBL AC15 Ultra Compact 5-inch 2-way Loudspeaker

An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.

Features

1” Dome Tweeter with 90° x 90° Coverage.

135 mm (5.25 in) LF transducer

Ultra compact enclosure

300W Program Power

Dual Neutrik NL4 connectors plus screw terminal

Attachment points for optional U-bracket

Performing Arts Facilities

Theatrical Sound Design

Auditoriums

Worship Facilities

Live Clubs

Dance Clubs

Attribute

Value

Model

AC15

Frequency Range (-10dB)

80 Hz -20 kHz

Frequency Response (±3 dB)

90 Hz -18 kHz

System Power Rating

225 W (AES rated) 150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)

Impedance

16 ohms

Coverage Pattern

90° x 90°

Dimensions (H x W x D)

241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)

Net Weight (each)

4.7 kg (10.5 lb)

Crossover Modes

Passive

Maximum SPL (1m)

108 dB

System Sensitivity (1w @ 1m)

86 dB SPL

Nominal Section Impedances

16 ohms

LF Driver

1 x JBL 225J, 135 mm (5.25 in) SFG driver with 38 mm (1.5 in) edge wound voice coil

Nominal LF Driver Impedance

16 Ohms

HF Driver

1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter

Enclosure

12 mm exterior grade multi-ply hardwood plywood

Suspension Attachment

4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount 20.5 or MultiMount MM-008-BT

Environmental

Mil-Std 810; IPx3 per IEC529.
