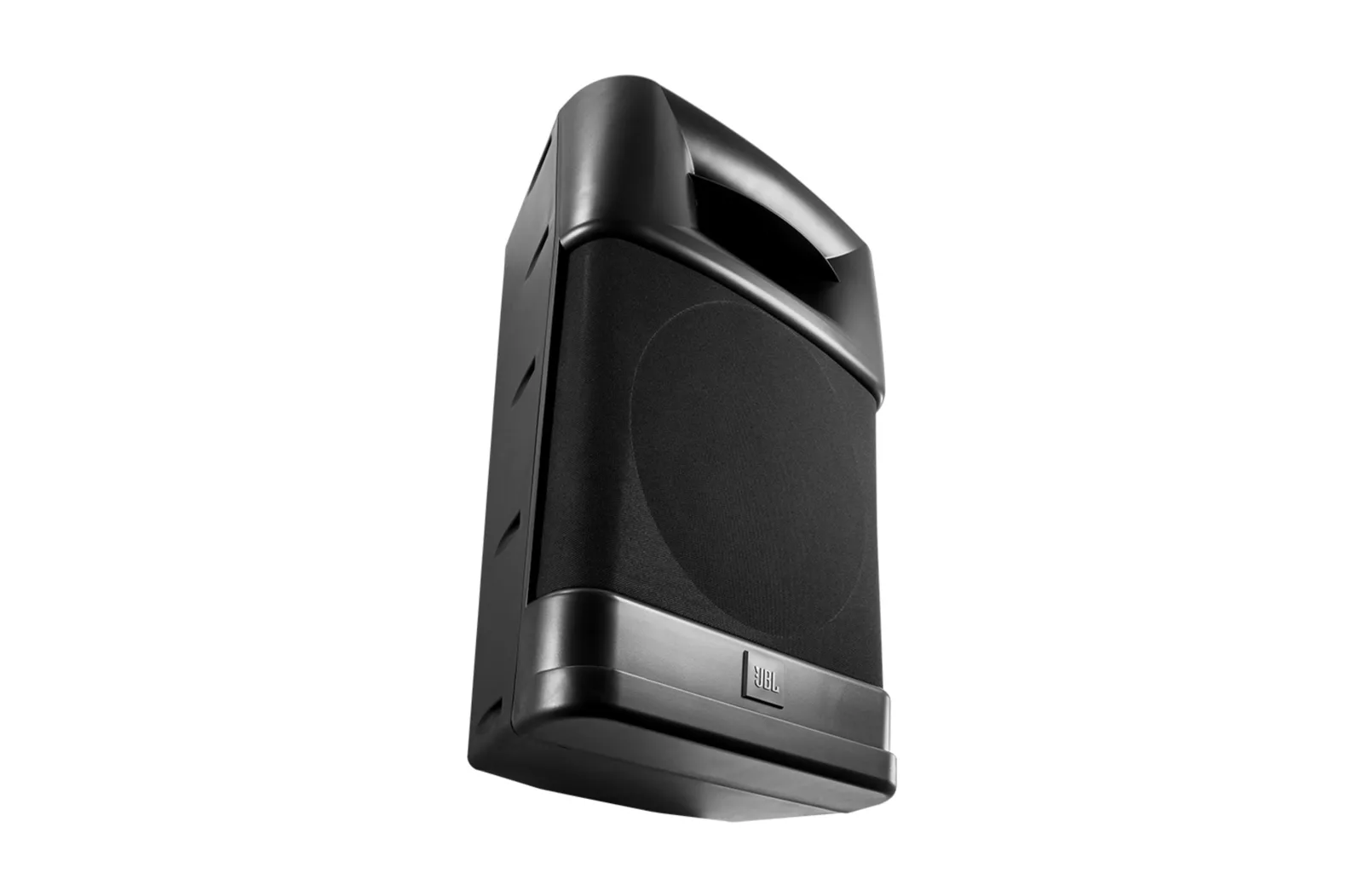

View larger image of JBL 9300 — official product photo
22 attributes
| Attribute | Value |
|---|---|
| Model | 9300 |
| Frequency Response (±3 dB) | 60Hz – 20kHz |
| Frequency Range (-10dB) | 50Hz – 25kHz |
| Coverage Pattern | 110º × 60º asymmetric >2kHz |
| Power Rating | 30v @ 100hrs, 40v @ 2hrs, IEC/Pink 250W continuous pink noise |
| Sensitivity | 96dB |
| Maximum SPL (1m) | 120dB continuous, 126dB peak |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 7Ω @ 200Hz |
| Crossover Frequencies | 2800Hz |
| Low Frequency | 610H |
| High Frequency | 2414H-1 |
| System Polarity | Woofer (IEC), HF (JBL) |
| System Protection | Network only |
| System Input Type | Banana |
| Enclosure Volume | 1700 sq in. (unoccupied) |
| Dimensions (H x W x D) | 22” x 16” x 11” |
| Net Weight (each) | 21 lbs (9.53 kg) |
| Horizontal Coverage Angle (-6dB) | 110º asymmetric >2kHz |
| Vertical Coverage Angle (-6dB) | 60º asymmetric >2kHz |
| Power Handling (2Hr AES Rating) | 250 W |
| Downward Firing Angle | 15° for enclosure face |
