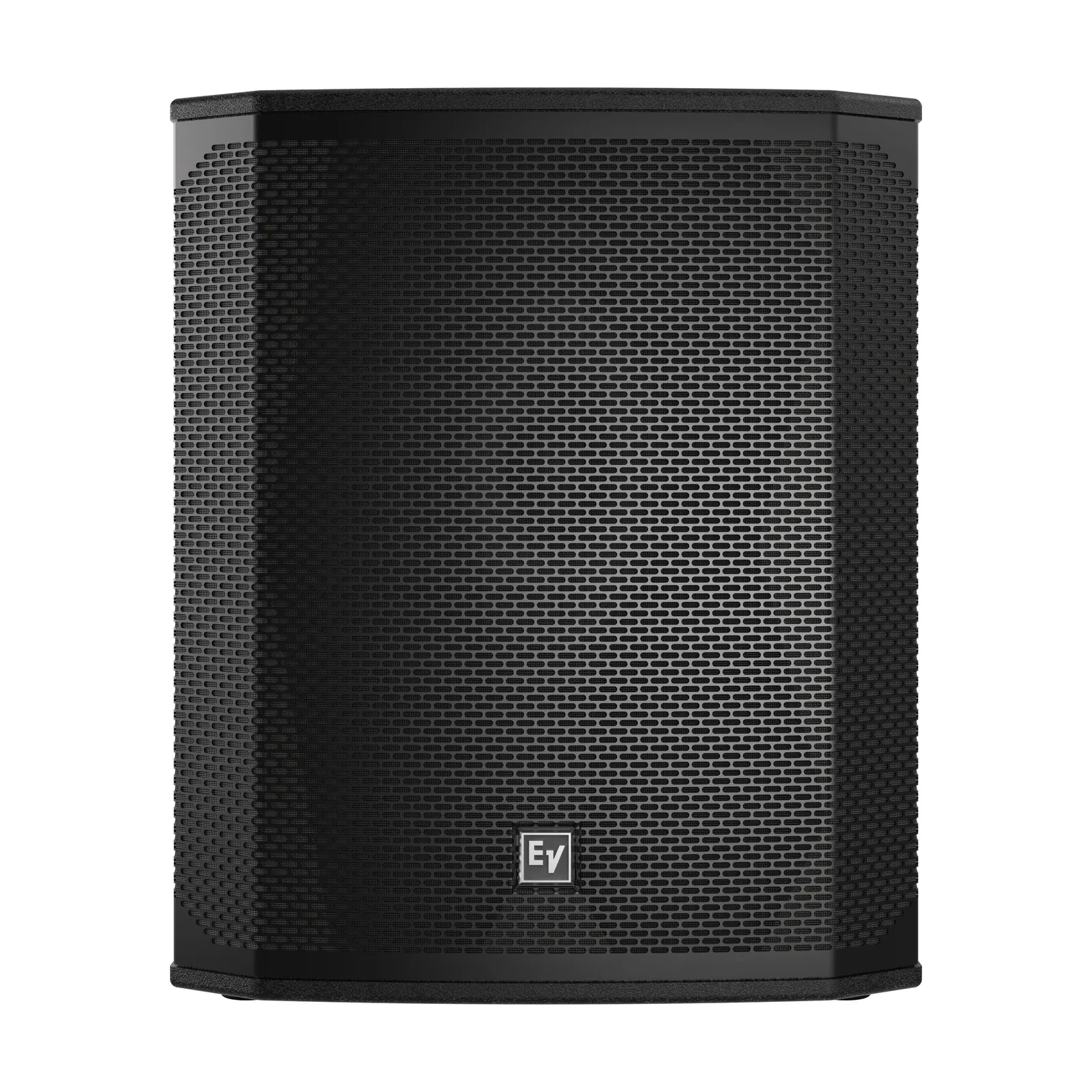

View larger image of Electro-Voice ELX200-18S — front view
28 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ELX200 |
| Model | ELX200-18S |
| Material Number | F.01U.361.345 |
| Max SPL | 133 dB |
| Frequency Response | 45 Hz - 200 |
| Frequency Range (-10 dB) | 28 Hz - 300 Hz |
| Sensitivity | 94 |
| LF transducer size (in) | EVS-18L 457 mm (18 in) |
| Woofer Size | 18 |
| Element Type | EVS-18L 457 mm (18 in) |
| Power handling (continuous) (W) | 400W/1600 |
| Power Handling | 400W/1600 |
| Nominal Impedance | 8 |
| Minimum Impedance | 7.2 Ω |
| Recommended HPF | 35 Hz |

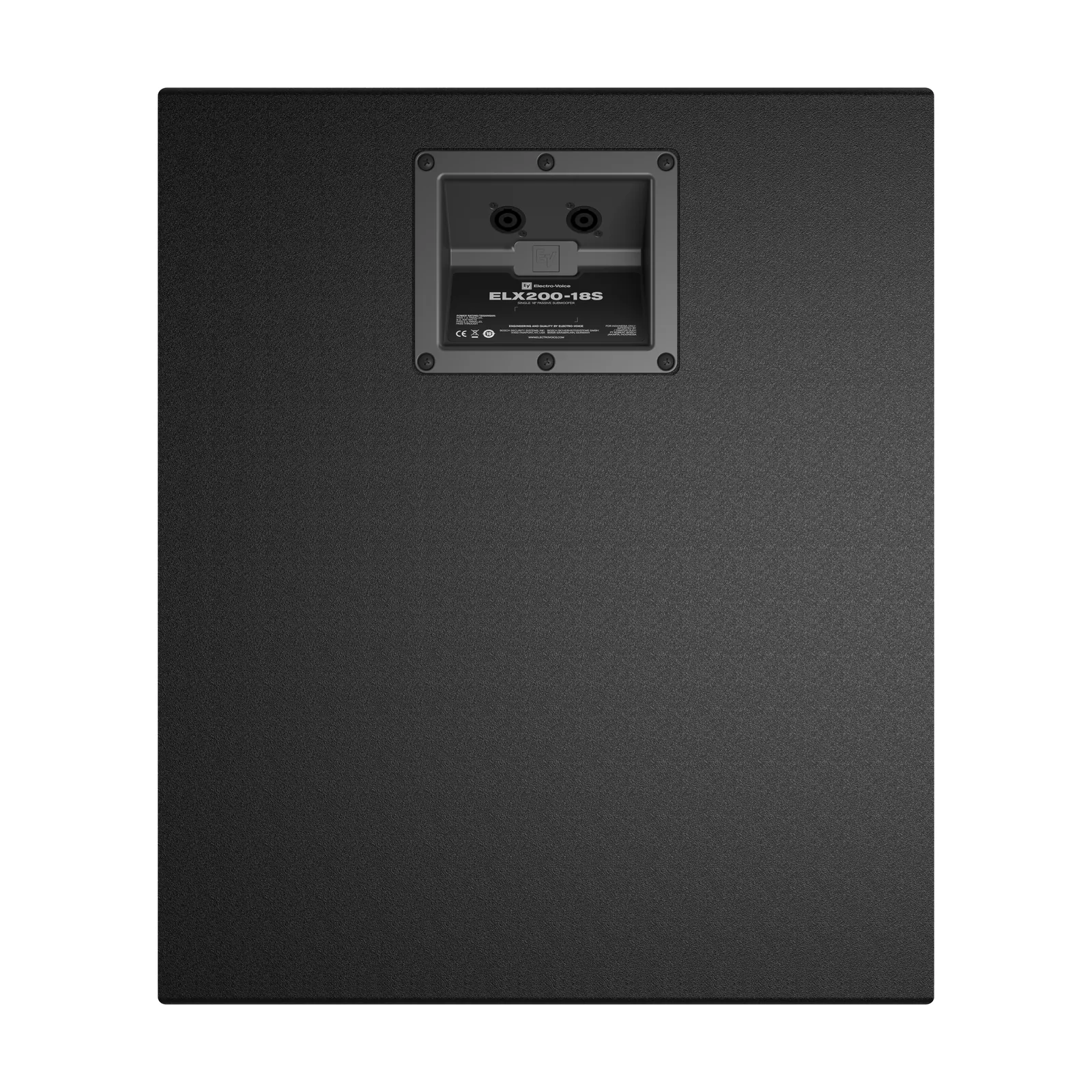

| Connectivity | Dual NL4 |
| Color | Black or White |
| Enclosure | 15 mm plywood with durable polyurea top-coat finish |
| Grille | 18 AWG steel with powdercoat |
| Height | 600 |
| Width | 507 |
| Net weight | 26.6 |
| Shipping Weight | 30.5 |
| Dimension depth (mm) | 574 |
| Dimension height (mm) | 600 |
| Dimension width (mm) | 507 |
|---|
| Series / Family | ELX200 |
|---|
