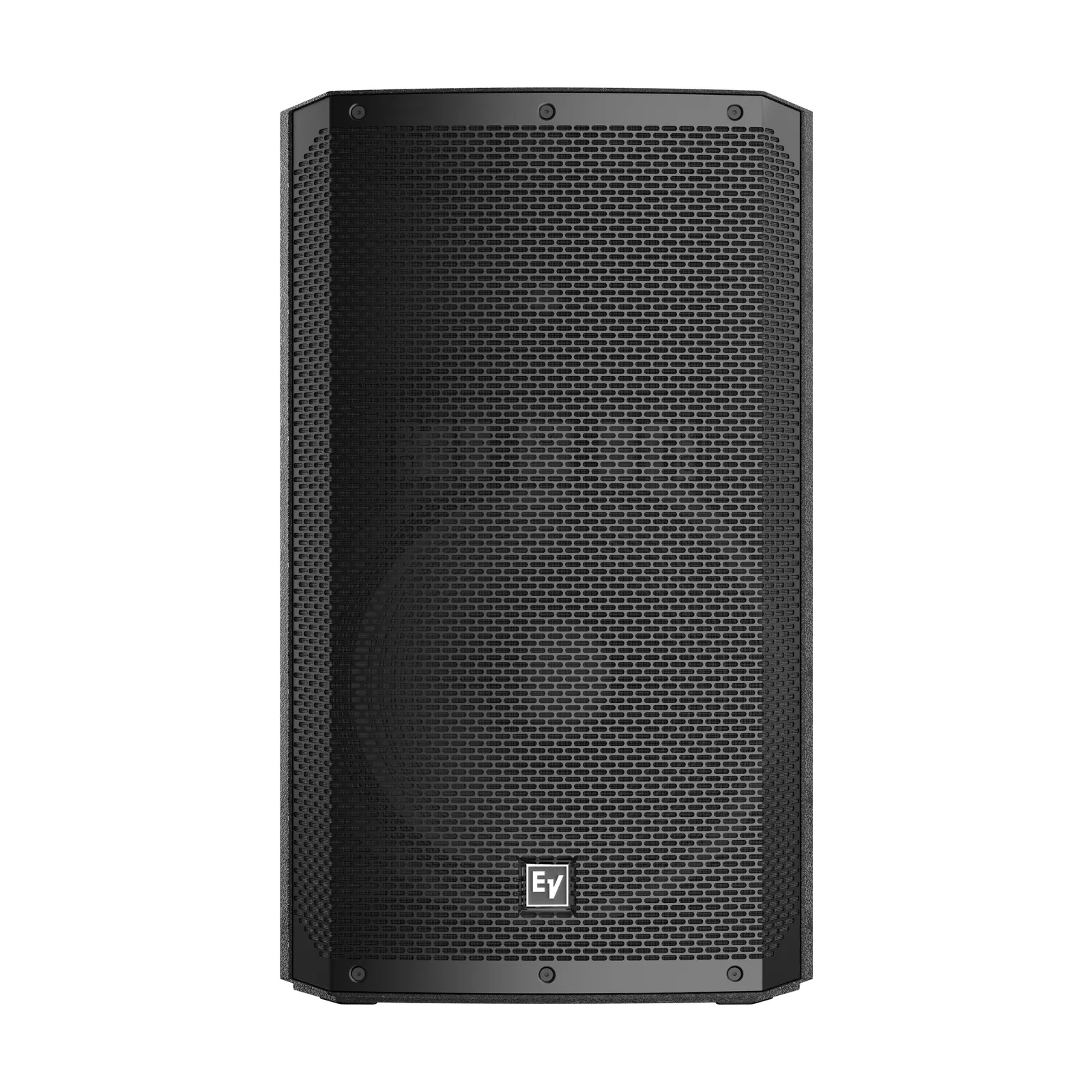

View larger image of Electro-Voice ELX200-15 — front view
26 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ELX200 |
| Model | ELX200-15 |
| Material Number | F.01U.361.348 |
| Max SPL | 130 dB |
| Frequency Response | 77 Hz - 16 kHz |
| Frequency Range (-10 dB) | 52 Hz - 19 kHz |
| Coverage Angle | 90 × 60 |
| Sensitivity | 95 dB |
| Sensitivity (1W/1m) | 95 dB |
| LF transducer size (in) | 15 |
| Element Type | DH-1L 1-inch titanium compression driver |
| Power Handling | 300 W Continuous, 1200 W Peak |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7 Ω |
| Recommended HPF | 42 Hz |
| Connectivity | Dual NL4 |
| Color | Black or white |
| Enclosure | Polypropylene |
| Grille | 18 AWG steel with powdercoat |
| Suspension / Rigging | (3) M10 suspension points |
| Mounting Type | (3) M10 suspension points |
| Net weight | 18.7 kg (41.2 lb) |
| Shipping Weight | 21.4 kg (47.2 lb) |
| Dimensions (H x W x D) (mm) | 710 mm x 423 mm x 384 mm |
| Series / Family | ELX200 |
|---|
