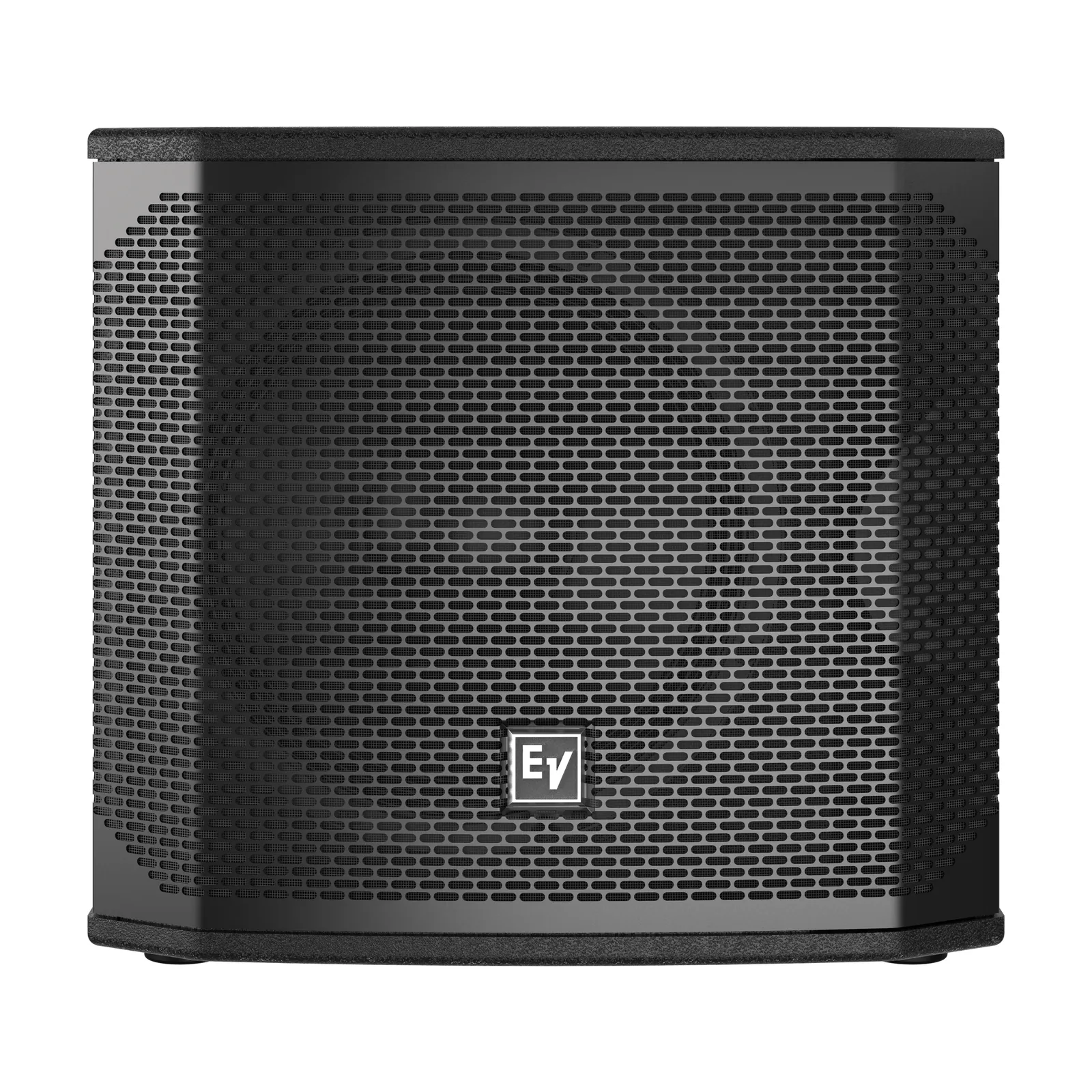

View larger image of Electro-Voice ELX200-12S — front view
28 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ELX200 |
| Model | ELX200-12S |
| Material Number | F.01U.361.344 |
| Max SPL | 129 dB |
| Frequency Response | 42 Hz - 220 |
| Frequency Range (-10 dB) | 33 Hz - 300 Hz |
| Sensitivity | 93 |
| LF transducer size (in) | EVS-12L 300 mm (12 in) |
| Woofer Size | 12 |
| Element Type | EVS-12L 300 mm (12 in) |
| Power handling (continuous) (W) | 400 W/1600 |
| Power Handling | 400 W/1600 |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.9 Ω |
| Recommended HPF | 42 |
| Connectivity | Dual NL4 |
| Color | Black or White |
| Enclosure | 15 mm plywood with durable polyurea top-coat finish |
| Grille | 18 AWG steel with powdercoat |
| Height | 397 |
| Width | 445 |
| Net weight | 20.2 |
| Shipping Weight | 20.2 |
| Dimension depth (mm) | 457 |
| Dimension height (mm) | 397 |
| Dimension width (mm) | 445 |
|---|
| Series / Family | ELX200 |
|---|
