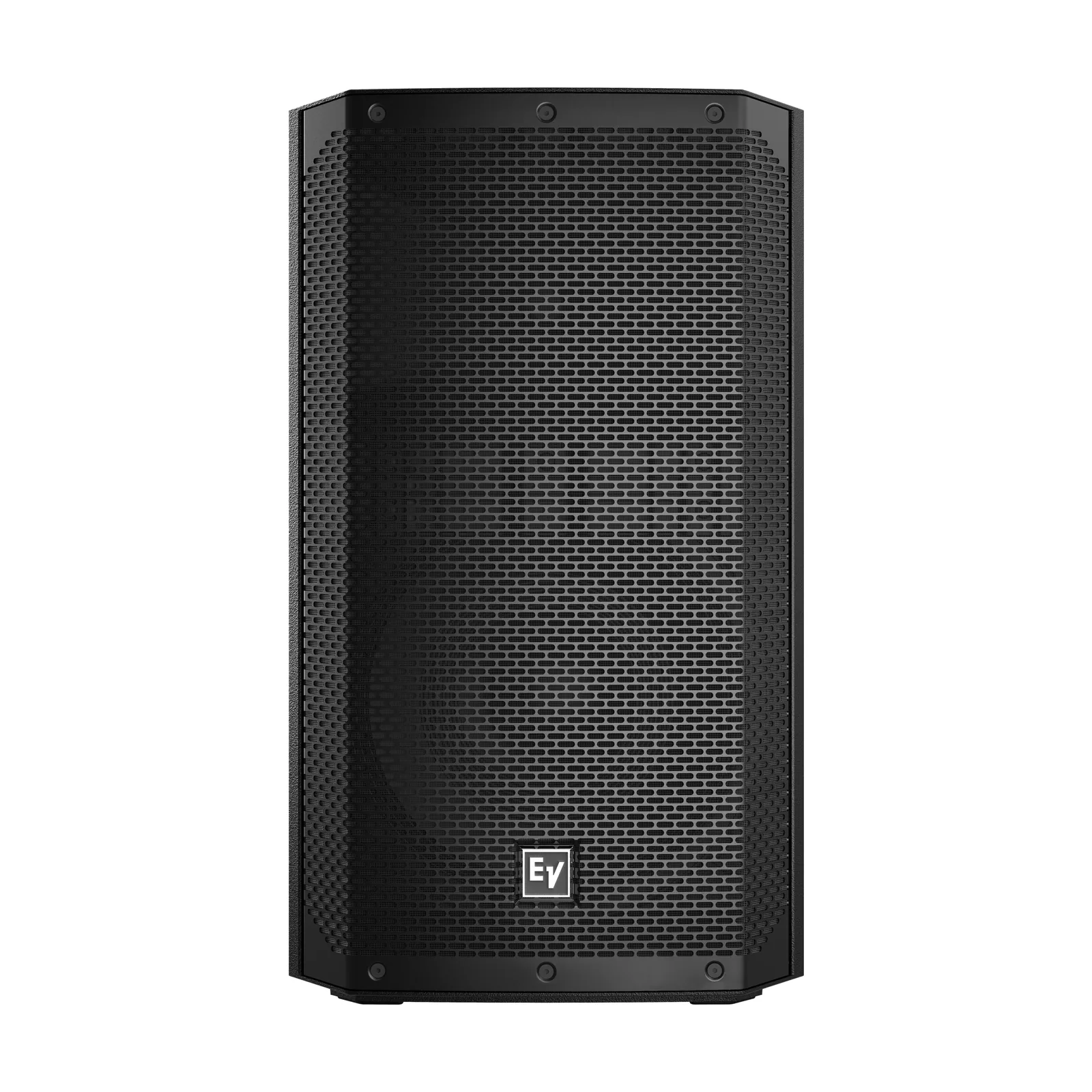

View larger image of Electro-Voice ELX200-12 — front view
25 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ELX200 |
| Model | ELX200-12 |
| Material Number | F.01U.361.347 |
| Max SPL | 128 dB |
| Frequency Response | 77 Hz - 17 kHz |
| Frequency Range (-10 dB) | 51 Hz - 20 kHz |
| Coverage Angle | 90 × 60 |
| Sensitivity | 93 dB |
| LF transducer size (in) | 12 |
| Element Type | DH-1L 1-inch titanium compression driver |
| Power Handling | 300 W Continuous, 1200 W Peak |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.5 Ω |
| Recommended HPF | 50 Hz |
| Connectivity | Dual NL4 |
| Color | Black or white |
| Enclosure | Polypropylene |
| Grille | 18 AWG steel with powdercoat |
| Suspension / Rigging | (3) M10 suspension points |
| Mounting Type | (3) M10 suspension points |
| Net weight | 15.2 kg (33.4 lb) fessional and in complete compliance with local, |
| Shipping Weight | 17.1 kg (37.7 lb) |
| Dimensions (H x W x D) (mm) | 629 mm x 363 mm x 344 mm tro-Voice products should be suspended with certi- |
| Series / Family | ELX200 |
|---|
