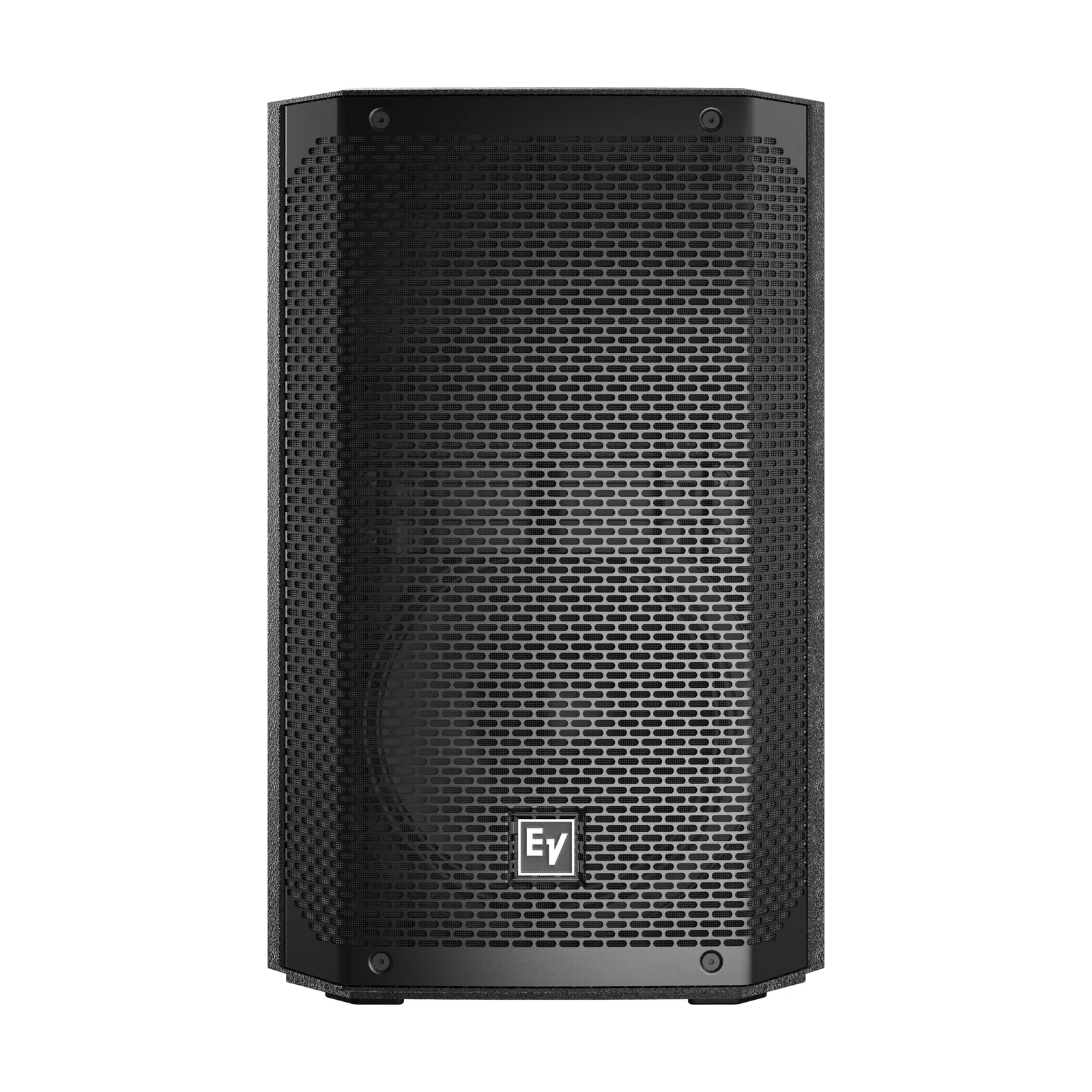

View larger image of Electro-Voice ELX200-10 — front view
26 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ELX200 |
| Model | ELX200-10 |
| Material Number | F.01U.361.346 |
| Max SPL | 127 dB |
| Frequency Response | 65 Hz - 20 kHz |
| Frequency Range (-10 dB) | 49 Hz - 22 kHz |
| Coverage Angle | 90 × 60 |
| Sensitivity | 90 dB |
| Sensitivity (1W/1m) | 90 dB |
| LF transducer size (in) | 10 |
| Element Type | DH-1L 1-inch titanium compression driver |
| Power Handling | 300 W Continuous, 1200 W Peak |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.2 Ω |
| Recommended HPF | 55 Hz |
| Connectivity | Dual NL4 |
| Color | Black or white |
| Enclosure | Polypropylene |
| Grille | 18 AWG steel with powdercoat |
| Suspension / Rigging | (3) M10 suspension points |
| Mounting Type | (3) M10 suspension points |
| Net weight | 13.4 kg (29.6 lb) |
| Shipping Weight | 15.3 kg (33.7 lb) |
| Dimensions (H x W x D) (mm) | 531 mm x 330 mm x 319 mm |
| Series / Family | ELX200 |
|---|
