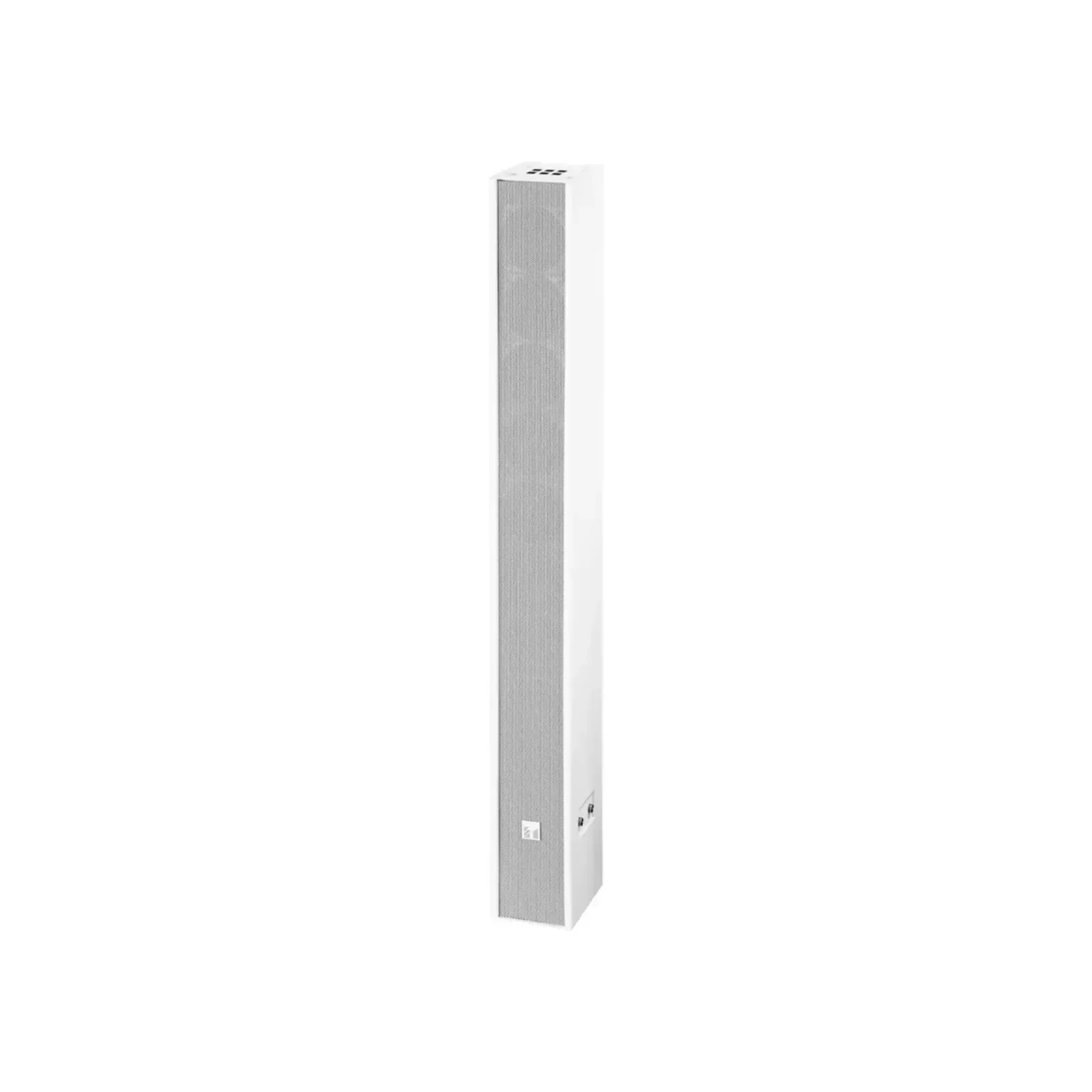

TOA TZ-S60W AS Slim Array Speaker | Sai Enterprises AV Solutions

Features

90° horizontal x 0° vertical directivity control
Low impedance and high impedance selectable by a rotary switch
Accessory speaker brackets provide installation flexibility
TZ-S60W x 2pcs can be stacked for wider coverage

Specifications

17 attributes

Attribute	Value
Model	TZ-S60W AS
Enclosure	Bass Reflex Type
Maximum Input Level	120 W (Continuous pink noise)
Rated Input	60 W
Rated Impedance	Low Impedance: 8Ω 100 V line: 167 Ω (60 W), 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W): Selectable
Sensitivity	95 dB (1 W, 1 m)
Frequency Response	180 Hz - 15,000 Hz
Directivity Angle	Horizontal: 90° / Vertical: 0°
Speaker Component	8 cm (3") cone-type × 9
Impedance Change	Rotary Switch (Selectable)
Connection	Push-In Terminals
Operating Temperature	-10 °C - +50 °C
Finish	Enclosure: MDF, Wet Paint, White
Dimensions	100 (W) × 883 (H) × 130 (D) mm
Weight	8.2 kg (unit only)
Included Accessories	Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 15) (with plain washer and spring washer) x 4
Optional Accessories	HY-S60W: Side Stack Bracket x 2, Rear Stack Bracket x 1
