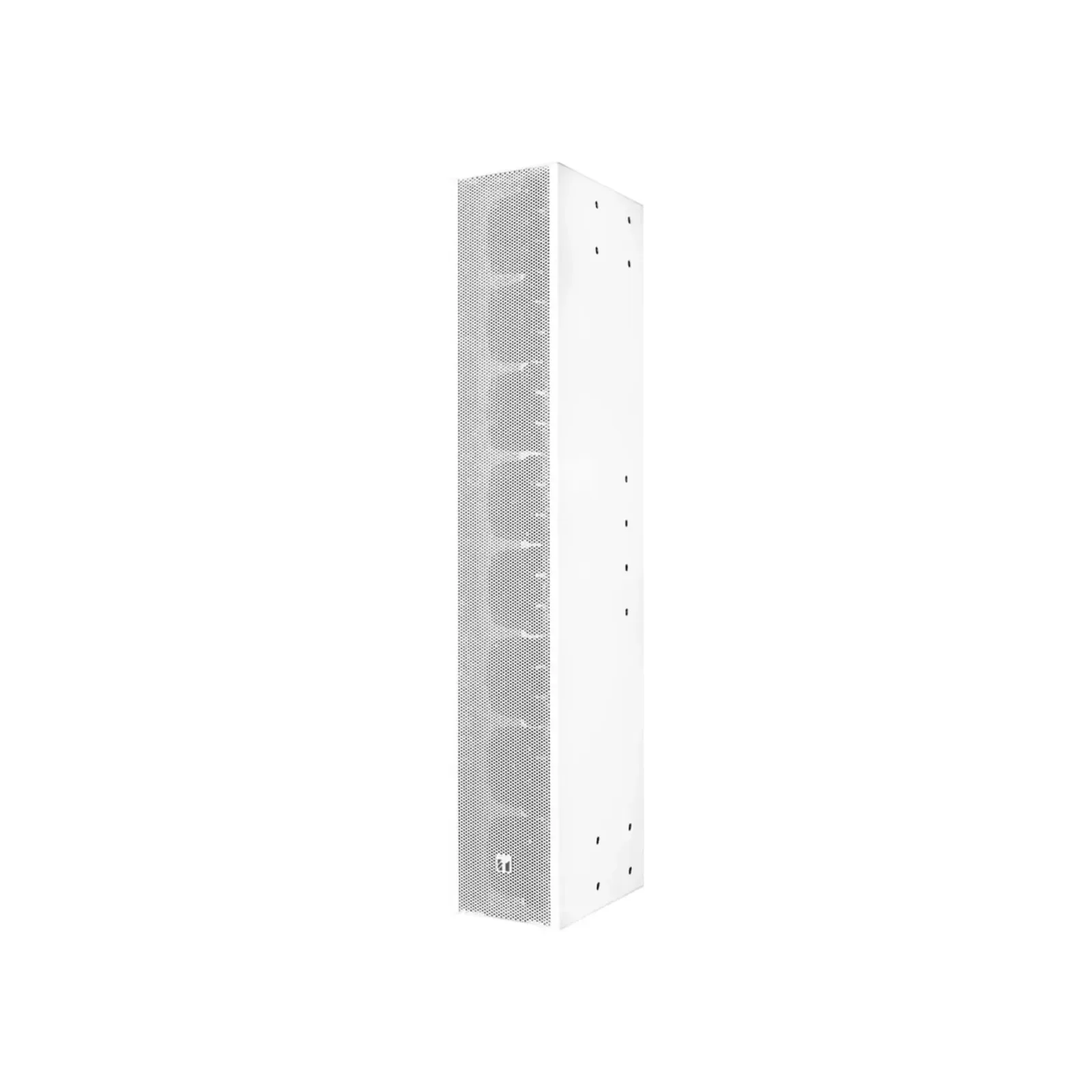

View larger image of TOA TZ-S240W-AS — official product photo
16 attributes
| Attribute | Value |
|---|---|
| Model | TZ-S240W-AS |
| Enclosure | Bass Reflex Type |
| Maximum Input Level | Continuous : 240 W Program : 480 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 94 dB (1 W, 1 m) |
| Frequency Response | 95 Hz - 20,000 Hz |
| Crossover Frequency | 2,500 Hz |
| Directivity Angle | Horizontal: 100°, Vertical: 5° |
| Speaker Component | Low Frequency : 10 cm (4") cone-type woofer × 8 High Frequency : 2.5 cm (1") Balanced Dome Tweeter x 24 |
| Connection | M4 Screw Terminal x 2 |
| Operating Temperature | -10 °C - +50 °C |
| Finish | Enclosure: White Painted MDF Board Grille: White Painted SPCC Punched Net |
| Dimensions | 160 (W) × 950 (H) × 262 (D) mm |
| Weight | 17 kg |
| Included Accessories | Mounting Bracket x 2 |
| Optional Accessories | Flying Bracket: SR-FB4 Wall Tilt Bracket: SR-TB4 Extension Plate: SR-EP4 Wall Mounting Bracket: SR-WB4 Stand Adaptor: SR-SA4 Floor Stand: SR-FS4 Matching Transformer: MT-S0601 (For high impedance) |
