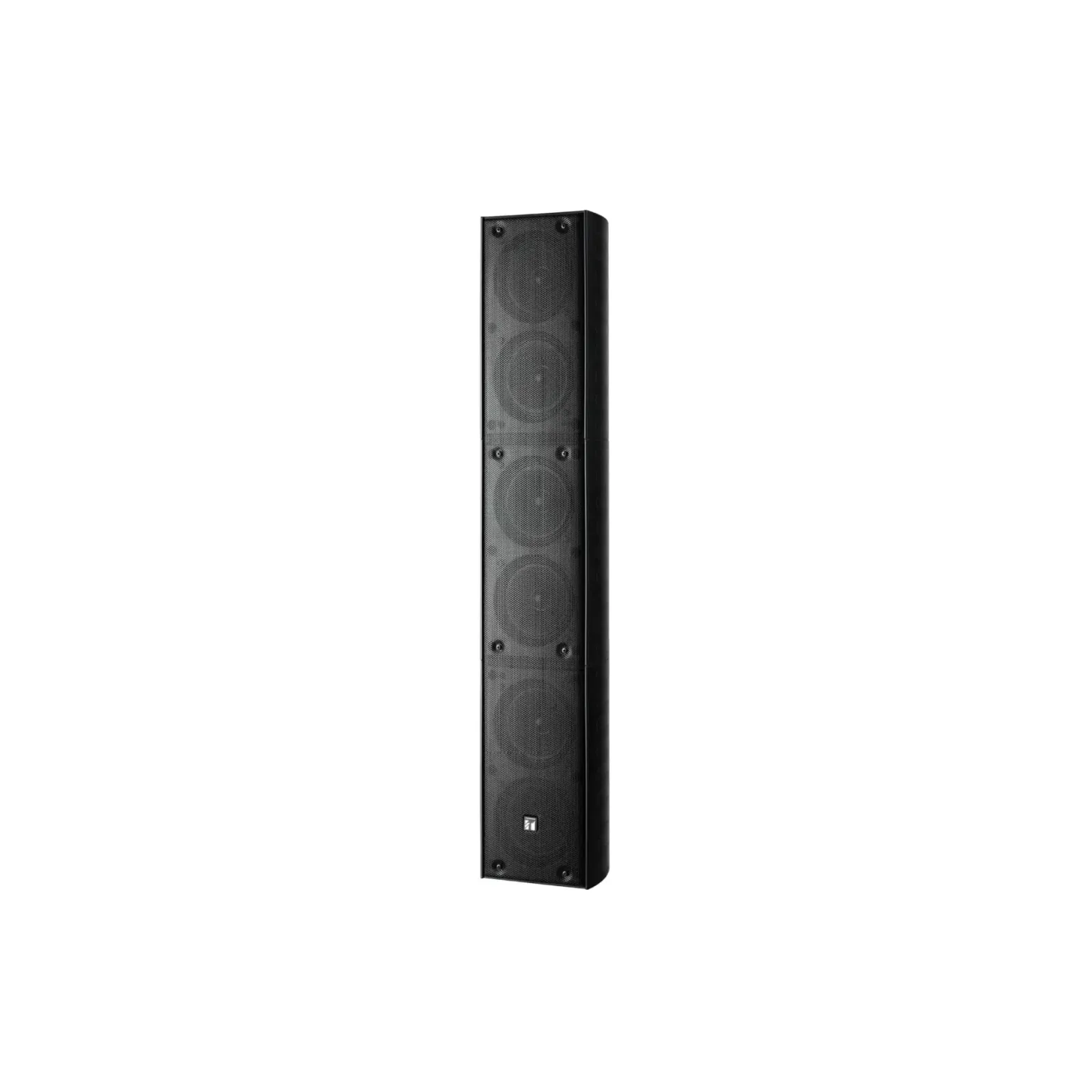

View larger image of TOA TZ-606BWP AS — official product photo
13 attributes
| Attribute | Value |
|---|---|
| Model | TZ-606BWP AS |
| Enclosure | Sealed Type |
| Rated Input | 60 W |
| Rated Impedance | 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1.3 kΩ (3.8 W) |
| Sensitivity | 94 dB (1 W, 1 m) |
| Frequency Response | 150 Hz - 13,000 Hz |
| Speaker Component | 10 cm (4") PP cone type x 6 |
| Input Terminal | Push-In terminal |
| Finish | Enclosure: HIPS, black, paint Punched Net: Surface-tread steel plate, black, paint Speaker Bracket: Aluminum die-cast, black, paint Joint Bracket, Wall Bracket: Steel plate, t:1.6mmm, black, paint (ED coating) |
| Dimensions | 135 (W) x 746 (H) x 128 (D) mm (5.31" x 29.37" x 5.04") |
| Weight | 5.5 kg (12.12 lbs.) unit only |
| Included Accessories | Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 20) (with plain washer and spring washer) x 2, Hexagon Bolt (M8x 15) x 1, Tapping screw(4x12) x 4, Terminal Cover x 1 |
| Optional Accessories | Speaker Stand: ST-16A |
