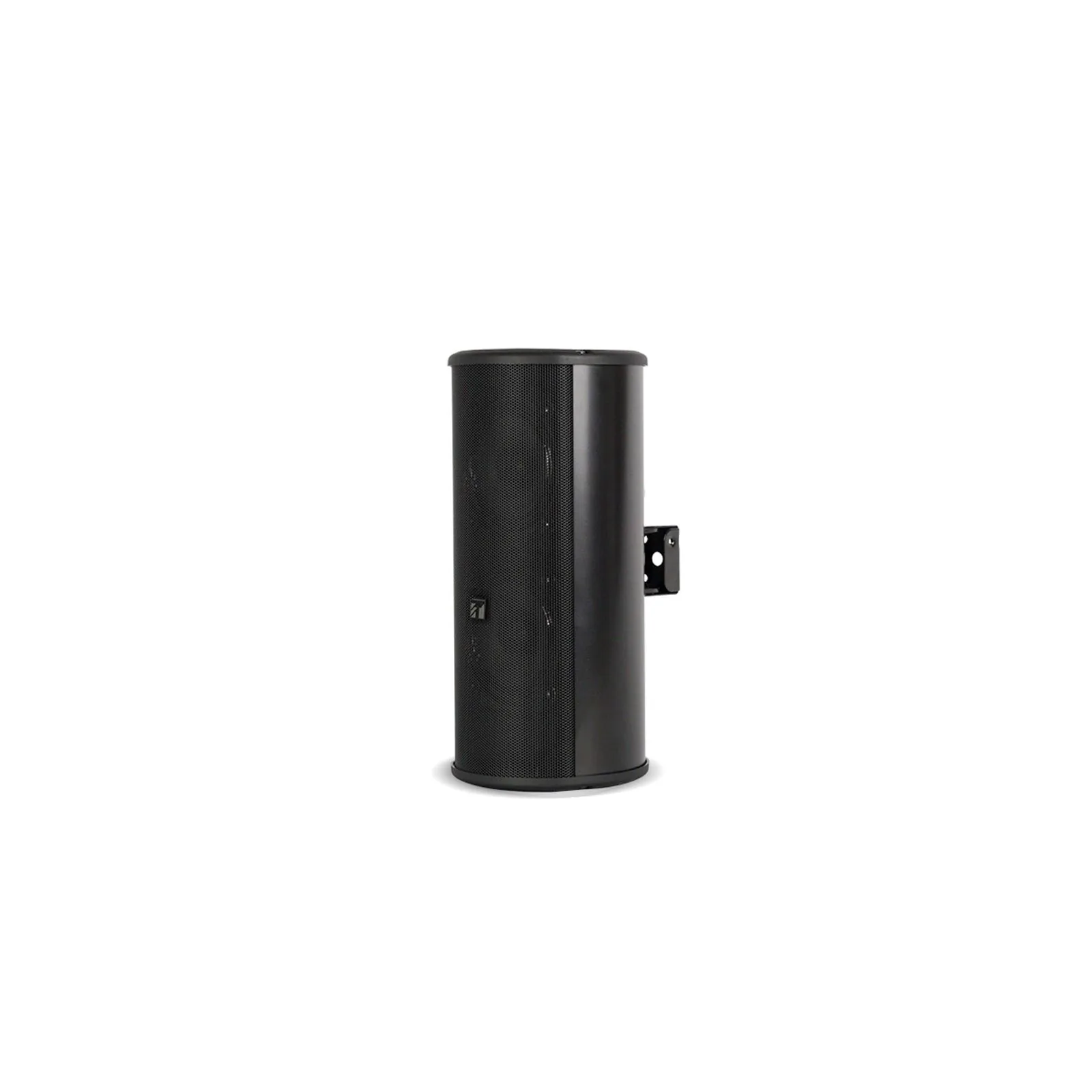

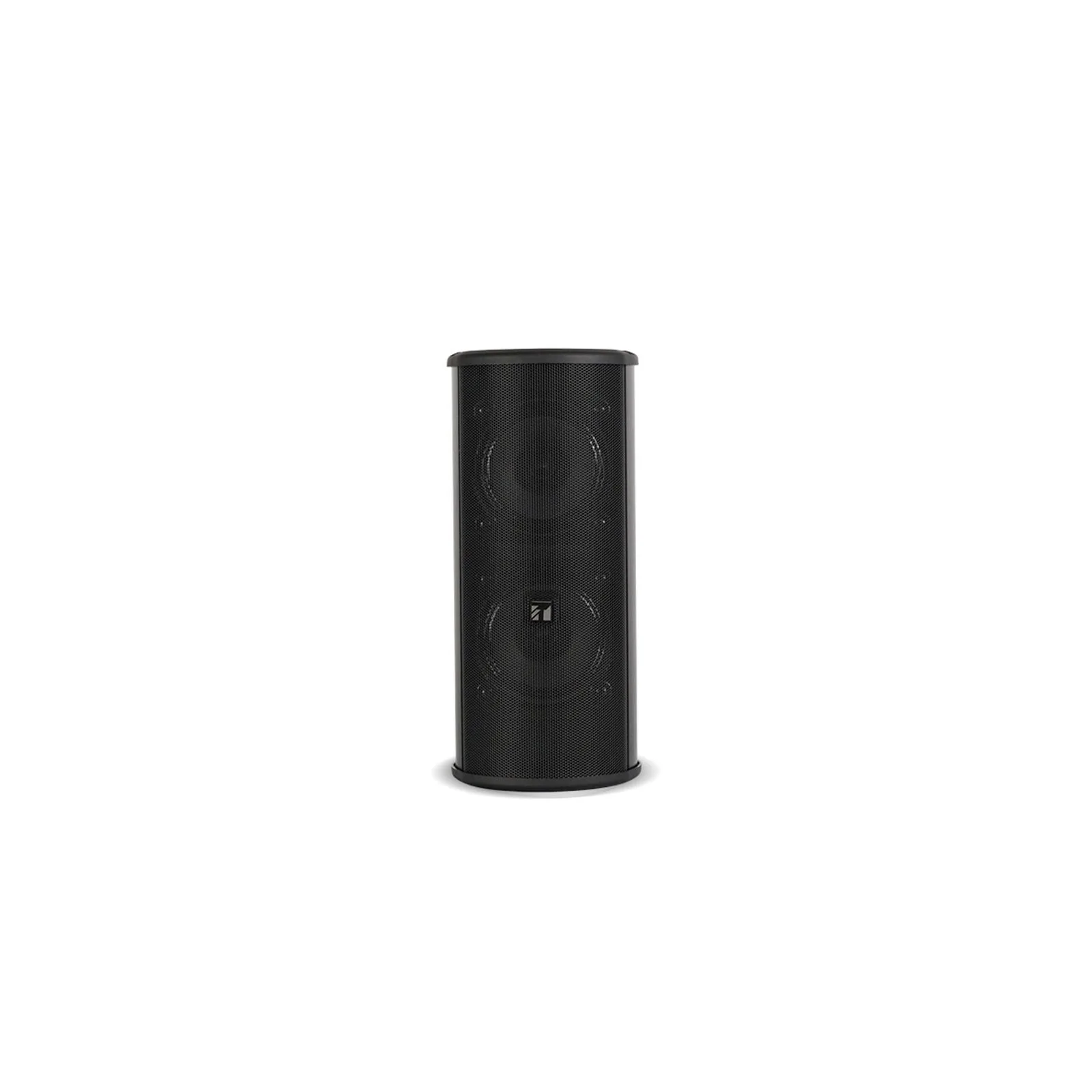

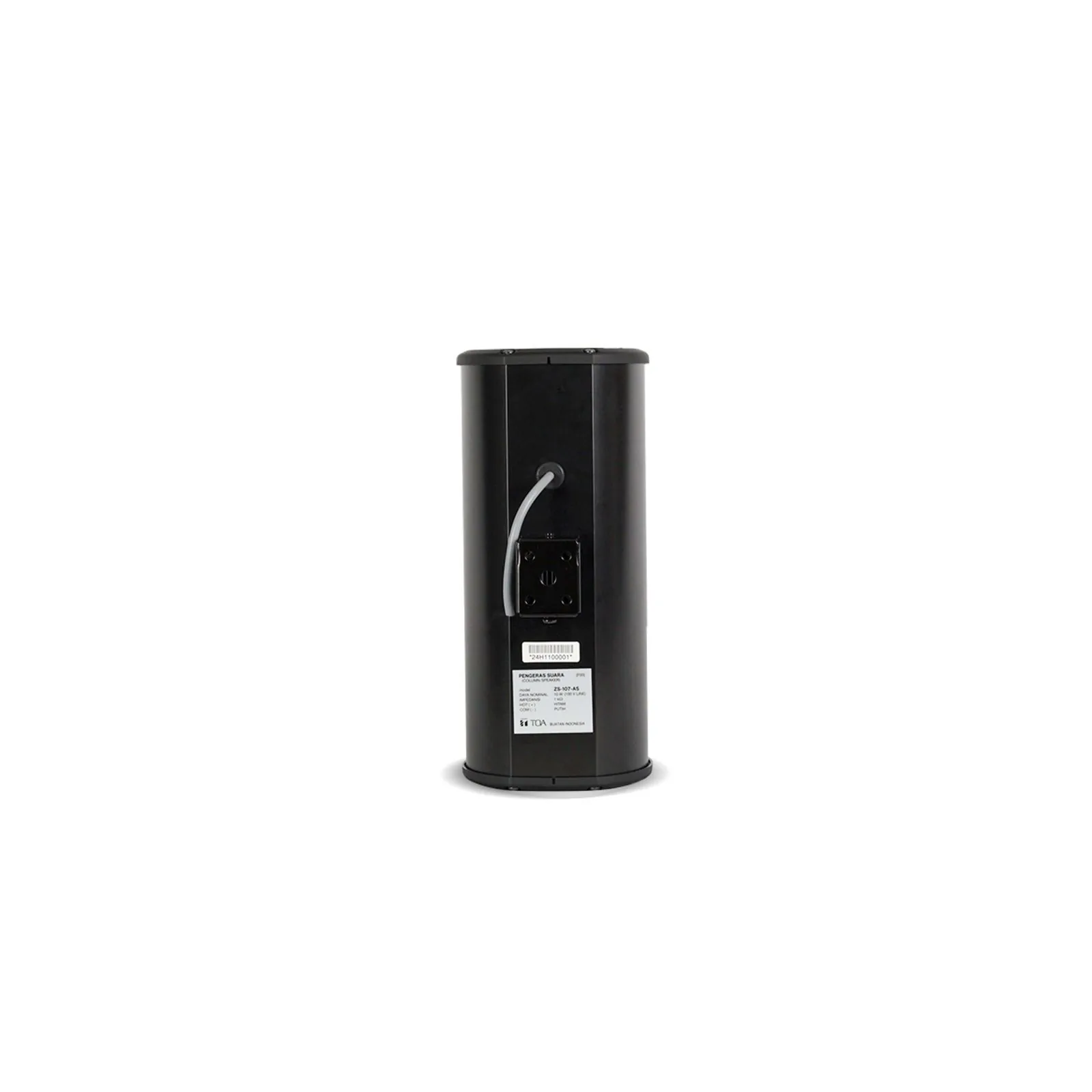

View larger image of TOA TZ-107-AS — official product photo
13 attributes
| Attribute | Value |
|---|---|
| Model | TZ-107-AS |
| Rated Input | 10 W (Max 15 W) |
| Rated Impedance | 100 V line: Hot 1 kΩ - black, Com - White |
| Sound Pressure Level | 93 dB (1W, 1m) |
| Frequency Response | 80 to 12 kHz |
| Directivity Angle | Horizontal: 200° (1 kHz); 98° (4 kHz) Vertical: 110° (1 kHz); 26° (4 kHz) |
| Speaker Component | 10 cm Cone-type x 2 |
| Connection | Speaker cord (2-core cabtyre cord ø6 mm (0.24"), gray) |
| Dust/Water Protection | IP44 |
| Finish | Enclosure Case: Extrude Aluminum, black, paint Side Panel: Resin, black, paint Punched Net: Surface treated steel plate, black, paint |
| Dimensions | 140 (W) x 315 (H) x 140 (D) mm (5.51" x 12.40" x 5.51") |
| Weight | 2.2 kg (4.85 lb) |
| Included Accessories | Speaker Bracket x 1, Wall Bracket x 1, BH Screw M5x60 Fe Blk 3-SEMS x 1 |
