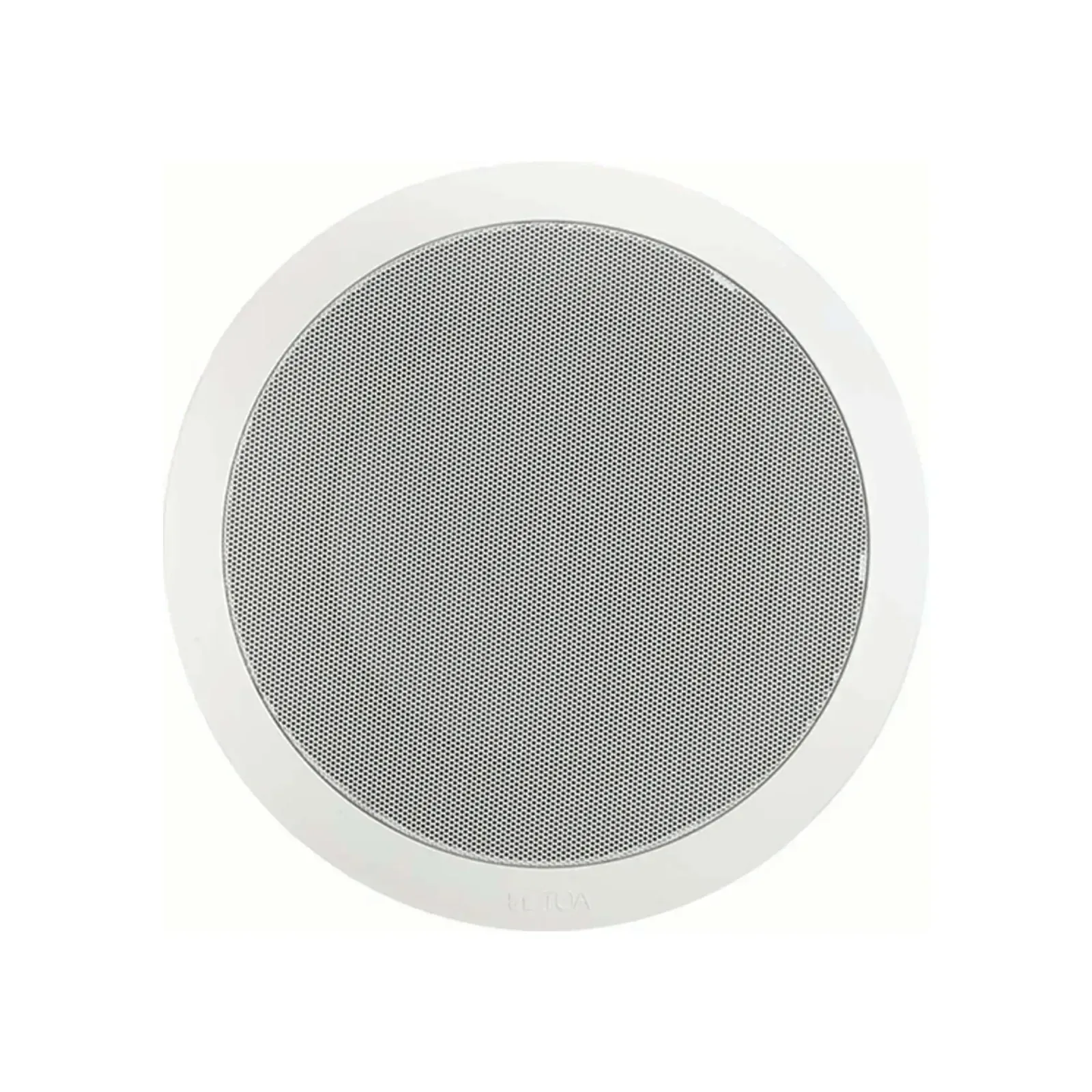

View larger image of TOA PC-668R-AS — official product photo
12 attributes
| Attribute | Value |
|---|---|
| Model | PC-668R-AS |
| Rated Input | 15 W (100 V, 70 V Line) |
| Rated Impedance | 100 V Line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V Line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W) |
| Sensitivity (1W, 1m) | 96 dB (Pink Noise 500 Hz- 5 kHz) |
| Frequency Response | 65 Hz - 20 kHz (at 20 dB below peak SPL) |
| Speaker Component | 20 cm (8") double cone-type |
| Dimensions for Fixing Hole | Mounting hole: Ø 250 ± 5mm (Ø 9.84" ± 0.2") Ceiling thickness 5 - 25 mm (0.20" - 1.98") |
| Speaker Mounting Method | Spring Clamp |
| Finish | Panel: Polypropylene resin, traffic-white (RAL 9016 or equivalent color) Grille: Surface-treated Steel Plate Net, traffic-white (RAL 9016 or equivalent color), paint |
| Dimensions | Ø 280 x 90 (D) mm (Ø 11.02" x 3.54") |
| Weight | 960 g (2.12 lb) |
| Included Accessories | Paper pattern x 1 |
