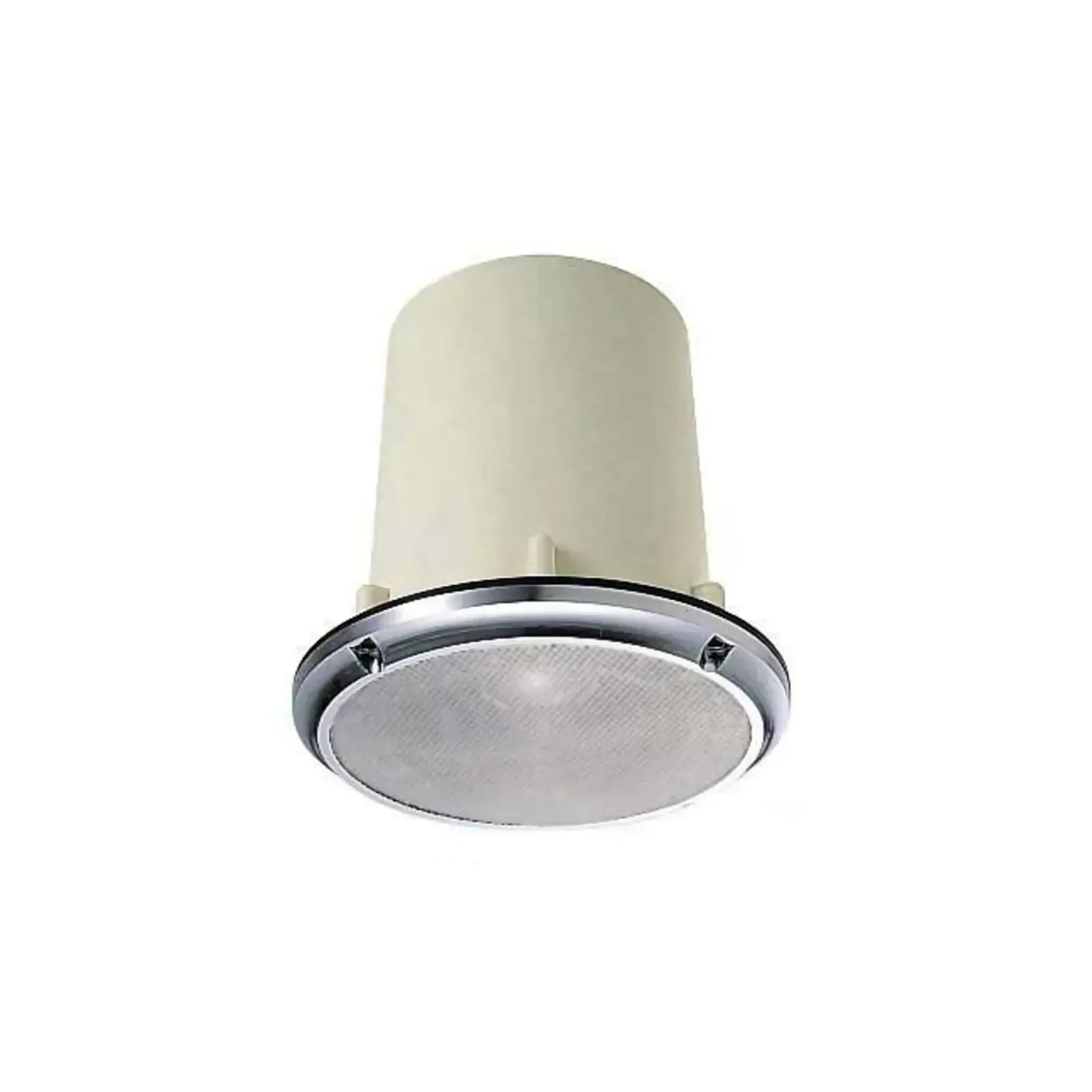

View larger image of TOA PC-5CL — official product photo
14 attributes
| Attribute | Value |
|---|---|
| Model | PC-5CL |
| Enclosure | Completely sealed type |
| Rated Input | 5 W |
| Rated Impedance | 100 V line: 2 kΩ (5 W), 70 V line: 2 kΩ (2.5 W) |
| Sensitivity | 87 dB (1 W, 1 m) |
| Frequency Response | 150 Hz - 20 kHz |
| Speaker Component | 8 cm cone-type (vibration section : high molecular substance) |
| Mounting Hole | Ø98 mm |
| Dust Particle Prevention | No dust particle is produced by the method set out in JIS B-9926. |
| Operating Temperature | -20 °C to +55 °C |
| Finish | Panel : Alloy-coated ABS resin Enclosure : ABS resin, off-white Punching net : Stainless steel Exposed fixing screw : Stainless steel |
| Dimensions | Ø116 x 104 (D) mm |
| Weight | 620 g |
| Included Accessories | Fixing gasket …1, Ceiling mounting screws (Material:Stainless steel) …4 |
