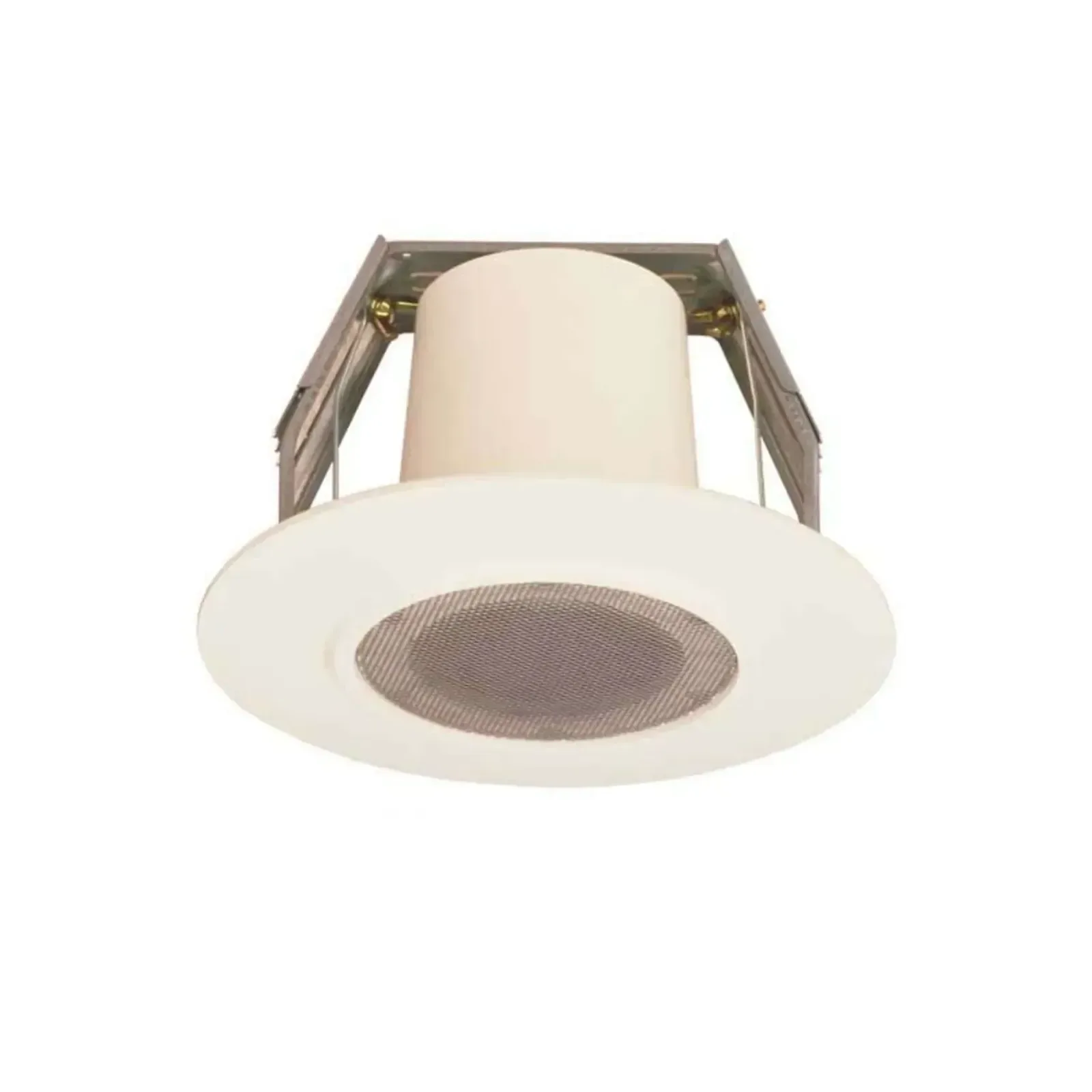

View larger image of TOA PC-3WR — official product photo
11 attributes
| Attribute | Value |
|---|---|
| Model | PC-3WR |
| Rated Input | 3 W, 1 W |
| Rated Impedance | 3.3 kΩ (3 W), 10 kΩ (1 W) |
| Sound Pressure Level | 88 dB (1 W, 1 m) |
| Frequency Response | 180 Hz - 20 kHz |
| Dimensions for Fixing Hole | Ø150 mm (The speaker can be mounted to the ceiling panel with thickness of up to 50 mm) |
| Dust/Water Protection | IP64 |
| Operating Temperature | -10 °C to +50 °C |
| Finish | Frame and case: ABS resin, off-white Punching net: stainless steel |
| Dimensions | Ø180 x 120 (D) mm |
| Weight | 700 g |
