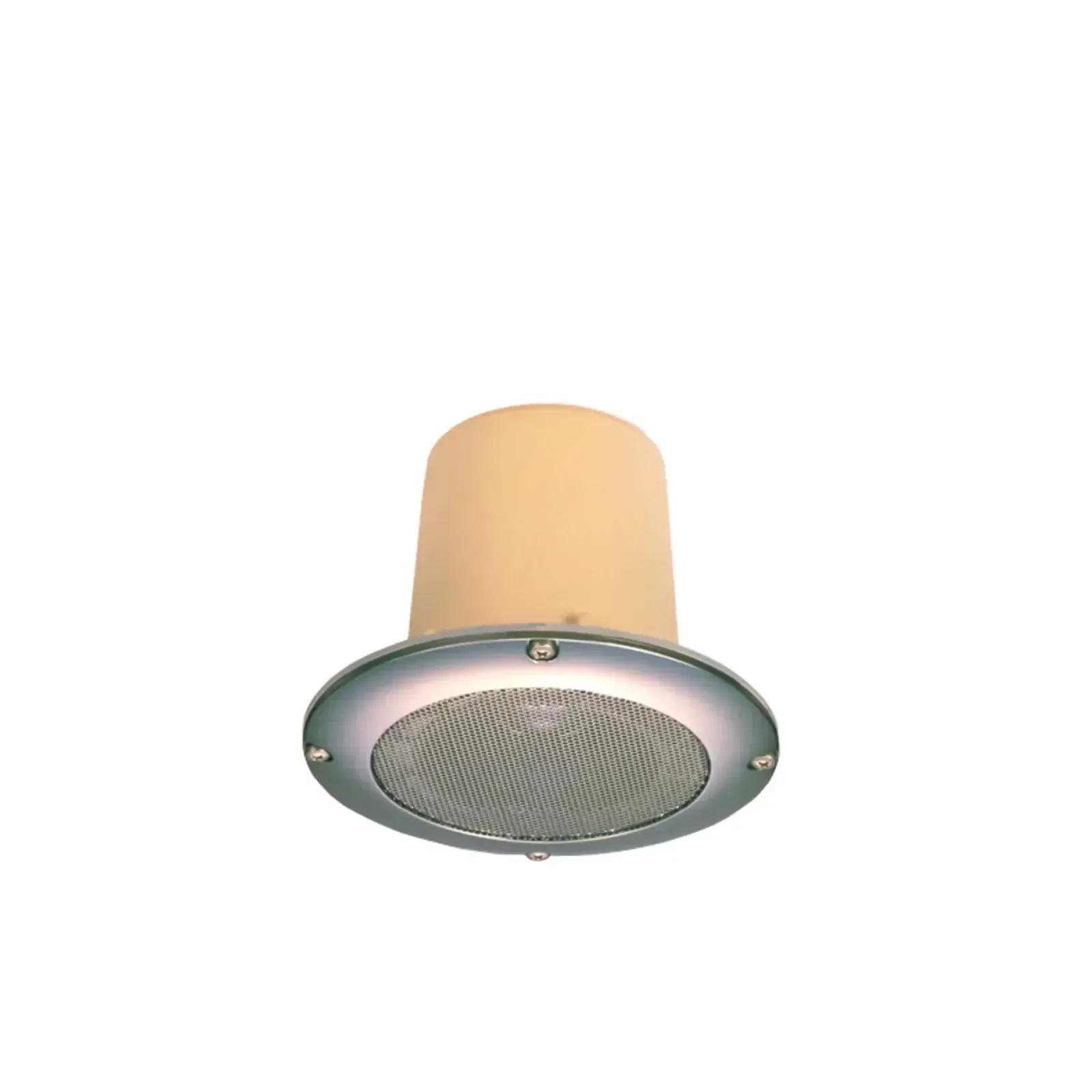

View larger image of TOA PC-3CL — official product photo
14 attributes
| Attribute | Value |
|---|---|
| Model | PC-3CL |
| Rated Input | 3 W |
| Rated Impedance | 100 V line: 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 87 dB (1 W, 1 m) |
| Frequency Response | 150 Hz - 20 kHz |
| Speaker Component | 8 cm cone-type (vibration section: high molecular substance) |
| Mounting Hole | Ø100 mm (Ceiling panel: Must be over 5 mm in thickness, equivalent to plywood in material, and strong enough to hold tapping screws. ) |
| Chemical Resistance | Resistive to formalin solvent and iodine liquid (disinfectant) |
| Dust/Water Protection | IP64 |
| Operating Temperature | -20 °C to +60 °C (-4 °F to 140 °F) |
| Finish | Panel: Allory-coated ABS resin Enclosure: ABS resin Punching net: Stainless steel |
| Dimensions | Ø139 x 104.5 (D) mm |
| Weight | 550 g |
| Included Accessories | Packing (Material: Silicon rubber) x 1, Paper pattern x 1, Ceiling mounting tapping screws (Material: Stainless steel) x 4 |
