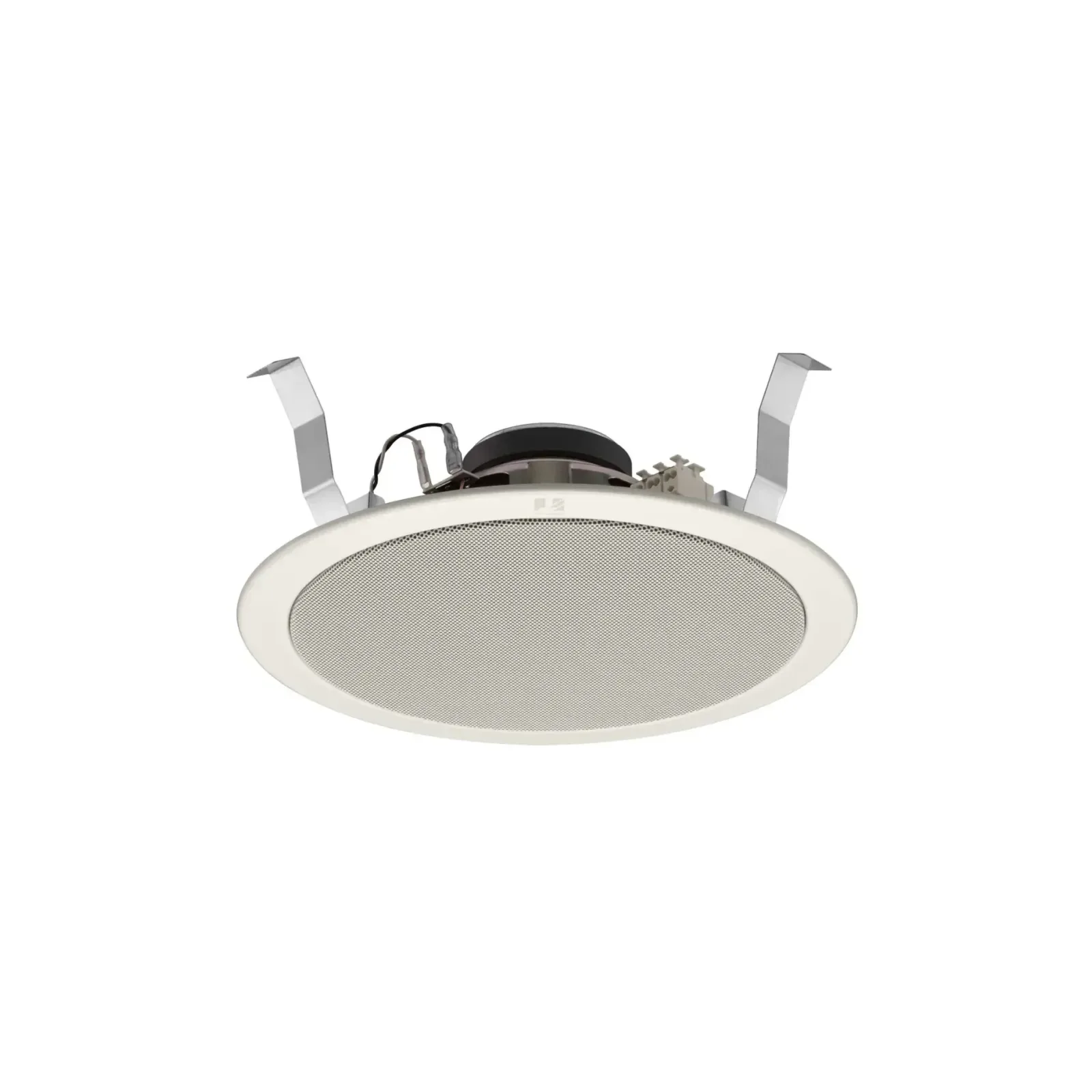

View larger image of TOA PC-2869 — official product photo
14 attributes
| Attribute | Value |
|---|---|
| Model | PC-2869 |
| Rated Input | 6 W (100 V line), 3 W (70 V line) |
| Rated Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) |
| Sensitivity | 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) |
| Frequency Response | 40 Hz - 20 kHz (peak -20 dB) |
| Speaker Component | 20 cm (8) double cone-type |
| Mounting Hole | Mounting hole: Φ250±3 mm (Φ9.84±0.12") Ceiling thickness: 5 - 25 mm (0.2 - 0.98") |
| Speaker Mounting Method | Spring clamp |
| Cable Requirements | 600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: Φ0.8 - Φ1.6 mm (equivalent to AWG 20 - 14) 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16) |
| Connection | Push-in connector (bridging terminal-2 branch type) |
| Finish | Baffle: Steel plate, white (RAL 9016 equivalent), paint Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint |
| Dimensions | Φ280 x 92 (D) mm (Φ11.02 x 3.62") |
| Weight | 1.4 kg (3.09 lb) |
| Included Accessories | Paper pattern …1 |
