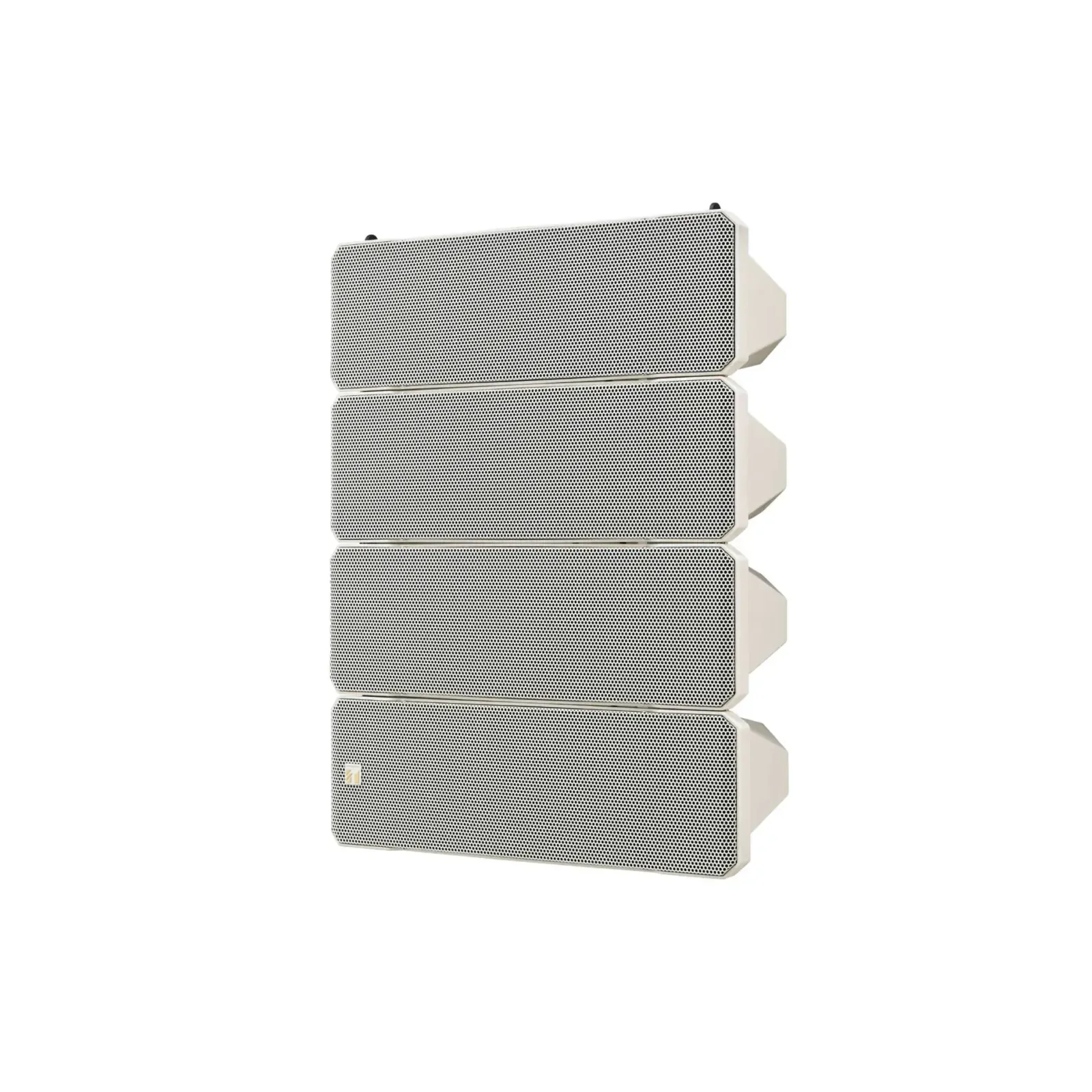

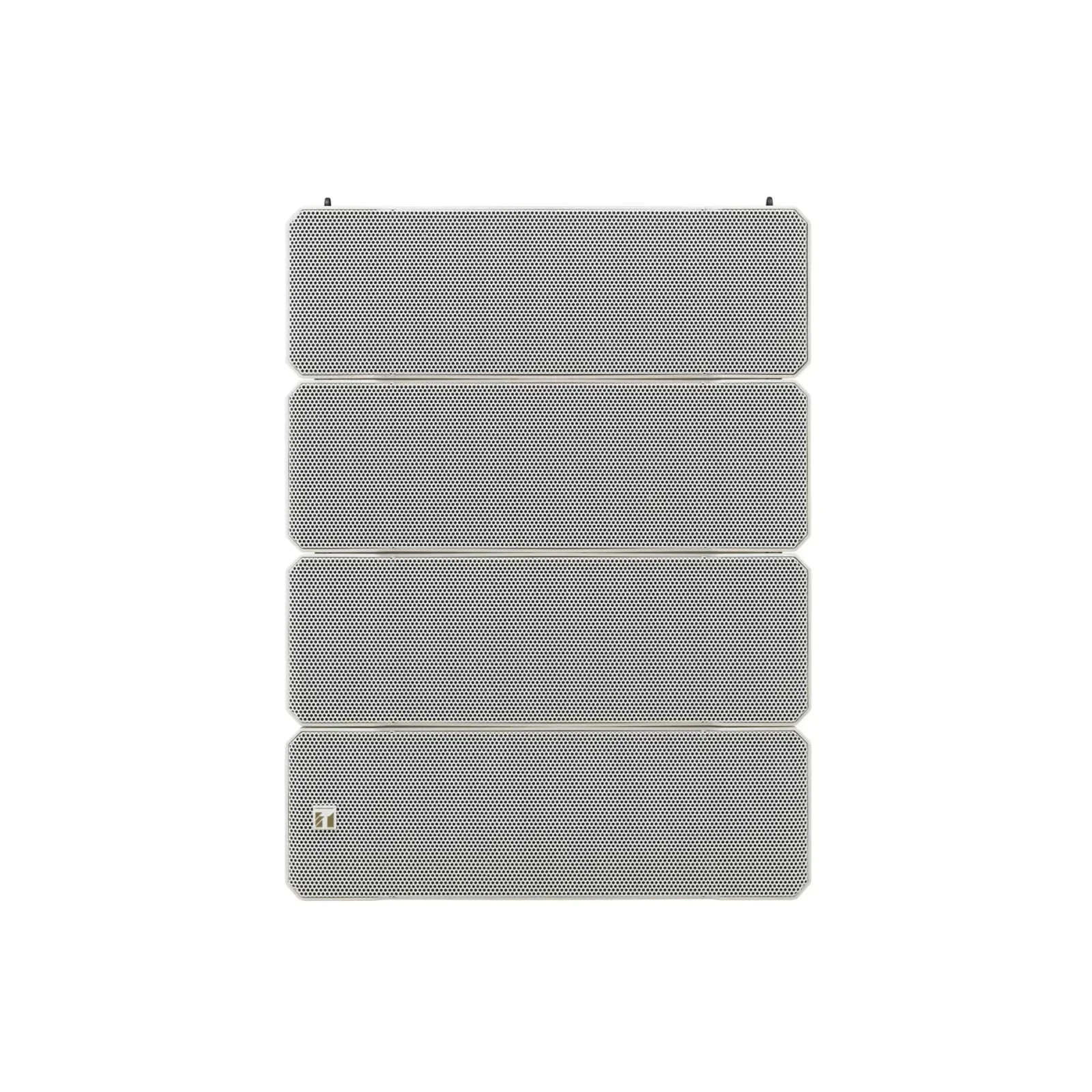

View larger image of TOA HX-7W-WP — official product photo
17 attributes
| Attribute | Value |
|---|---|
| Model | HX-7W-WP |
| Enclosure | Sealed type |
| Power Handling | Continuous pink noise: 250 W (IEC60268-5: 350 W) Continuous program: 750 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 100 dB (1 W, 1 m） |
| Frequency Response | 105 Hz – 20 kHz |
| Crossover Frequency | 1.7 kHz |
| Directivity Angle | Horizontal: 100º Vertical : Depending on directivity angle mode |
| Speaker Component | Low frequency: 13 cm (5.5") cone-type x 8 High frequency: Wave front control horn with compression driver x 4 |
| Input Terminal | M4 screw terminal, distance between barriers: 9 mm (0.35") |
| Water Protection | IPX4 (Install with every speaker module tilted downward from the horizontal.) |
| Installation Environment | Indoor installation, under-eave installation (*1) |
| Finish | Enclosure: Polypropylene, white Punched net: Surface-treated steel plate, white, rust proof coating |
| Dimensions | 497 (W) x 664 (H) x 274 (D) mm (19.57" x 26.14" x 10.79") |
| Weight | 30 kg (66.14 lb) |
| Included Accessories | Terminal cover x1, Terminal cover mounting screw x 4, Rubber packing x 1 |
| Optional Accessories | Matching transformer: MT-200 (*2) Matching transformer adapter: HY-MT7 Speaker mounting bracket: HY-TM7W-WP, HY-MS7W-WP, HY-60DW-WP, HY-CN7W-WP |
