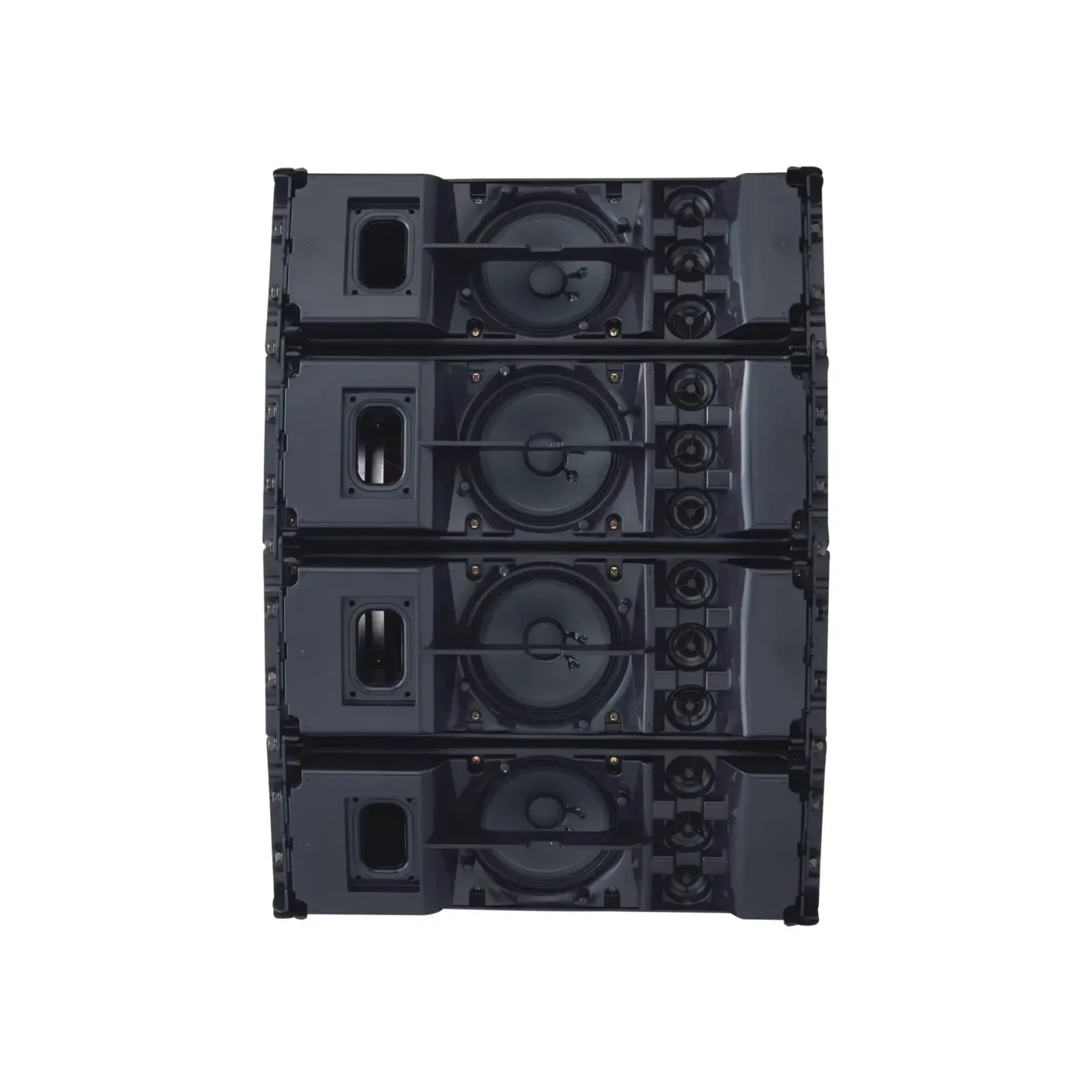

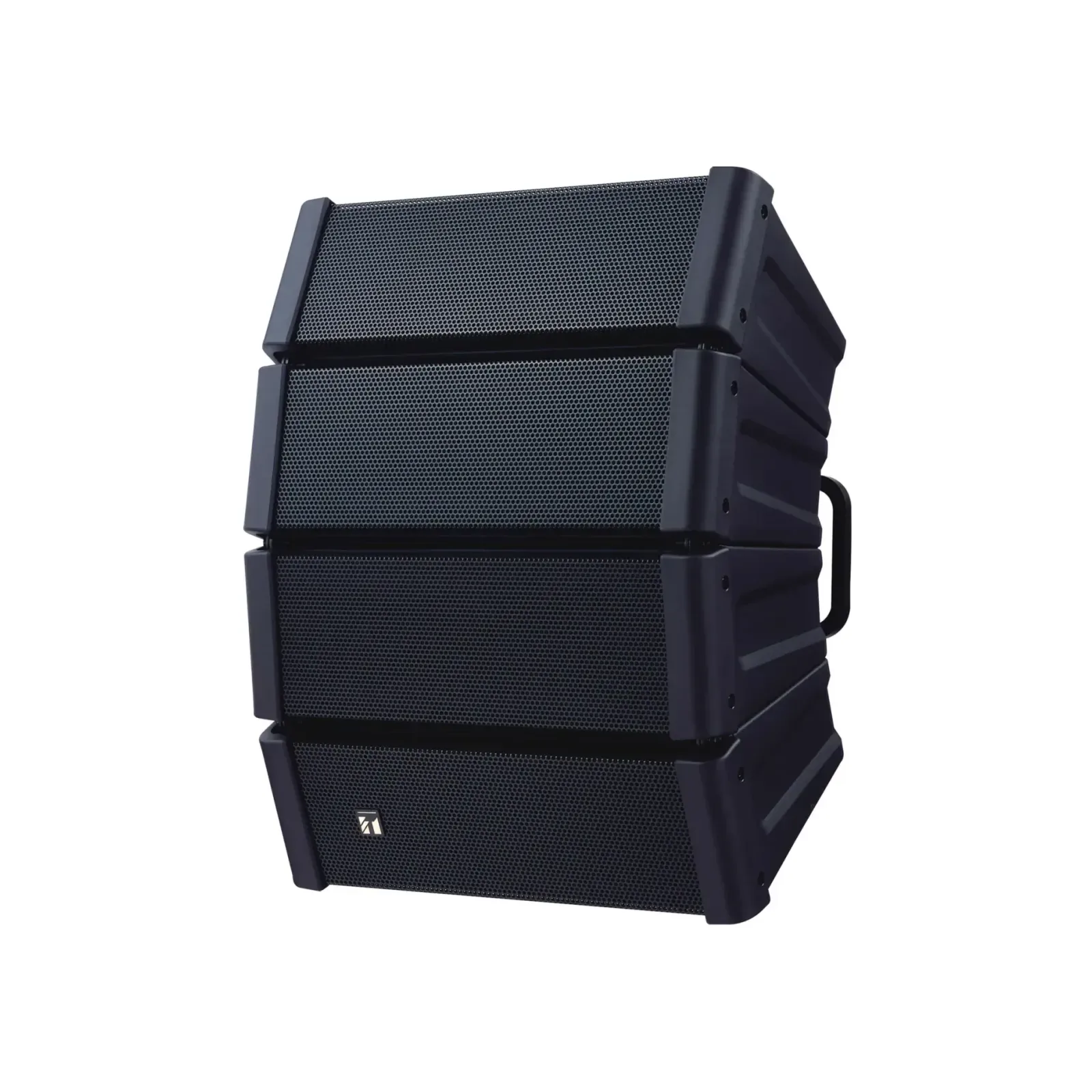

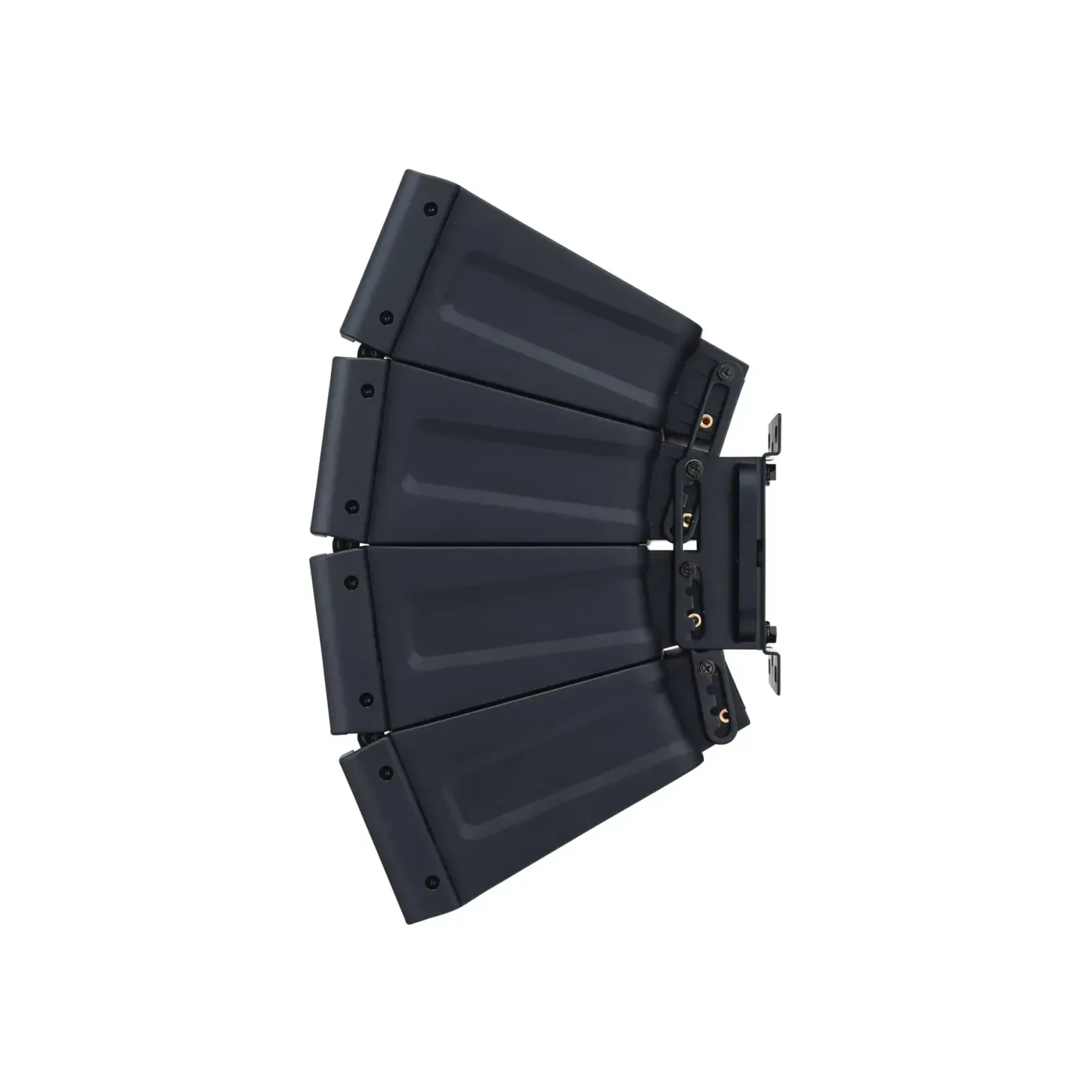

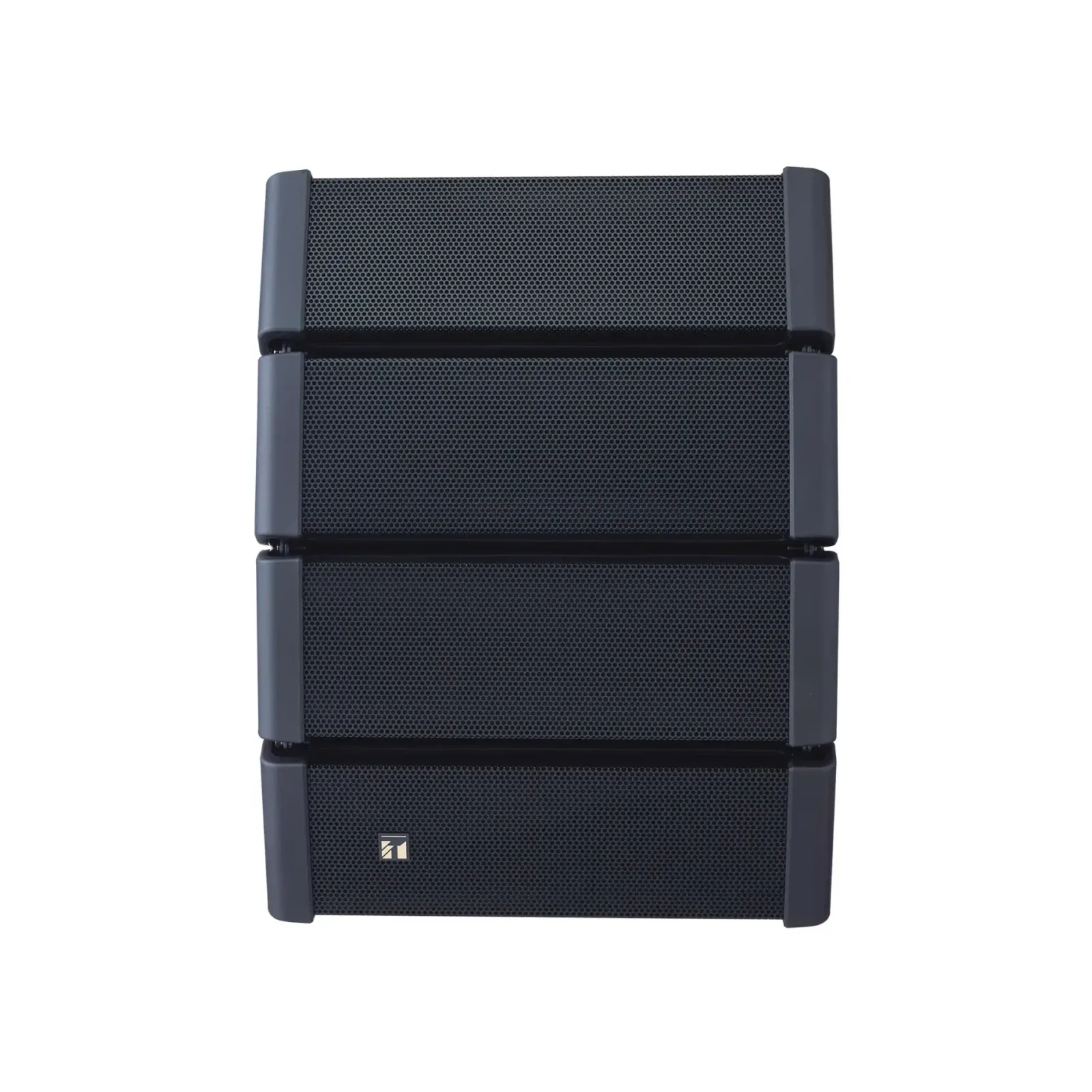

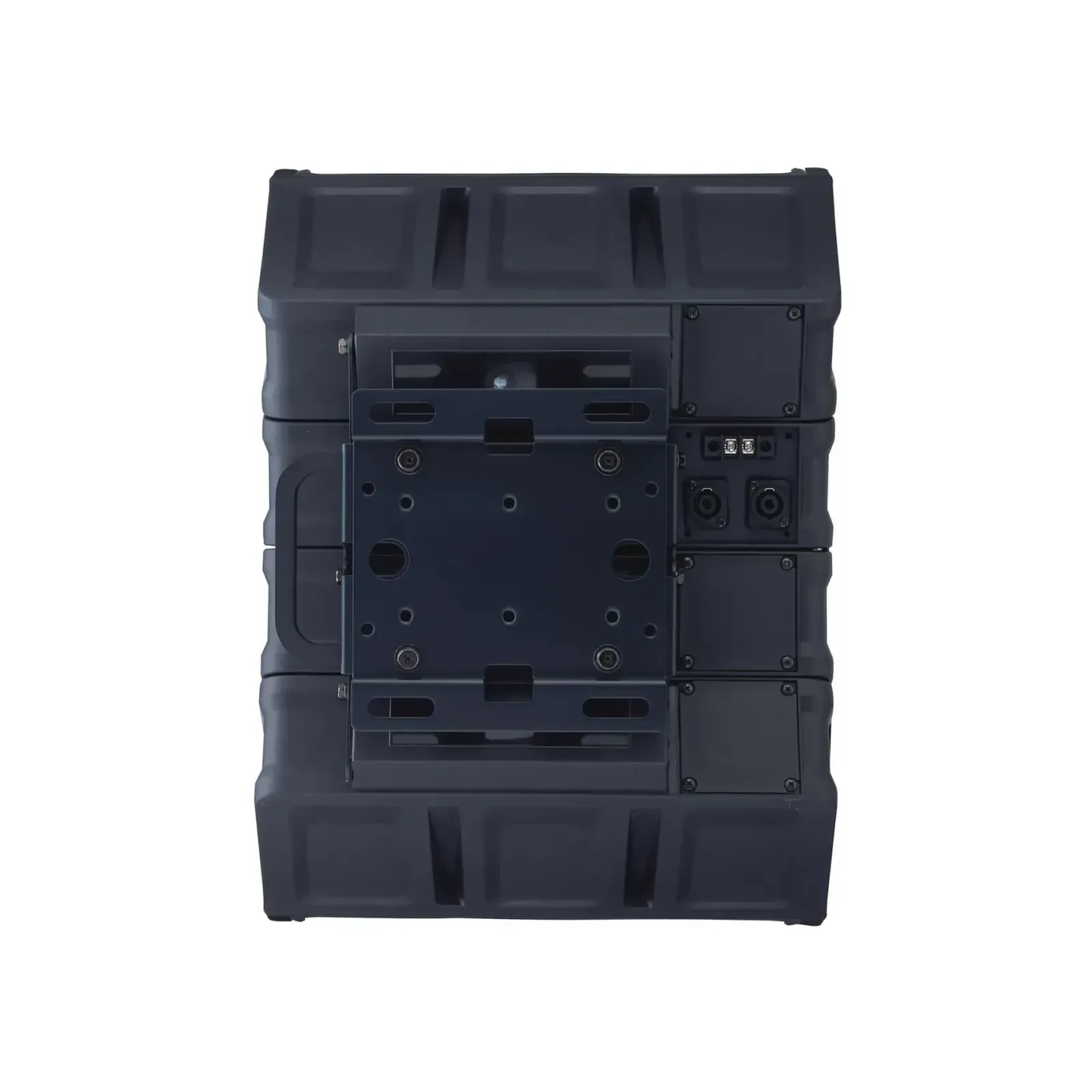

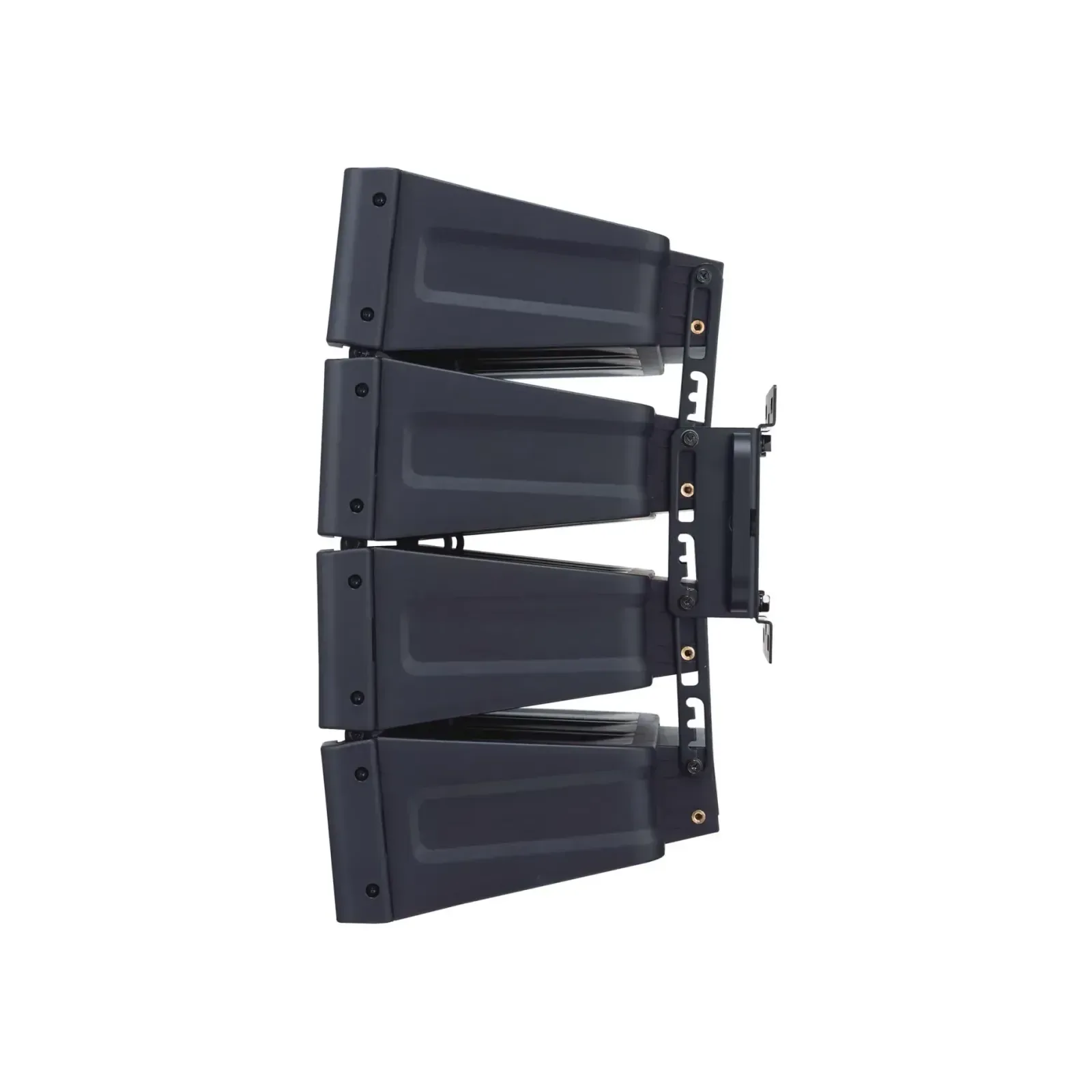

View larger image of TOA HX-5B — official product photo
15 attributes
| Attribute | Value |
|---|---|
| Model | HX-5B |
| Enclosure | Bass-reflex type |
| Power Consumption | Continuous pink noise: 200 W, Continuous program: 600 W |
| Impedance | 8 Ω |
| Sensitivity | 96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode) |
| Frequency Response | 70 Hz - 20 kHz (-10 dB) (60° mode), 75 Hz - 20 kHz (-10 dB) (45° mode), 80 Hz - 20 kHz (-10 dB) (30° mode), 85 Hz - 20 kHz (-10 dB) (15° mode) |
| Crossover Frequency | 4 kHz |
| Directivity Angle | Horizontal: 100° (over 2,000 Hz) Vertical: 60° (over 800 Hz), 45° (over 1.2 kHz), 30° (over 1.6 kHz), 15° (over 3.2 kHz) variabe |
| Speaker Component | Low frequency: 12 cm cone-type x 4, High frequency: Balanced dome-type x 12 |
| Input Terminal | Speakon NL4MPXX x 2 and M4 screw terminal |
| Finish | Enclosure: Polypropylene, black Punched net: Surface-treated steel plate, black |
| Dimensions | 408 (W) x 546 (H) x 342 (D) mm |
| Weight | 16 kg |
| Included Accessories | Hanging bracket x 2, Hex. wrench x 1 |
| Optional Accessories | Matching transformer : MT-200 Speaker mounting bracket: HY-PF1B, HY-CW1B, HY-WM1B, HY-WM2B, HY-CN1B Speaker stand adapter: HY-ST1 |
