Features

High power handling

Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle

Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds

0° mode facilitates the most effective line array set-up

Easily adjustable vertical dispersion angle

Attribute

Value

Model

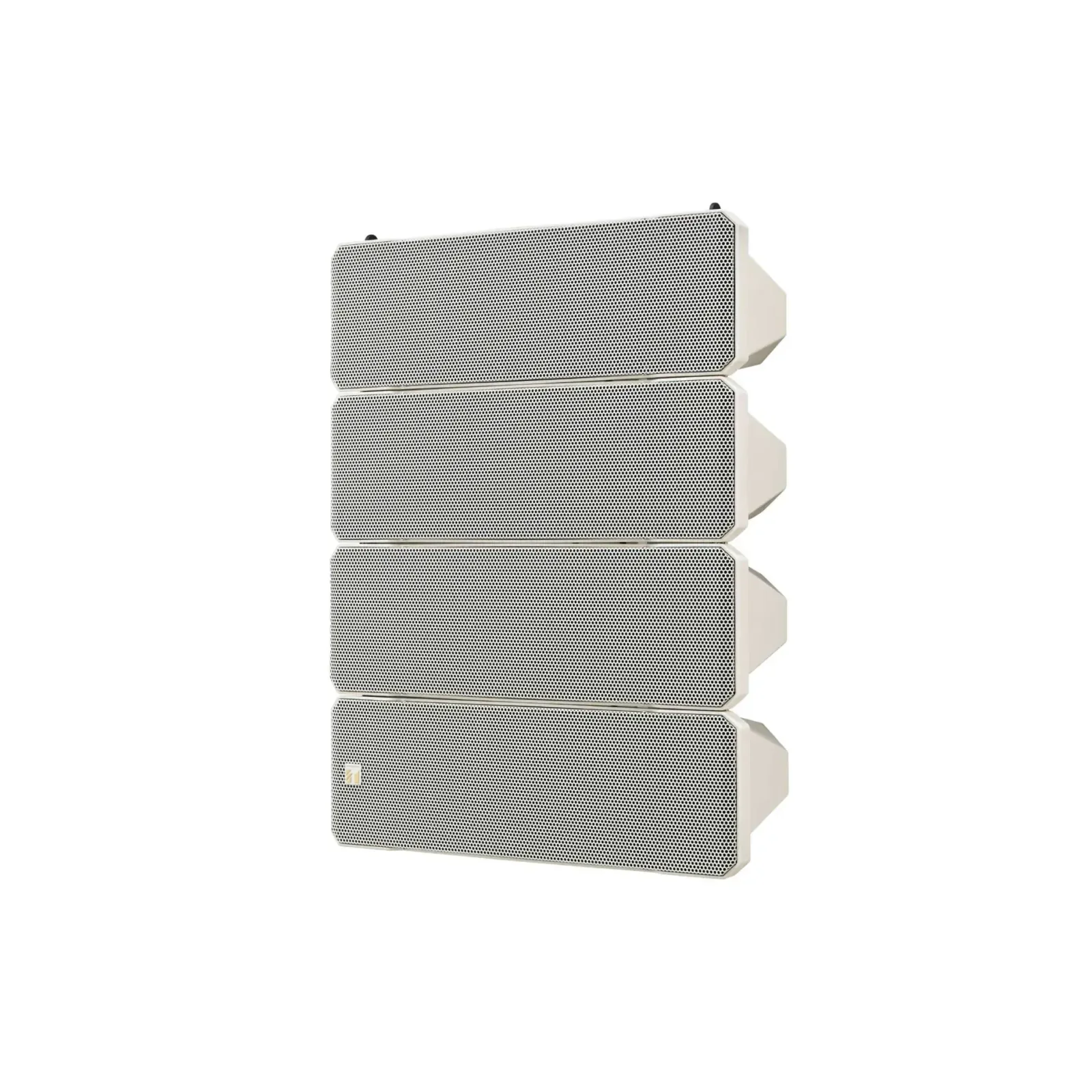

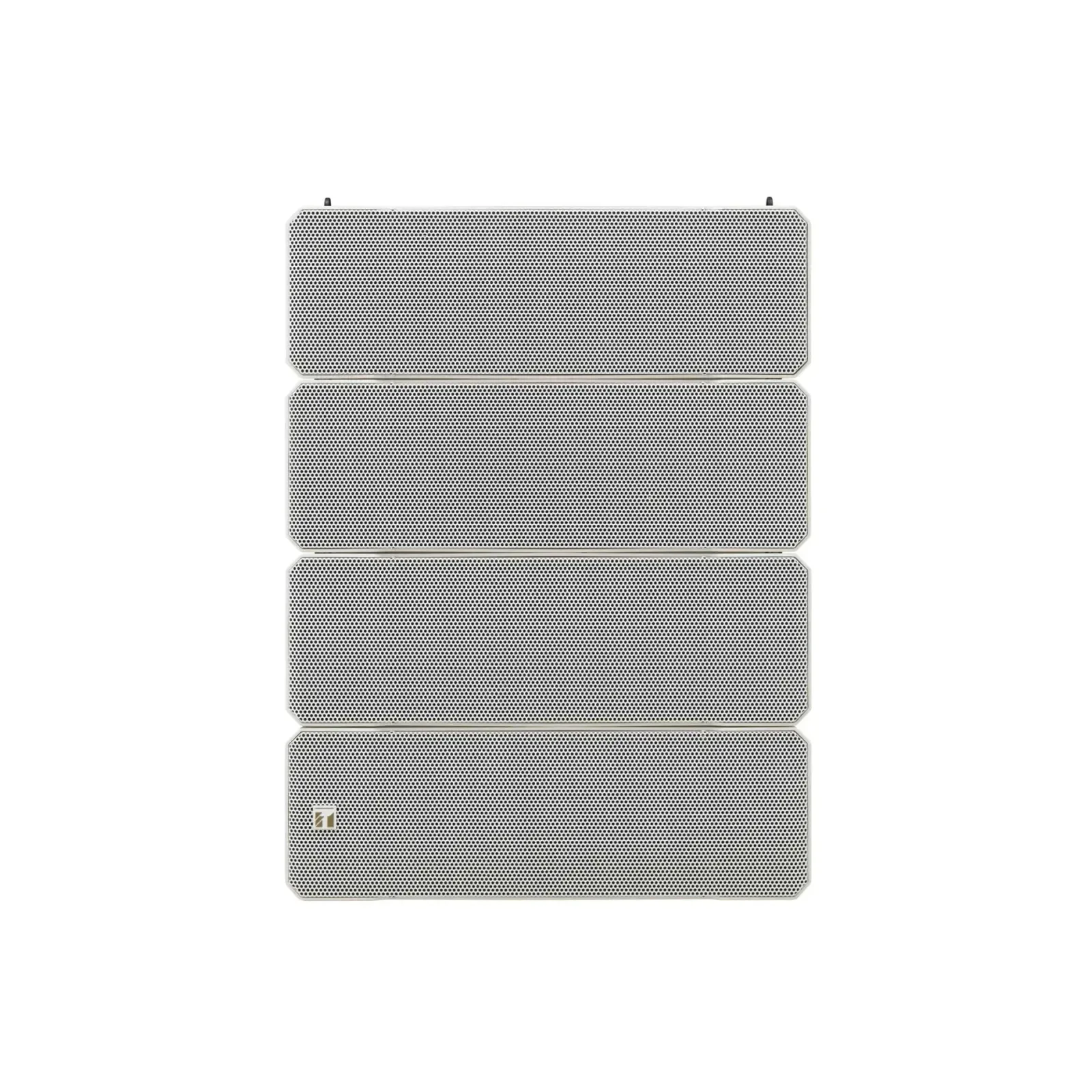

HX-7W

Enclosure

Bass-reflex type

Power Handling

Continuous pink noise: 250 W (IEC60268-5: 350 W) Continuous program: 750 W

Rated Impedance

8 Ω

Sensitivity

100 dB (1 W, 1 m)

Frequency Response

75 Hz – 20 kHz

Crossover Frequency

1.7 kHz

Directivity Angle

Horizontal: 100º Vertical : Depending on directivity angle mode

Speaker Component

Low frequency: 13 cm (5.5") cone-type x 8 High frequency: Wave front control horn with compression driver x 4

Input Terminal

Speakon NL4MPXX x 2 and M4 screw terminal, distance between barriers: 9 mm (0.35")

Finish

Enclosure: Polypropylene, white Punched net: Surface-treated steel plate, white, paint Hanging bracket: Steel plate, t3.0, white, paint

Dimensions

497 (W) x 664 (H) x 274 (D) mm (19.57" x 26.14" x 10.79")

Weight

30 kg (66.14 lb)

Included Accessories

Hanging bracket L, R (L and R are symmetrical to each other.) x 1 each, Hanging bracket mounting bolt x 4
