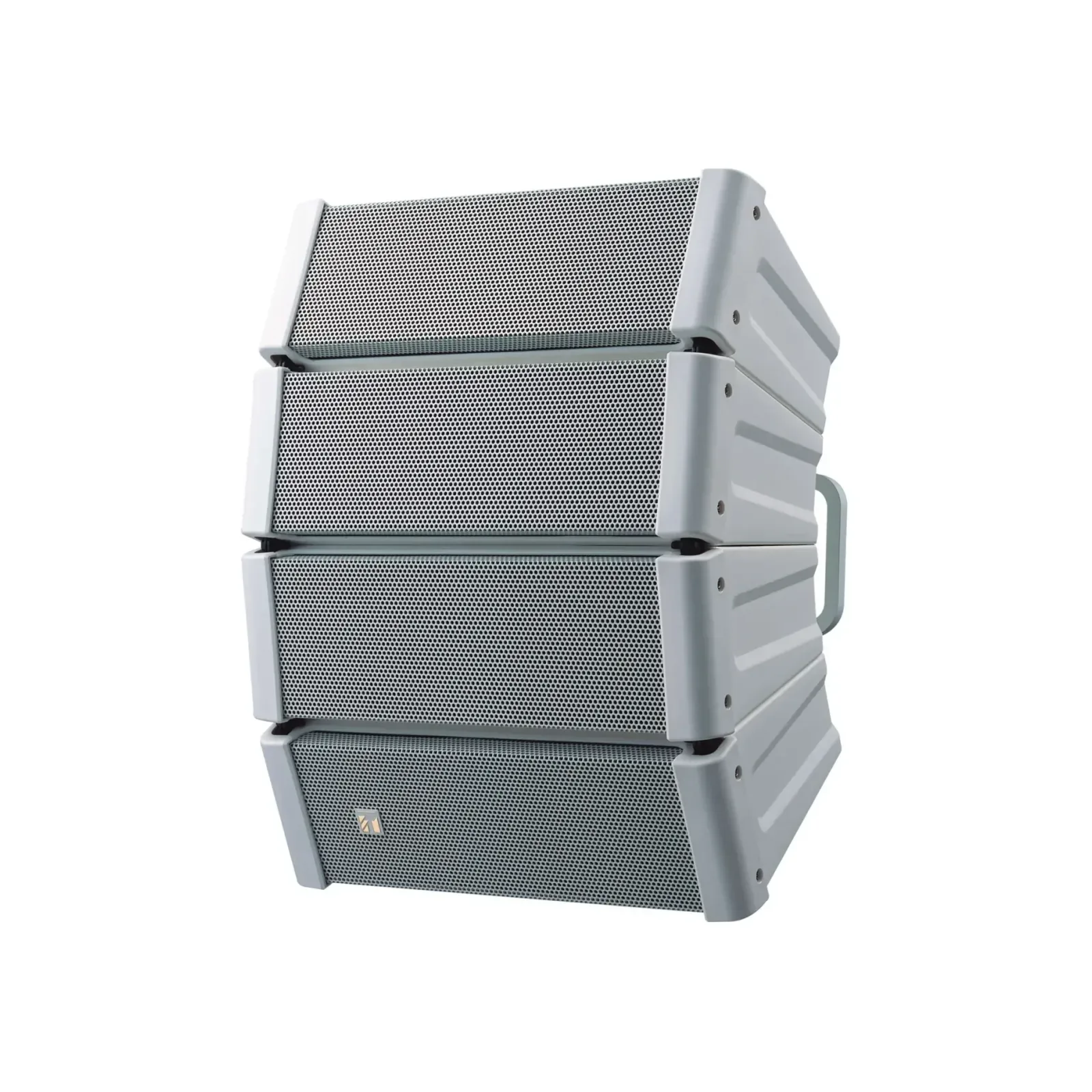

View larger image of TOA HX-5W-WP — official product photo
18 attributes
| Attribute | Value |
|---|---|
| Model | HX-5W-WP |
| Enclosure | Sealed type |
| Power Consumption | Continuous pink noise: 200 W, Continuous program: 600 W |
| Impedance | 8 Ω |
| Sensitivity | 96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode) |
| Frequency Response | 95 Hz - 20 kHz (-10 dB) (60° mode), 100 Hz- 20 kHz (-10 dB) (45° mode), 105 Hz - 20 kHz (-10 dB) (30° mode), 110 Hz - 20 kHz (-10 dB) (15° mode) |
| Crossover Frequency | 4 kHz |
| Directivity Angle | Horizontal: 100° (over 2,000 Hz) Vertical: 60° (over 800 Hz), 45° (over 1.2 kHz), 30° (over 1.6 kHz), 15° (over 3.2 kHz) variabe |
| Speaker Component | Low frequency: 12 cm cone-type x 4, High frequency: Balanced dome-type x 12 |
| Speaker Cable | 2-core cabtyre cord with diameter of 6 mm |
| Dust/Water Protection | IPX4 (Install with the every speaker module downward.) |
| Installation Environment | Indoor installation, under-eave installation(*1) |
| Operating Temperature | -15 °C to +50 °C |
| Finish | Enclosure: Polypropylene, white Punched net: Surface-treated steel plate, white, rust proof coating |
| Dimensions | 408 (W) x 546 (H) x 342 (D) mm |
| Weight | 16 kg |
| Included Accessories | Hanging bracket x 2, Hex. wrench x 1 |
| Optional Accessories | Matching transformer : MT-200 Speaker mounting bracket: HY-PF1WP, HY-CW1WP, HY-WM1WP, HY-WM2WP, HY-CN1B-WP |
