View larger image of TOA GS-302 — official product photo
15 attributes
| Attribute | Value |
|---|---|
| Model | GS-302 |
| Enclosure | Sealed type |
| Rated Input | 30 W (100 V line), 15 W (70 V line) |
| Rated Impedance | 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W) |
| Sensitivity | 87 dB (1 W, 1 m) |
| Frequency Response | 100 Hz - 8 kHz |
| Speaker Component | 12 cm splash-proof cone-type |
| Input Terminal | Push-in terminal |
| Cable Requirements | Solid copper wire: Ø0.8 - Ø1.6 mm, Stranded cooper wire: 0.75 - 1.25 mm² |
| Water Protection | IPX4 |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Finish | Top cover and base: FRP resin, dark gray, semi-gloss, paint Speaker panel: ABS resin, dark gray, semi-gloss, paint Legs: Aluminum, dark gray, semi-gloss, paint |
| Dimensions | Ø270 x 335 (H) mm |
| Weight | 2.4 kg |
| Included Accessories | TOA label …2 |
JBL Professional

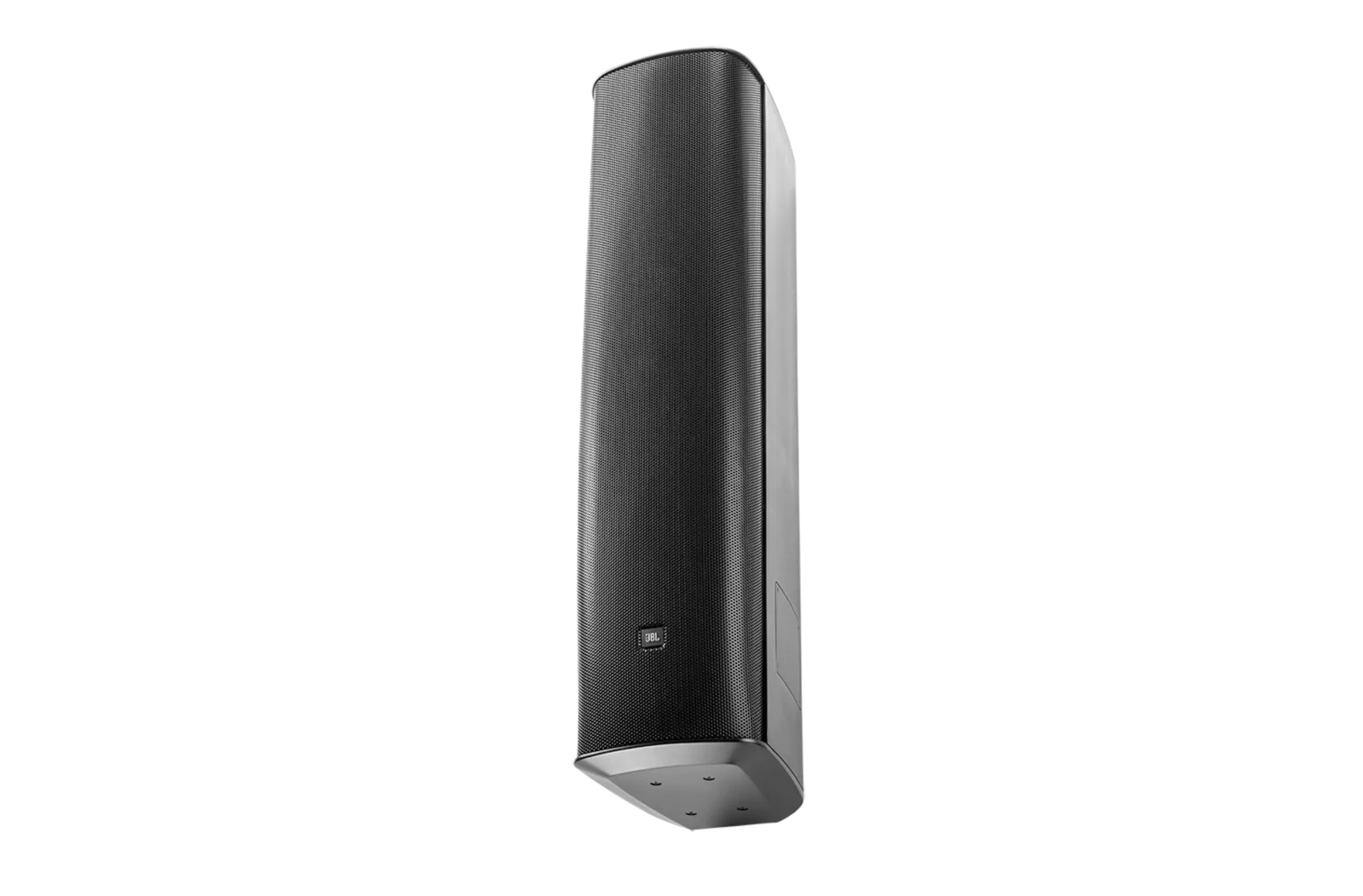

JBL CBT 1000
