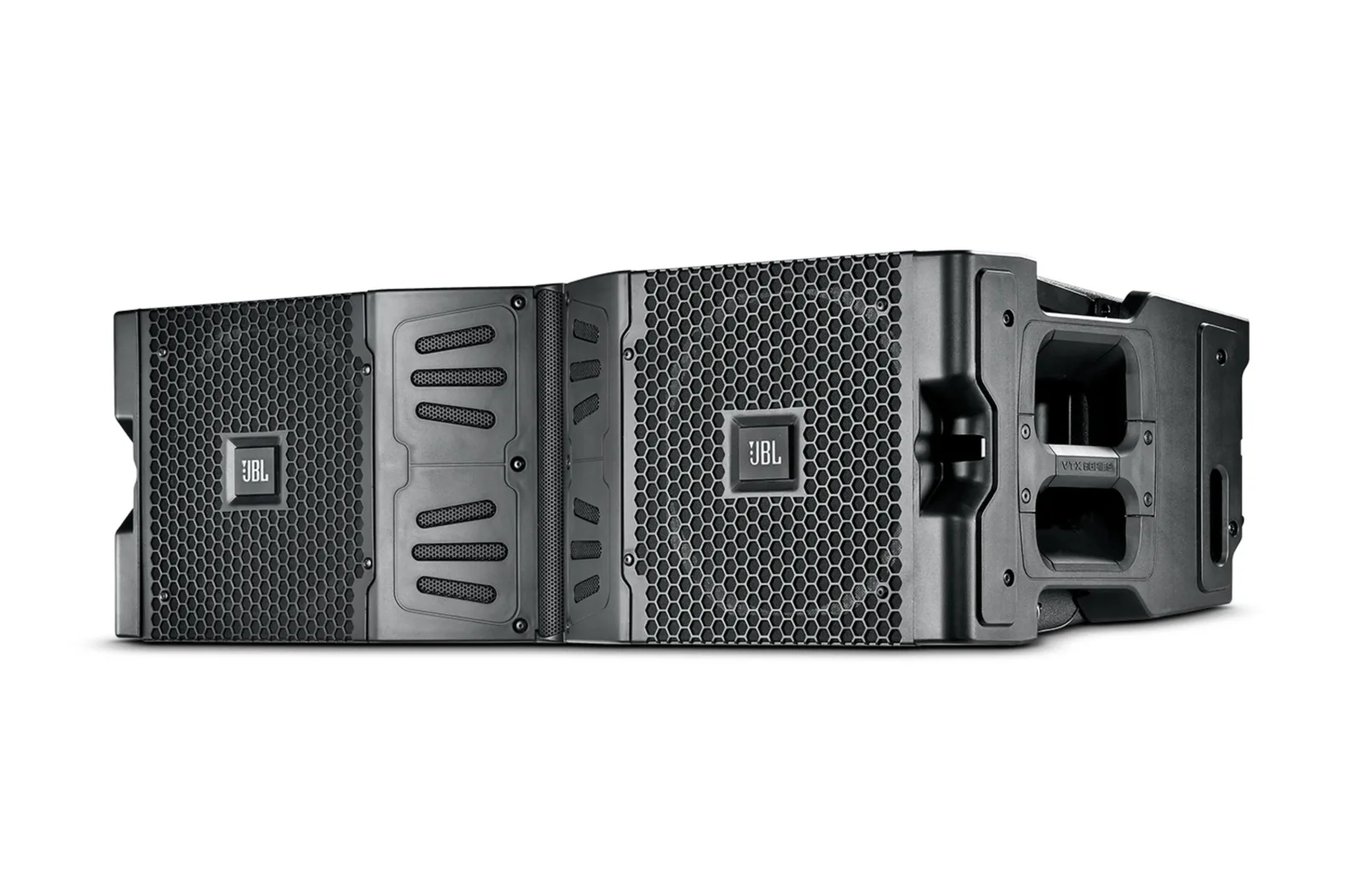

JBL VTX V20 Three-Way High Directivity Line Array Element | Sai Enterprises AV Solutions

Features

Differential Drive Technology
4th generation advanced high frequency waveguide
Small Format Version of Patented D2 Dual Compression Driver

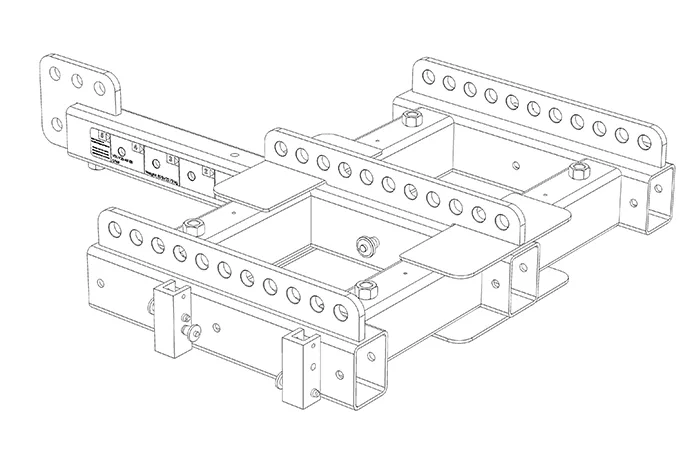

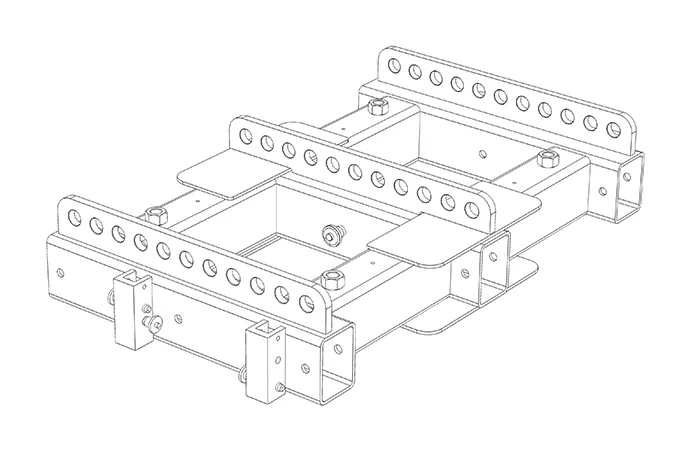

ASM Suspension System
V5 System Integration

Specifications

14 attributes

Attribute	Value
Model	VTX V20
System Type	3-Way High Directivity Line Array Element with D2 Technology
Frequency Range (-10dB)	60 Hz – 20 kHz (Preset: VTX V20)
Horizontal Coverage (-6 dB)	105 degrees nominal (300 Hz - 16 kHz)
Maximum Peak Output	139 dB (Preset: VTX V20)
System Amplification	Crown Audio I-Tech HD
Nominal Impedance	Active: LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms Passive: LF: 16 ohms MHF: 8 ohms

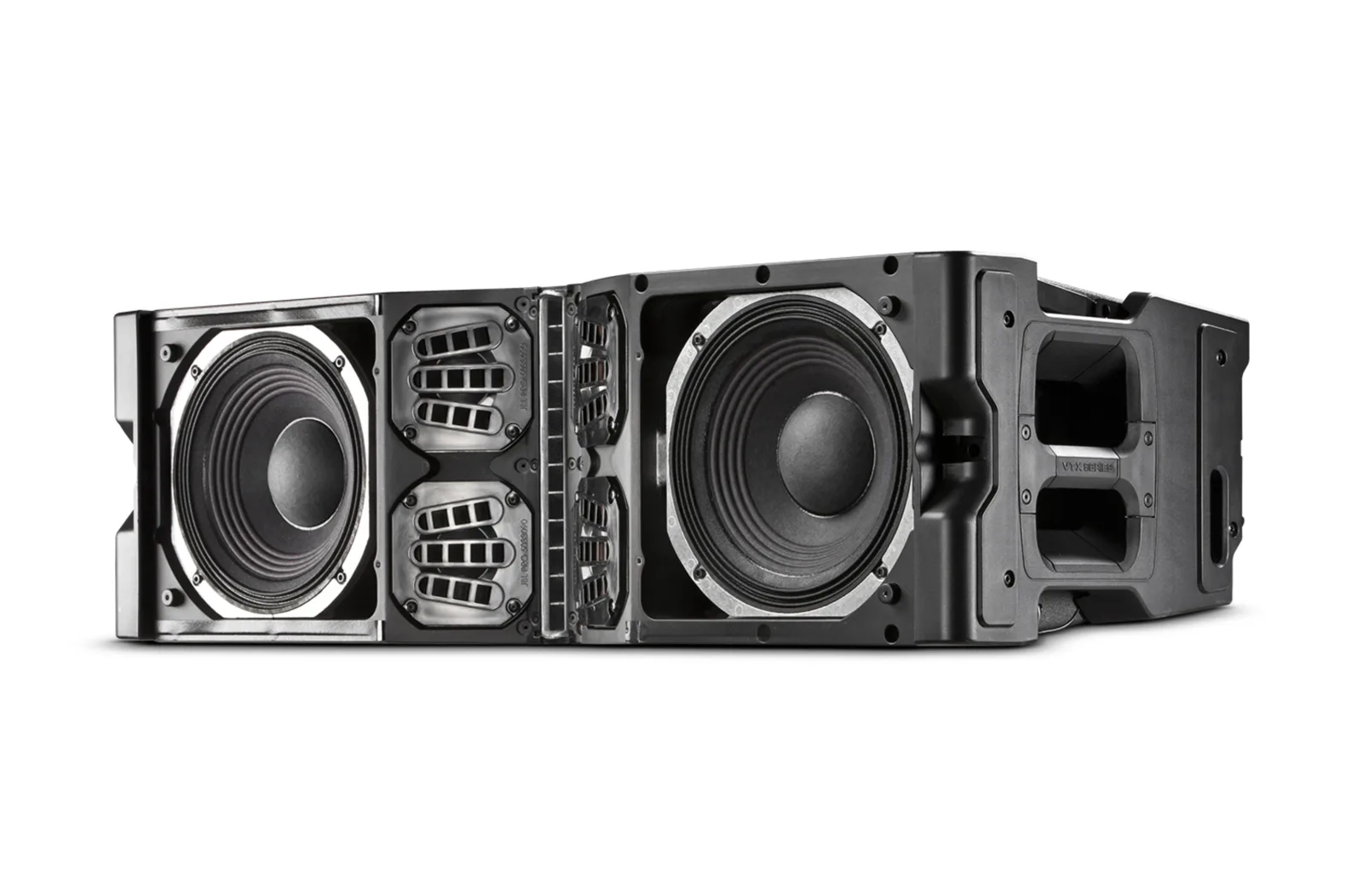

LF Driver	(2) JBL 2261H 10-inch Neodymium Differential Drive woofer
MF Driver	(4) JBL 2164H 5-inch Neodymium mid-range woofer
HF Driver	(3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive
Enclosure	Cast aluminum front baffles and HF waveguide, Finnish birch plywood; black DuraFlex finish, integral recessed handles
Inter-enclosure Angle	0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5
Dimensions (H x W x D)	280 mm x 911 mm x 402 mm 11 in x 35.9 in x 15.8 in
Net Weight (each)	40 kg (88 lbs)
