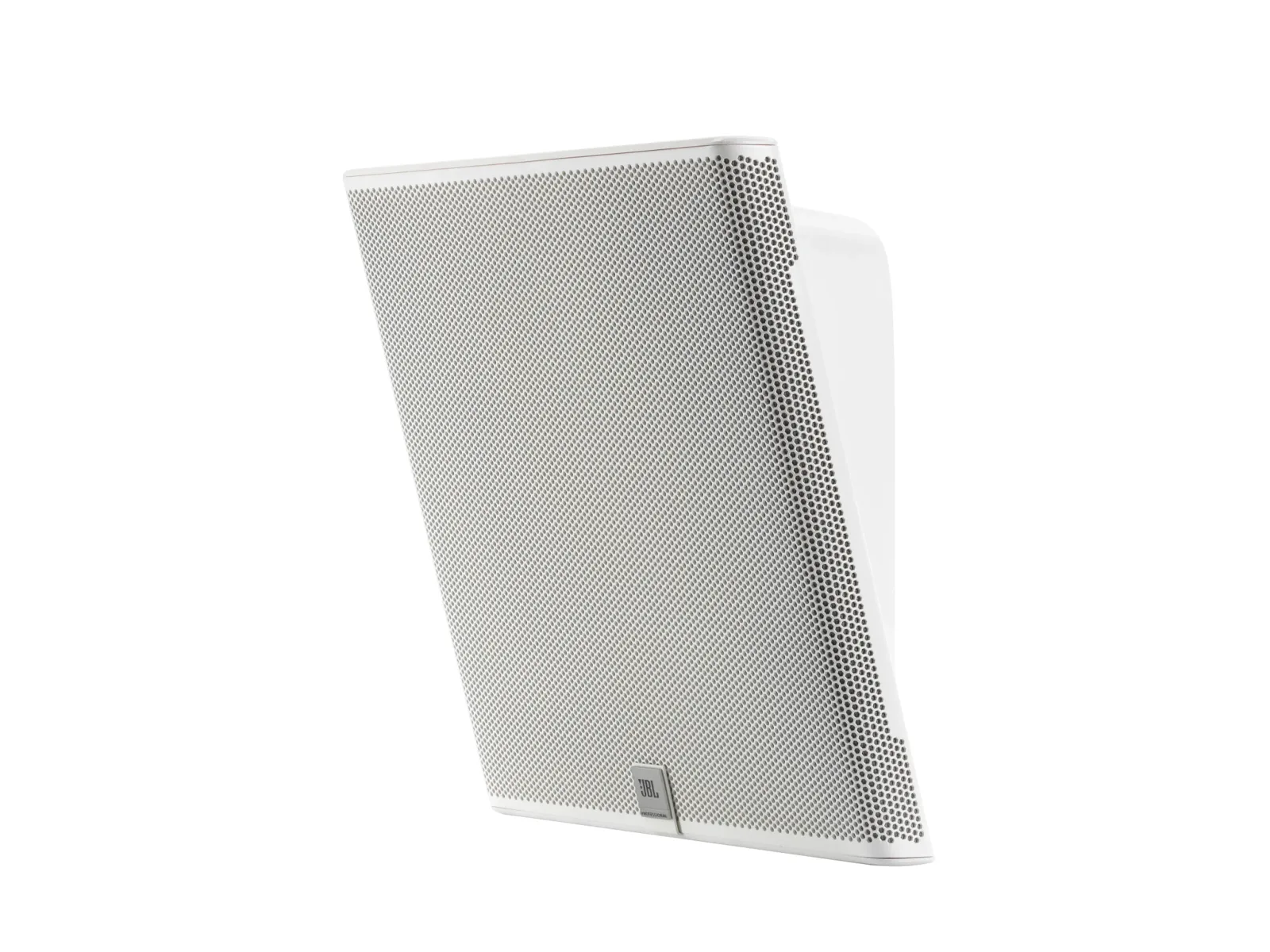

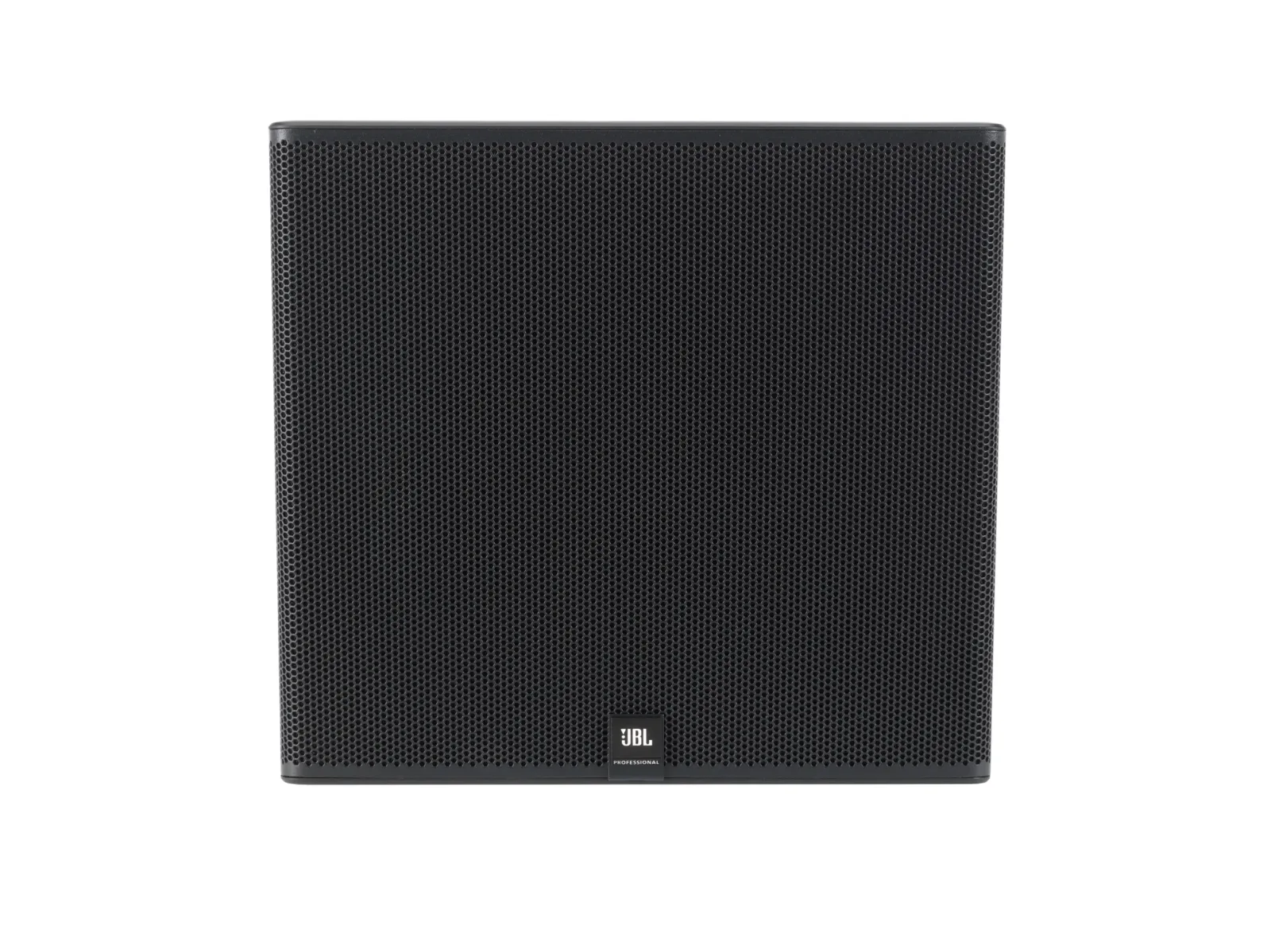

View larger image of JBL SLP14/T — official product photo
18 attributes
| Attribute | Value |
|---|---|
| Model | SLP14/T |
| Frequency Range (-10dB) | 70 Hz - 20 kHz (on wall) |
| Frequency Response (+/-3 dB) | 80 Hz - 18 kHz (on wall) |
| Power Rating | 100W Continuous Program (2 hrs) 50W (200W peak) Continous Pink Noise (2 hrs) 30W (120W peak) Continuous Pink Noise (100 hrs) |
| Sensitivity | 85 dB (60 Hz – 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 108 dB peak (102 dB continuous, 2 hr) @ 1m |
| Coverage Angle | 140°H x 120°V |
| Directivity Factor (Q) | 6.9 |
| Directivity Index (DI) | 8.4 dB |
| Nominal Impedance | 8Ω (at 8Ω tap setting) |
| Transformer Taps | 70V: 25 W, 12.5 W, 6.3 W, 3.2W 100V: 25 W, 12.5 W, 6.3 W |
| Driver | 120 mm (4.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton voice coil former, plus 20 mm (0.79 in) titanium dome tweeter with neodymium magnet with aluminum former. |
| Terminals | 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm) |
| Enclosure Material | Polycarbonate + ABS Fireproof, UL94V-0 flammability rated |
| Color | Available in black or white (-WH). Paintable. |
| Dimensions | 286mm W x 263mm H x H100mm D (11.3 x 10.4 x 3.9 in) |
| Net Weight | 2.8kg (6.2 lbs) |
| Included Accessories | Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. |
