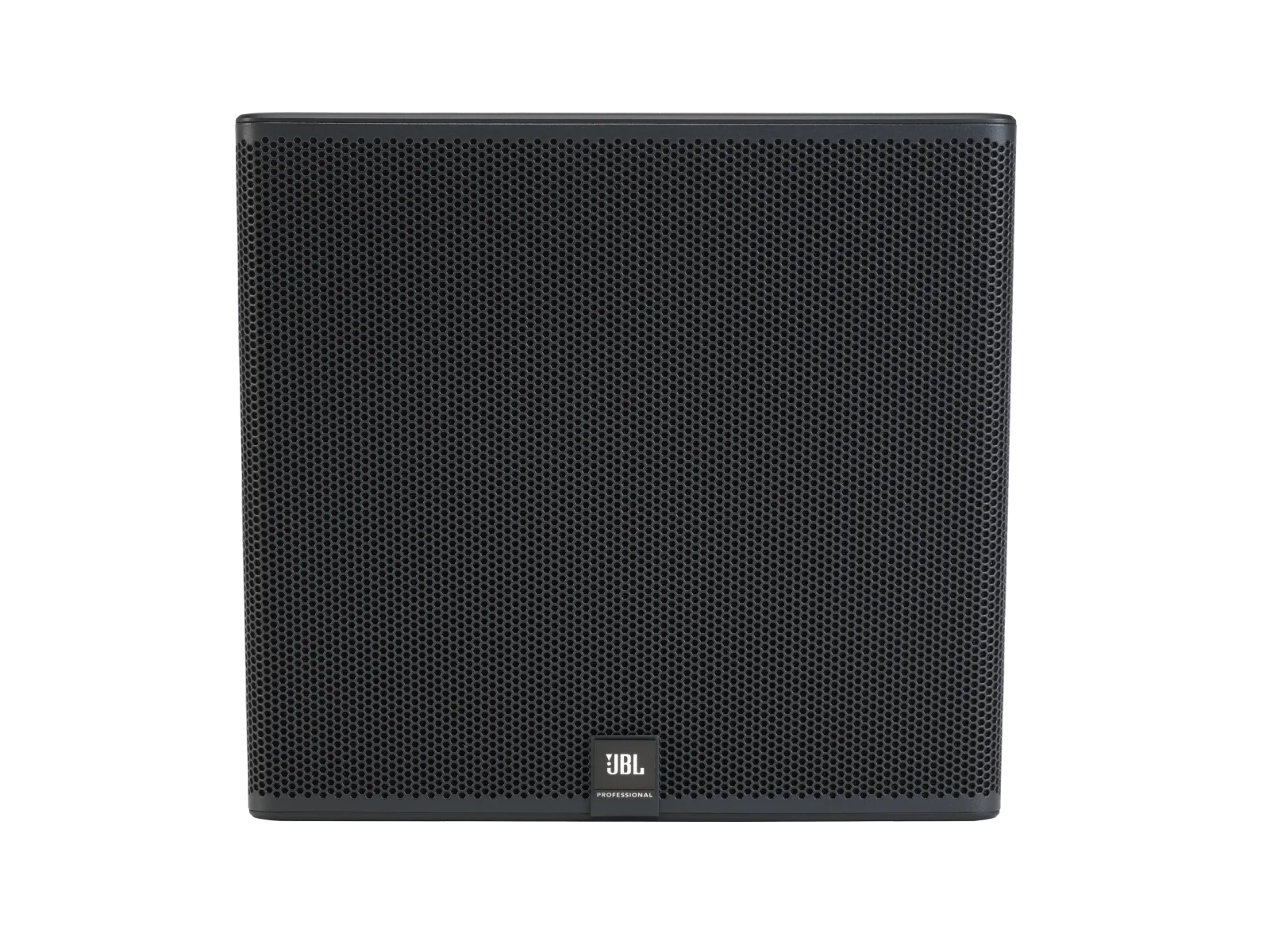

View larger image of JBL SLP12/T — official product photo
18 attributes
| Attribute | Value |
|---|---|
| Model | SLP12/T |
| Frequency Range (-10dB) | 74 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 91 Hz - 18 kHz |
| Power Rating | 80W Continuous Program (2 hrs) 40W (160W peak) Continous Pink Noise (2 hrs) 20W (80W peak) Continuous Pink Noise (100 hrs) |
| Sensitivity | 84 dB (80 Hz – 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 106 dB peak (100 dB continuous, 2 hr) at 1m |
| Coverage Angle | 120°H x 120°V |
| Directivity Factor (Q) | 7.5 |
| Directivity Index (DI) | 8.8 dB |
| Nominal Impedance | 8Ω (at 8Ω tap setting) |
| Transformer Taps | 70V: 15 W, 7.5 W, 3.8 W, 1.9W 100V: 15 W, 7.5W, 3.8W |
| Driver | 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton voice coil former |
| Terminals | 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Black or white |
| Dimensions | 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in) |
| Net Weight | 1.9 kg (4.2 lbs) |
| Included Accessories | Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. |
